3. Operating Interface

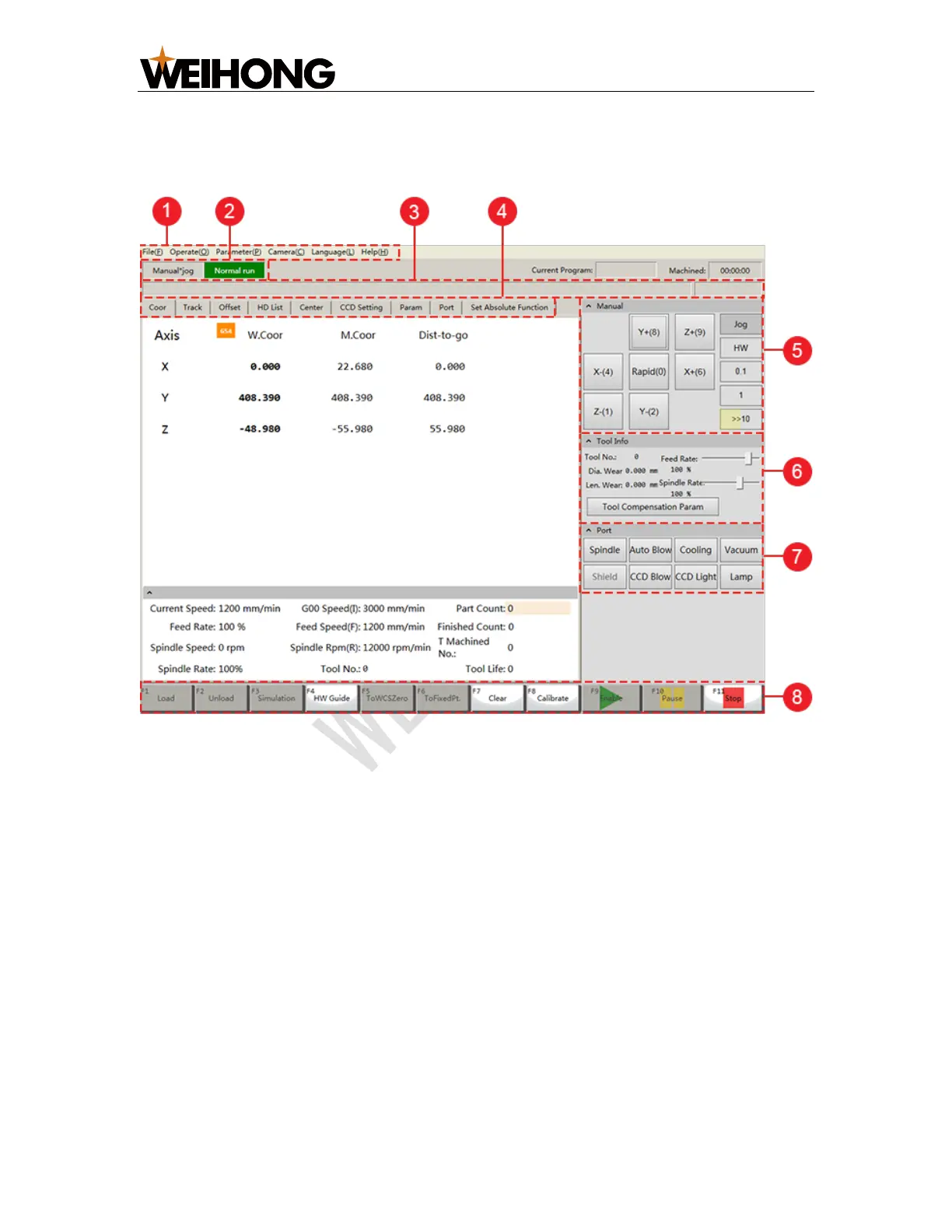

The operating interface of NcStudio V12 CCD Control System is as follows:
1. Menu bar
2. Status bar
3. Machine control bar
4. Function windows
5. Manual control area
6. Tool information area
7. Port control area
8. Operating buttons
