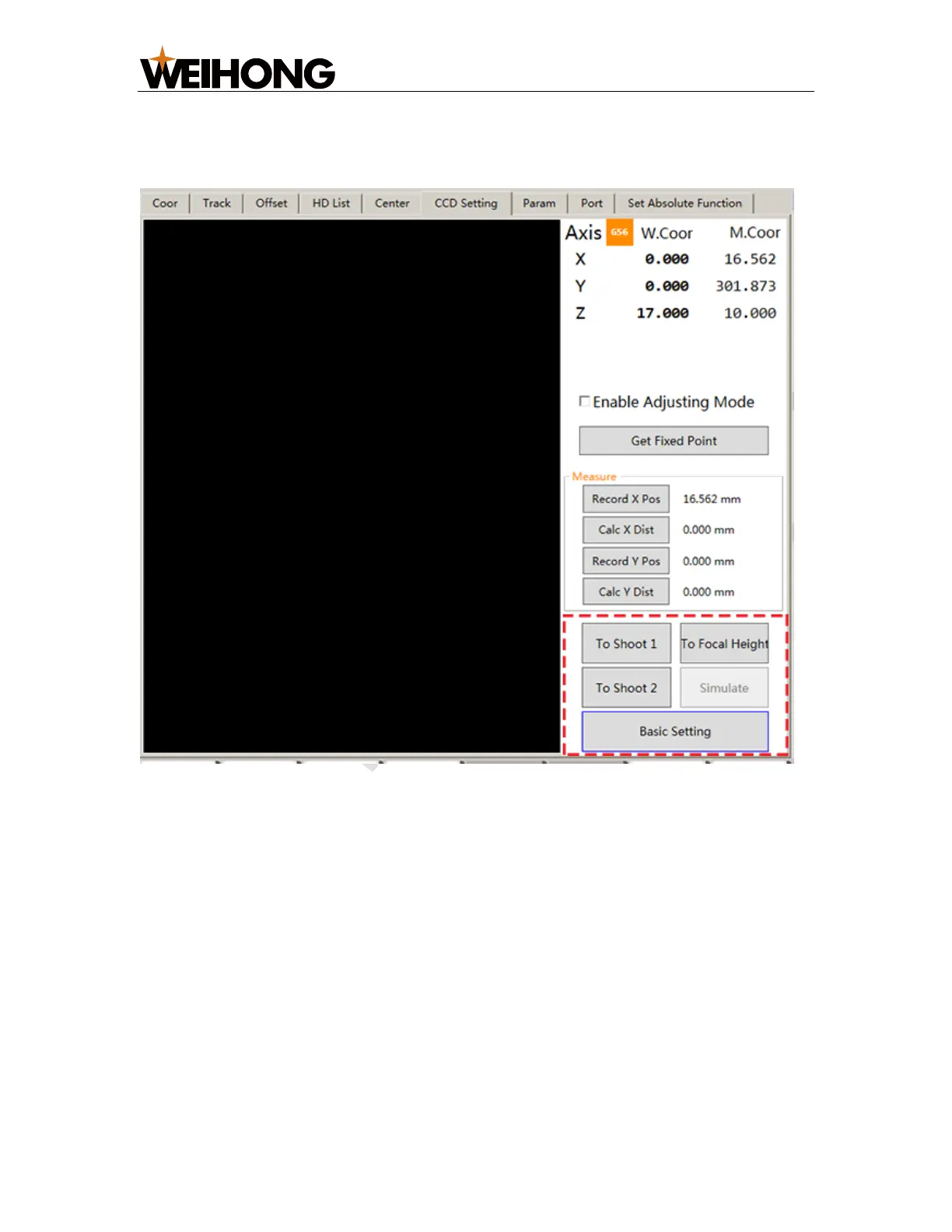

3.1.6. CCD Setting Window
In this window, you can execute operations of CCD setting:
• To Shoot
CCD moves to the related shooting position.
• To Focal Height
Spindle moves to the clearest position of the picture.
• Simulate
Spindle moves to the clearest position of the picture and then moves along tool
path.
No actual machining occurs.
