上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
39 / 47
– Single compensation
With array machining enabled, the workpiece offset compensation of
each workpiece needs to be individually set.
When lead screw of the machine results in the damage of a certain
workpiece, single compensation is required.
5. Set related parameters for overall compensation or single compensation.
4.4.7. Set Workpiece Size Compensation
During machining, if the size of the machined workpiece is not the same as the ideal
size, setting workpiece size compensation is required.
To set workpiece size compensation, do the following:
1. Switch to Craft page and check Setting ON.

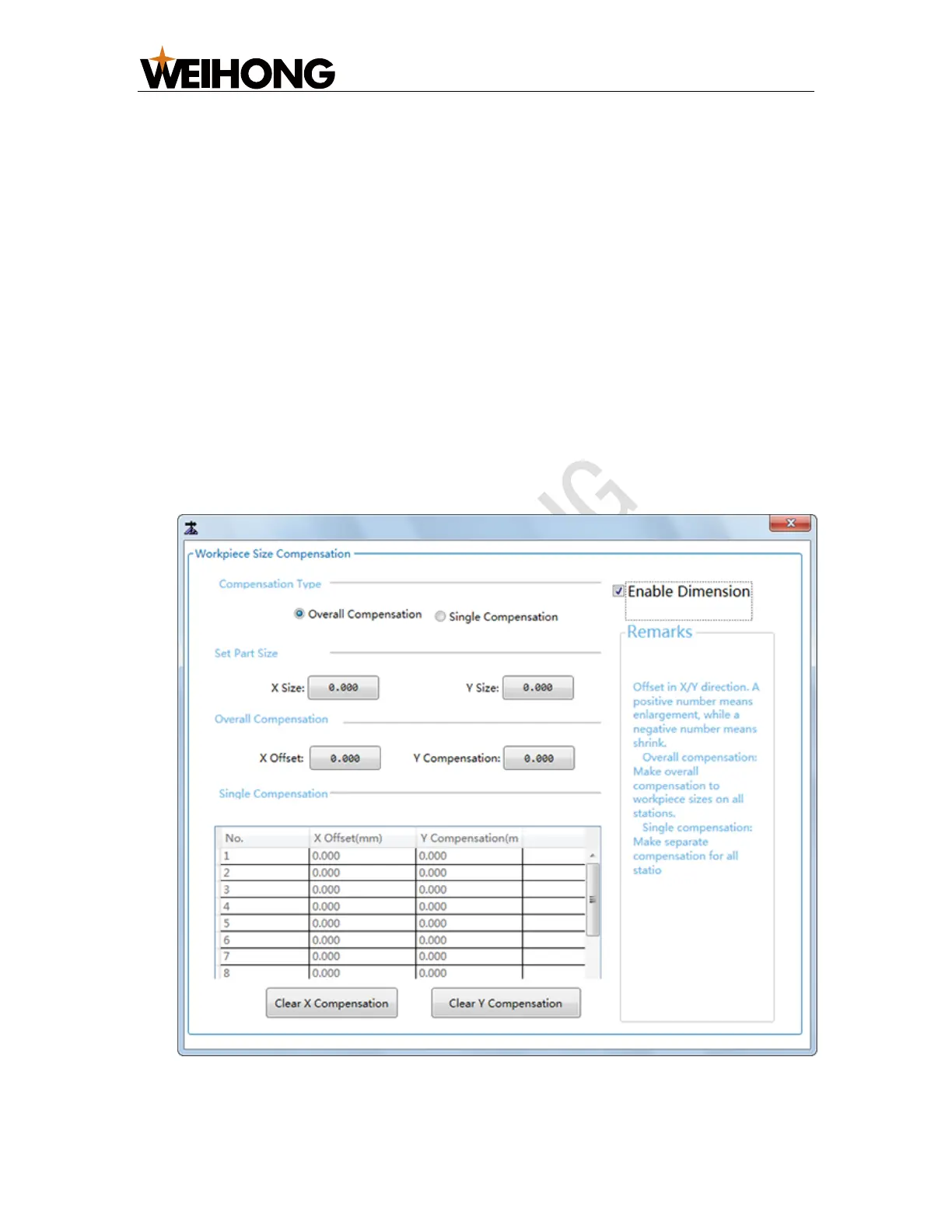

2. Click Set Part Size Comp. Workpiece Size Compensation dialog box pops up:
3. Check Enable Dimension.
