3.1. Function windows
Function windows include the following:
• Coor window
• Track window
• Offset window
• HD List window
• Center window
• CCD Setting window
• Param window
• Port window
• Set Absolute Function window

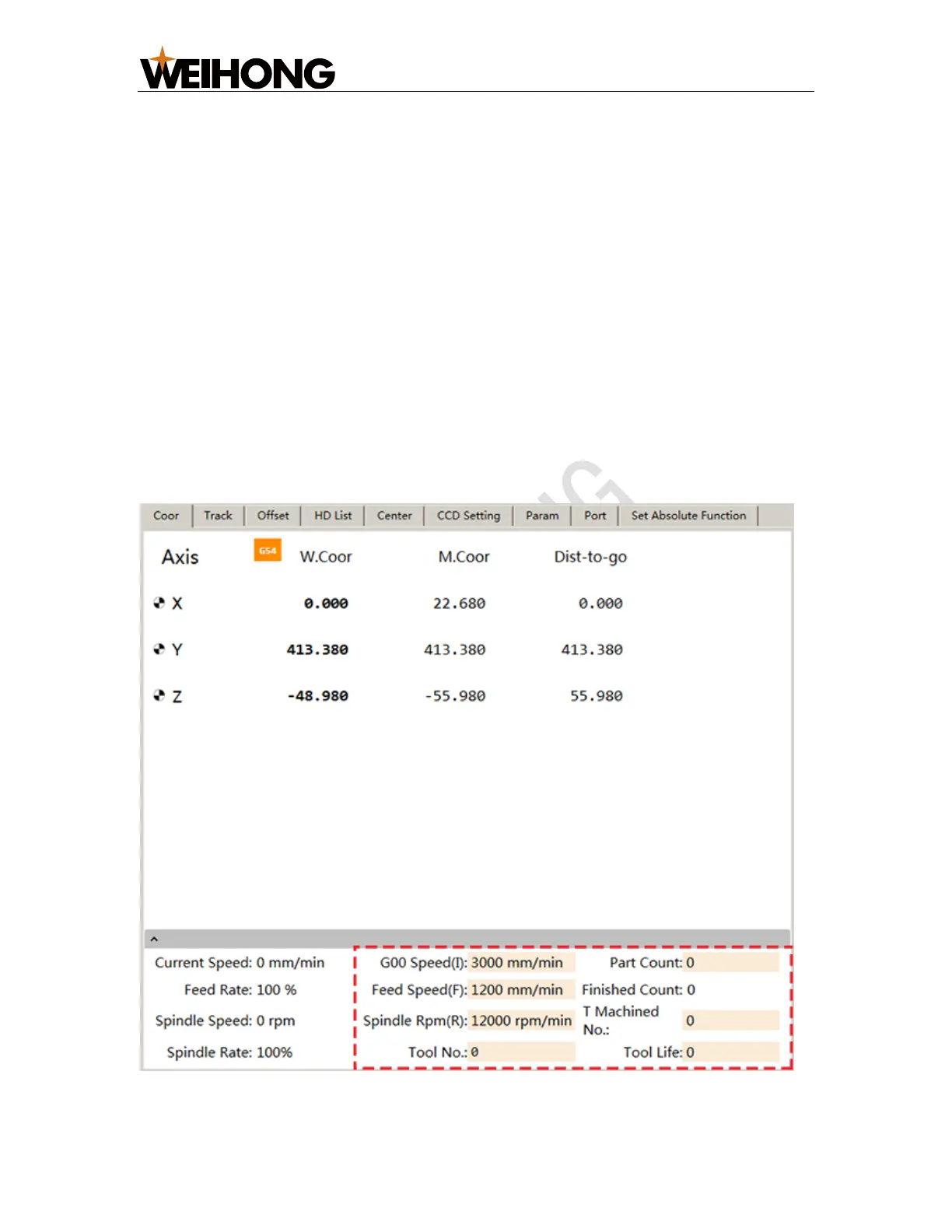

3.1.1. Coor Window
This window shows machine coordinate system and workpiece coordinate system:
