12 Repairs: Information and Instructions
8. Repairs: Information and Instructions
8.1 General
An ESD workplace is essential for making repairs to
the ACCUVAC Basic.
No work should be performed on the appliance
without a detailed knowledge of the Operating In-
structions and the Service and Repair Instructions,
which must always be complied with.
ACCUVAC Basic is only intended for the purpose
described (see ”2.1 Purpose“ on page 5).
When replacing components or individual parts,
be sure to use only original WEINMANN parts.
A functional check (see ”6.2 Performing the func-
tional check“ on page 8) must be performed after
every repair.
When ordering the rear part of the case, please
state the appliance type, appliance number and
year of manufacture.

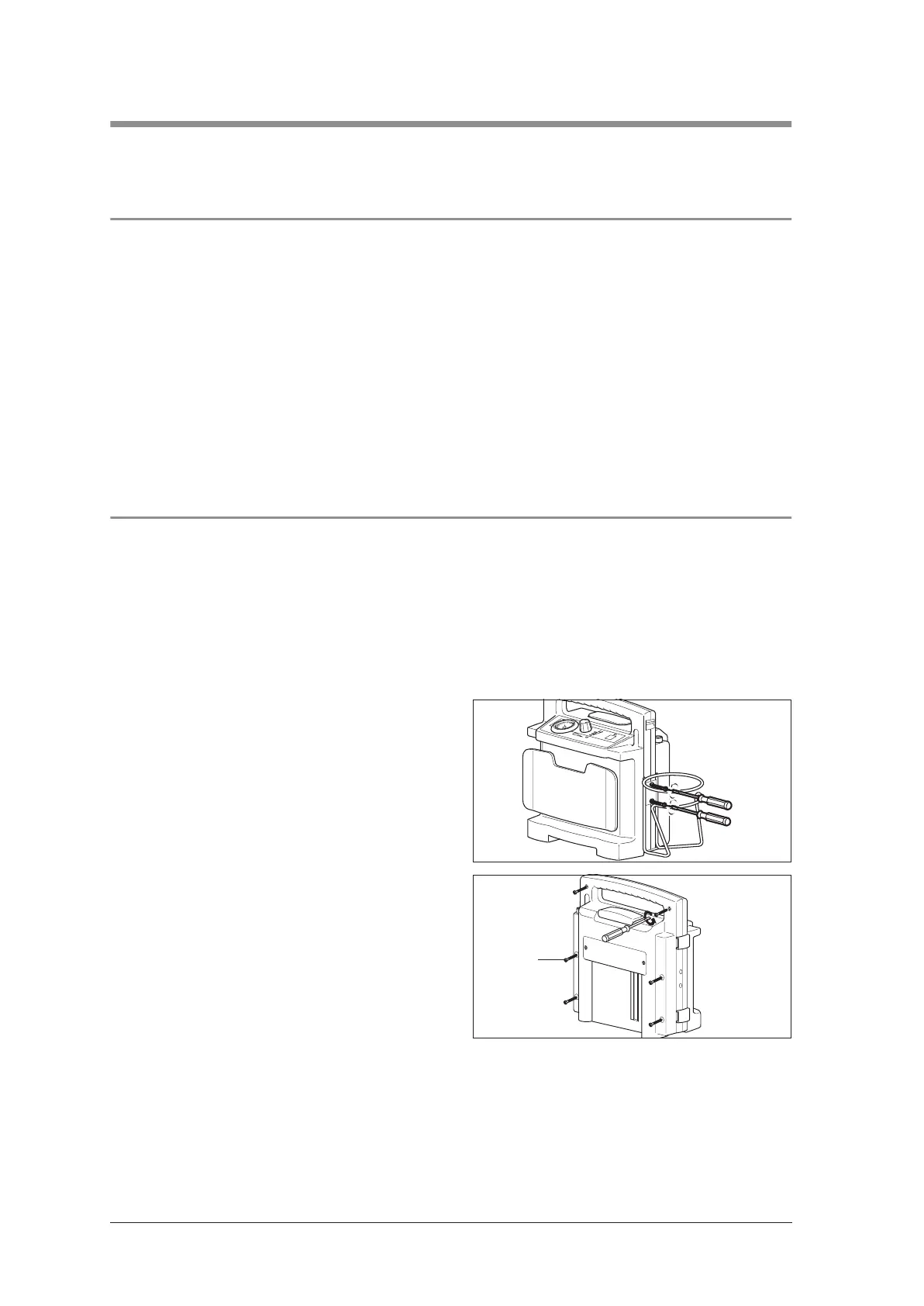

8.2 Opening the device
Tools and equipment required:
• Phillips screwdriver size 2
1. Switch off ACCUVAC Basic.
2. Disconnect the aspirator from the external
power supply.
3. Remove collection canister 7 and any
accessories.
4. Unscrew the holder 25 for the disposable col-
lection canister 7.
5. Open the case by unscrewing the 6 cross-
head screws 52. When opening the case, be
careful not to damage the silicone sealing
cord.
6. Carefully pull the front and rear case elements
apart.
52
