Repairs: Information and Instructions 13
8.3 Closing the device
Tools and equipment required:
• Phillips screwdriver size 2
1. Carefully put the front and rear case elements
together again.
2. Screw the case together again, making sure
the silicone sealing cord is correctly inserted
and is not jammed or otherwise damaged.
3. Perform a functional check (see ”6.2 Perform-
ing the functional check“ on page 8).

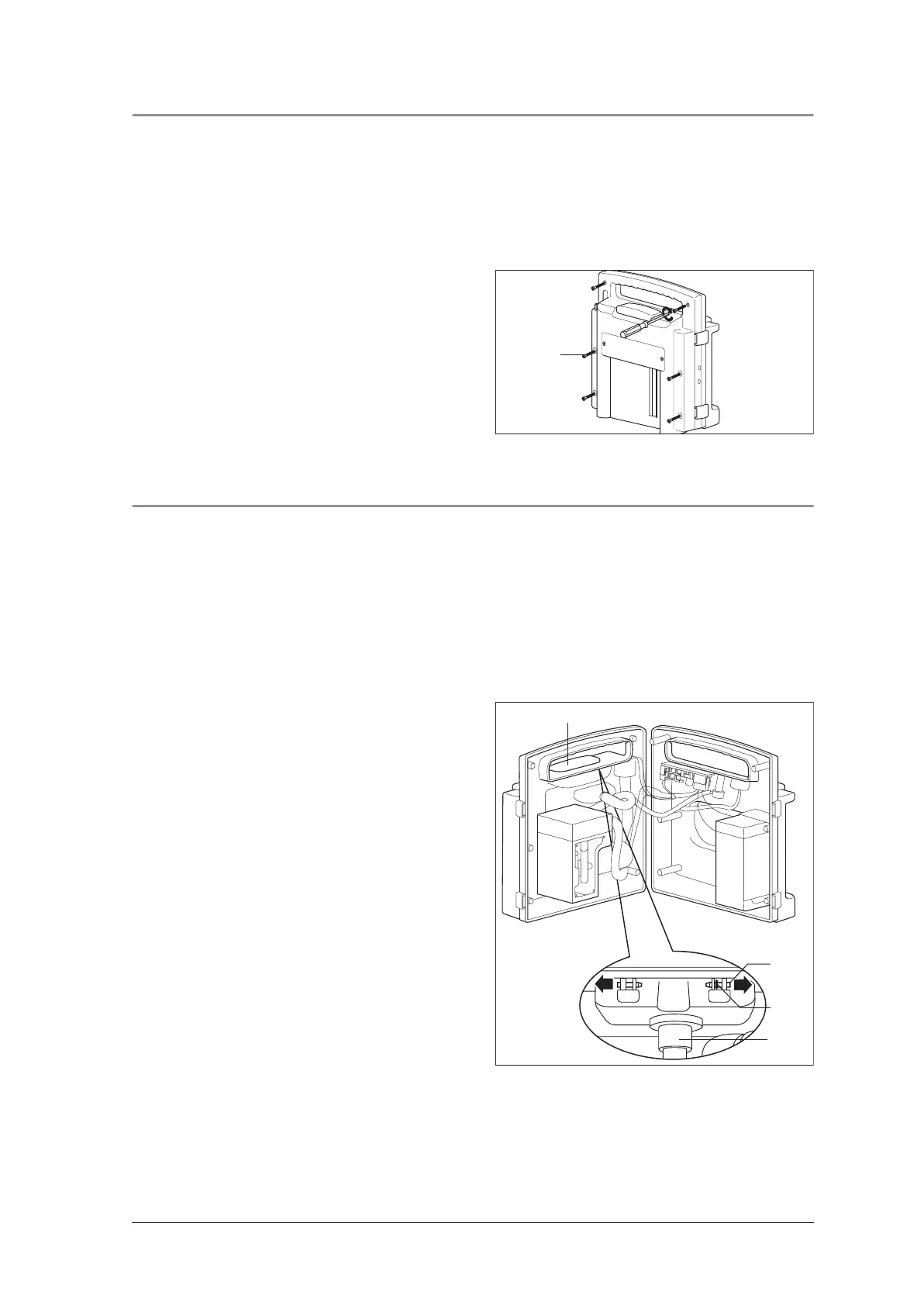

8.4 Replacing release catch
Tools and equipment required:
• Phillips screwdriver size 2
• Screwdriver, size 1 ;
• Flat or pointed pliers.
1. Open the device (see ”8.2 Opening the de-
vice“ on page 12).
2. Place the ACCUVAC Basic on its front.
3. Push out retaining pins 64 from release catch
63 and remove them.
4. Remove the old or defective release catch 63.
To do so, use a flat / blunt object to press
down snap lock 66, which is located below
release catch 6.
5. Take the new release catch 63 and insert it in
the rear wall of the case.
6. Take O-ring 65 and locate it in the rear wall of
the case between the loops of the release
catch and the rear wall attachment point.
7. Take the retaining pins 64 and insert them in
the bushing from outside to inside until you
hear them click into place.
8. Close the device (see ”8.3 Closing the de-
vice“ on page 13).
9. Perform a functional check (see ”6.2 Perform-
ing the functional check“ on page 8).
52
64
65
63
66
