Welotec TK800 - Tools

Input High/Low Action: Description
Default relay settings on or o. This can be used to switch the status of the relay output on or o or to define a
corresponding cycle.
Here, an OpenVPN or IPsec tunnel can be started or stopped via the digital input.
Output On/O Event:
Here the relay output can be used to start or stop IPsec and OpenVPN.
3.10.3 3.9.3. Modbus
Communication protocol based on a master / slave or client / server architecture. Modbus/TCP is very similar to
RTU, but TCP/IP packets are used to transmit the data. TCP port 502 is reserved for Modbus/TCP.

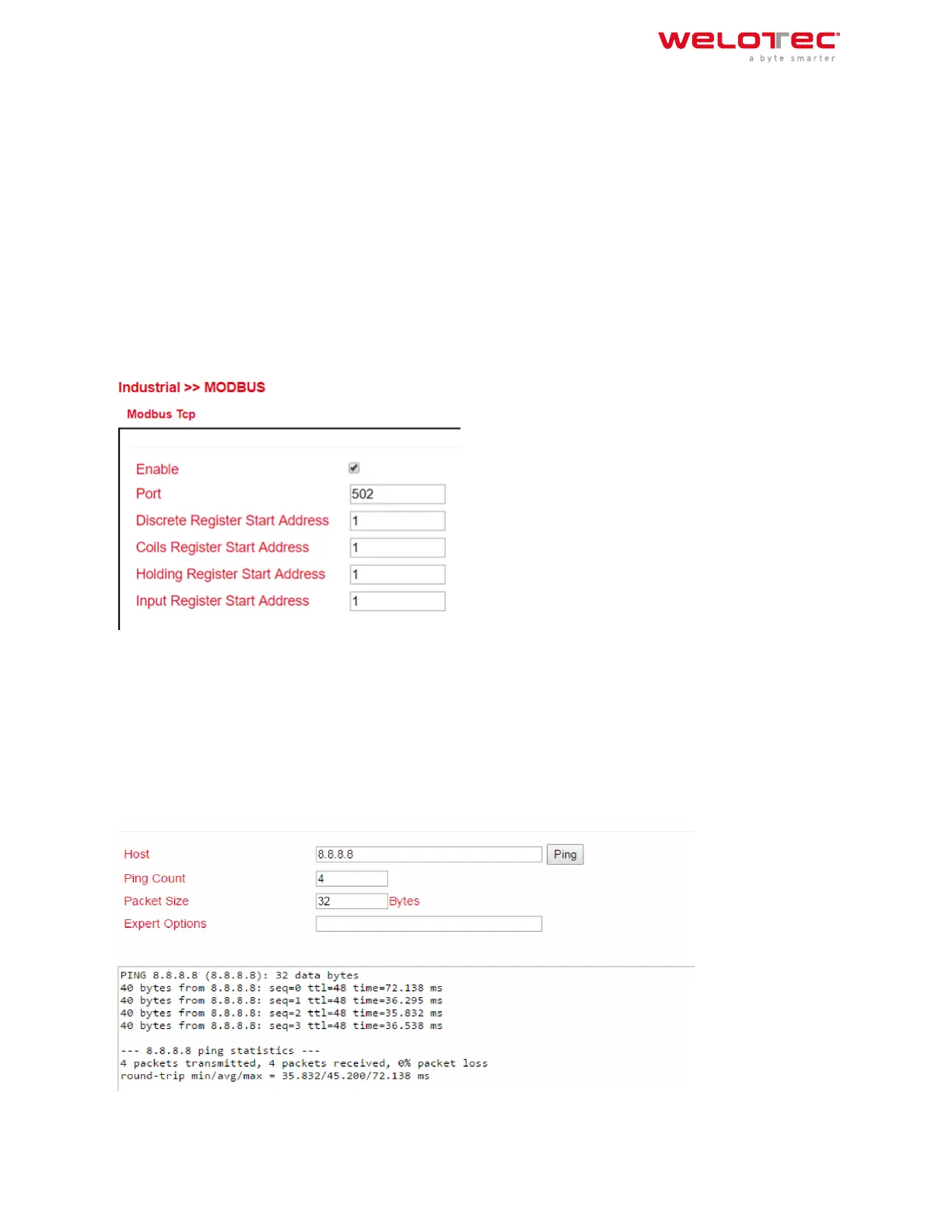

Via Industrial > Modbus > Modbus Tcp you can switch the corresponding settings on or o.
3.11 3.10. Tools
Useful tools that can be used for pinging, tracing, etc.
3.11.1 3.10.1. Ping
At this point in the router soware, a ping can be sent to check connections, for example.
