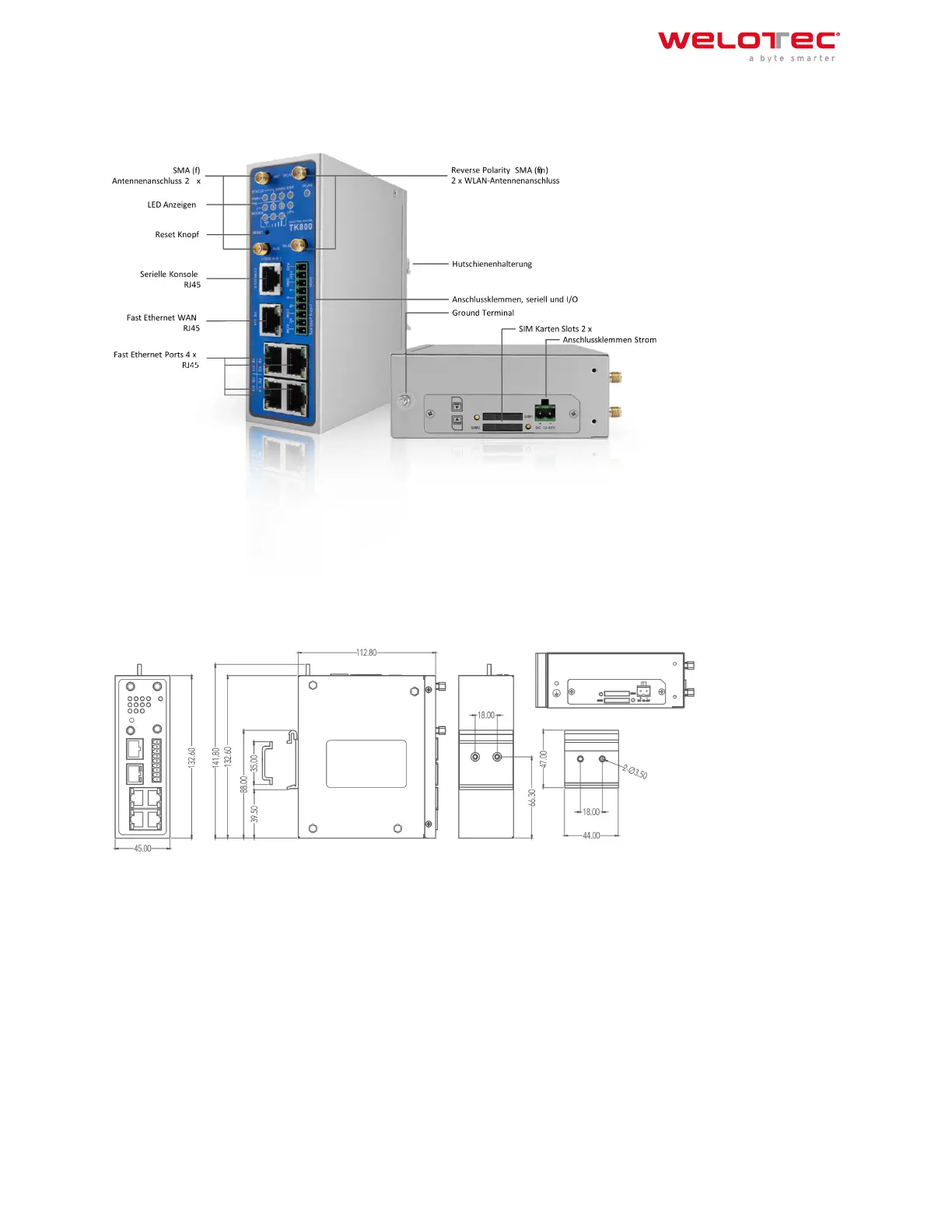

2.2.1 2.2.1. Control Panel
2.2.2 2.2.2. Dimension Drawings
2.3 2.3. Installation Guide
2.3.1 2.3.1. Preparations
Prepare the power supply (12 ‑ 48 V DC). Make sure that the device can operate under the specified environmental
conditions (working temperature range ‑25 – +70 °C, humidity: 5 – 95 % relative humidity). The device should
not be exposed to direct sunlight and should be installed away from heat sources and environments with strong
electromagnetic interference. The router can be mounted on a DIN rail (top‑hat rail) or used at a workstation.
