Configuring a WAN port

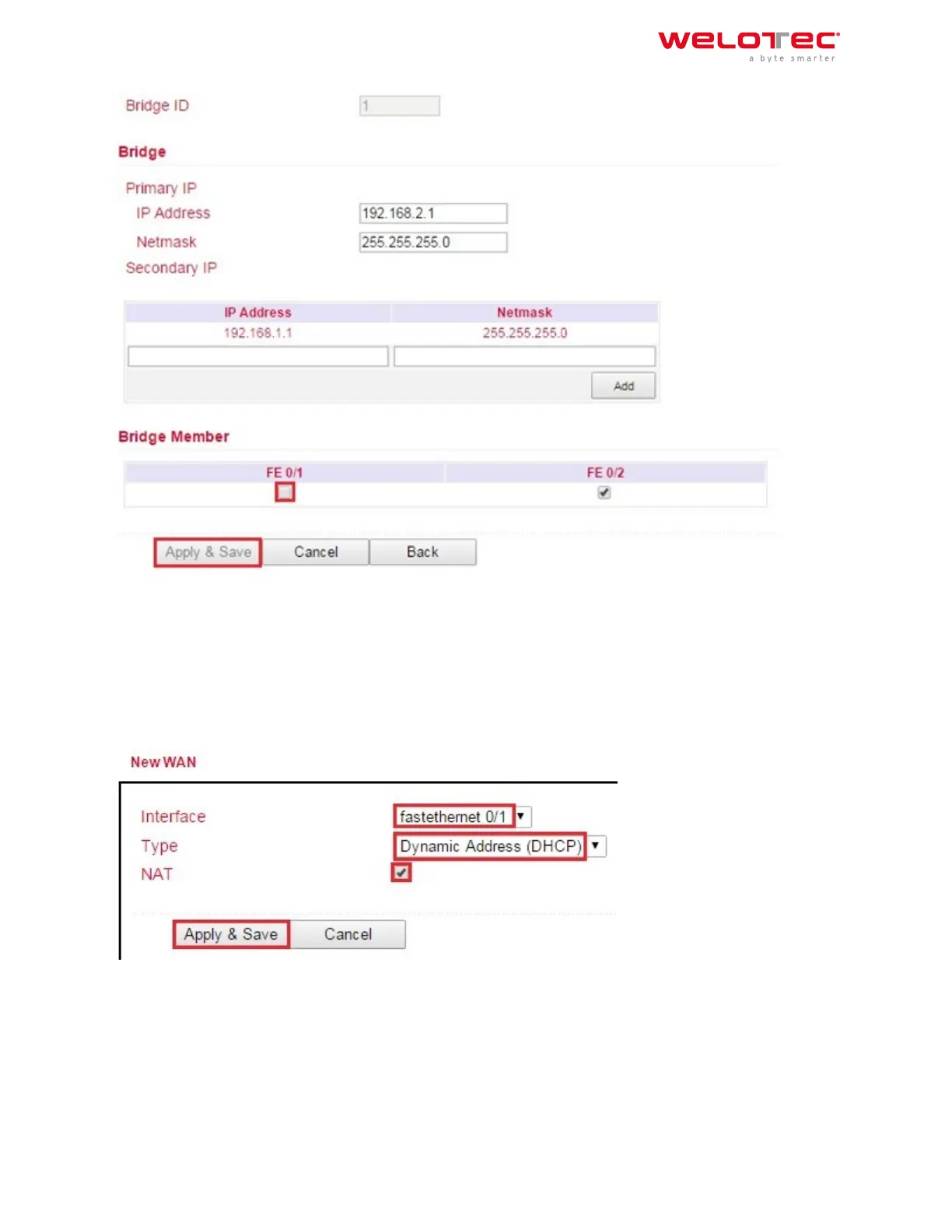

In this manual the port FE 0/1 is defined as WAN port. The New WAN Wizard is used for this purpose.
• In the Wizard menu, a new WAN port can be configured via the subitem New WAN
• as interface the Ethernet port (FE 0/1) currently detached from the bridge is specified, exemplary DHCP is also
used for the port
• NAT must be activated if the connected devices are to establish a connection to the Internet
• in the next step the ICMP program (SLA) is configured
• Under IP Address (Destination Address) a pingable IP address with high availability should be entered (Note: In
this example 4.2.2.1 was entered, since this address has a very high availability)
• all other data can be copied from the example
