Wezag CS 300 - 4 Technical Description; Overview Electric Crimping Machine CS 300; Machine Identification

BDA CS 300 – 06/15 – REV. B Page 53 / 84

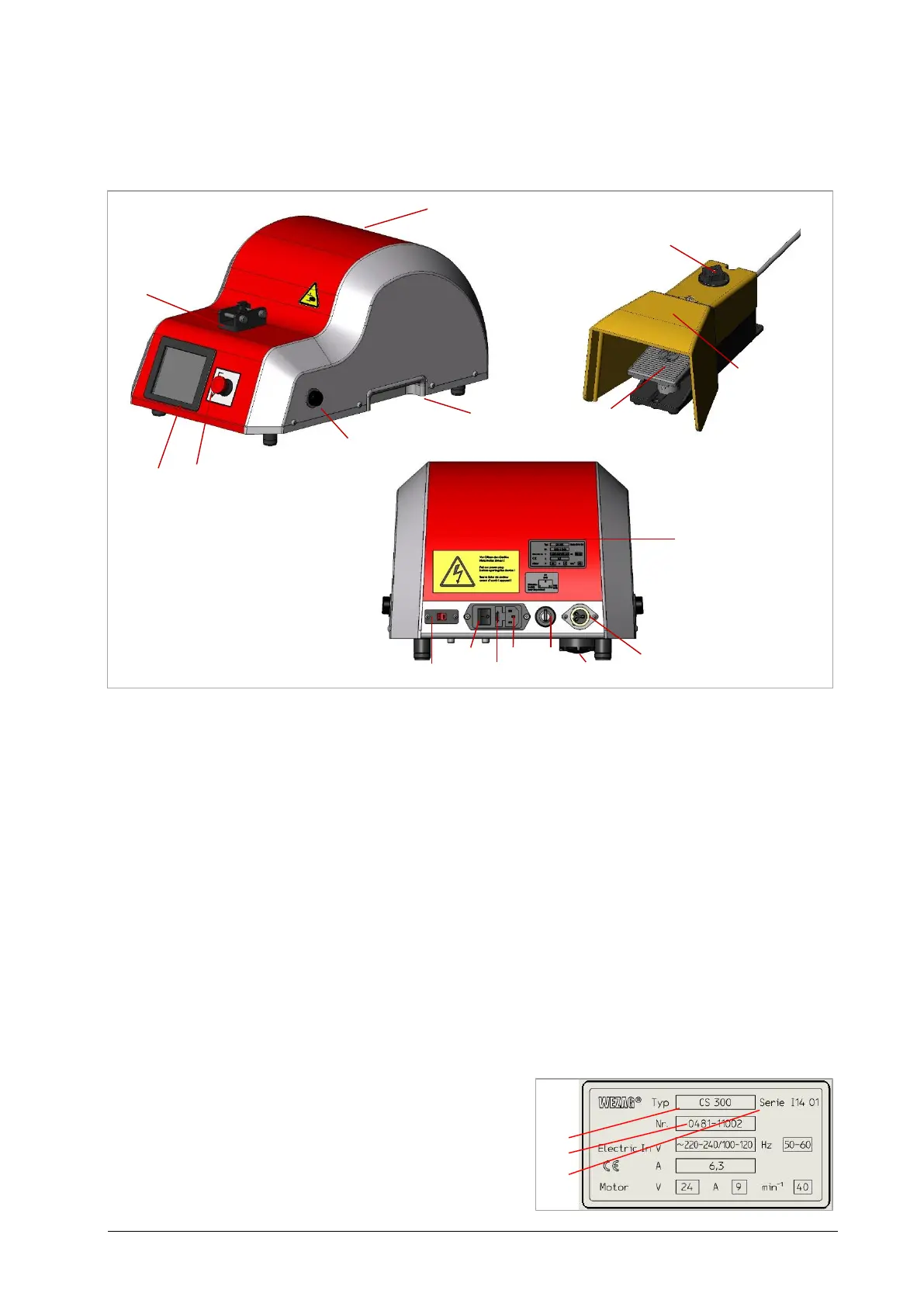

Fig. 4.1
4 Technical Description
4.1 Overview Electric Crimping Machine CS 300
4.2 Machine Identification
Pos.
Description
01
Electric Crimping Machine CS 300
02
Handle recess (right & left)
03
Safety Button (right & left)
04
Release button
05
Touch display
06
Holding devise for tool head/adapter
07
Socket for foot pedal
08
Key switch (ON/OFF/Supervisor Mode)
09
3-pole main plug connection
10
Fuse 6,3 A
11
ON/OFF switch
12
Voltage selector 115V/230V
13
Identification plate with serial number
14
Battery compartments for the emergency power supply of the
release button (underneath the machine)
15
Electric foot pedal
16
Safety cover for foot pedal
17
Safety lock for foot pedal
Item
Description
01
Machine Type
02
Article Number
03
Serial Number
01
03
04
05
06
07
08
09
10
02
04
05
06
07
08
09
10
11
12
15
16
17
14
13
01
02
03
Fig. 4.2
