Key position III:
Off. The machine is inoperable, however
there is still voltage. Any operation is
impossible.
The display (Fig. 4.10) shows the following
icon:
4.4.3 Release Button
In case of jammed jaws caused by operation
or handling errors or wrongly placed
terminals the electrical crimping machine
CS 300 can be opened as follows:
+ Press Release Button (Fig. 4.11)
After having pressed the released button, the
following icon appears: (Fig. 4.12).
Counter:
759.103
Counter:
759.103

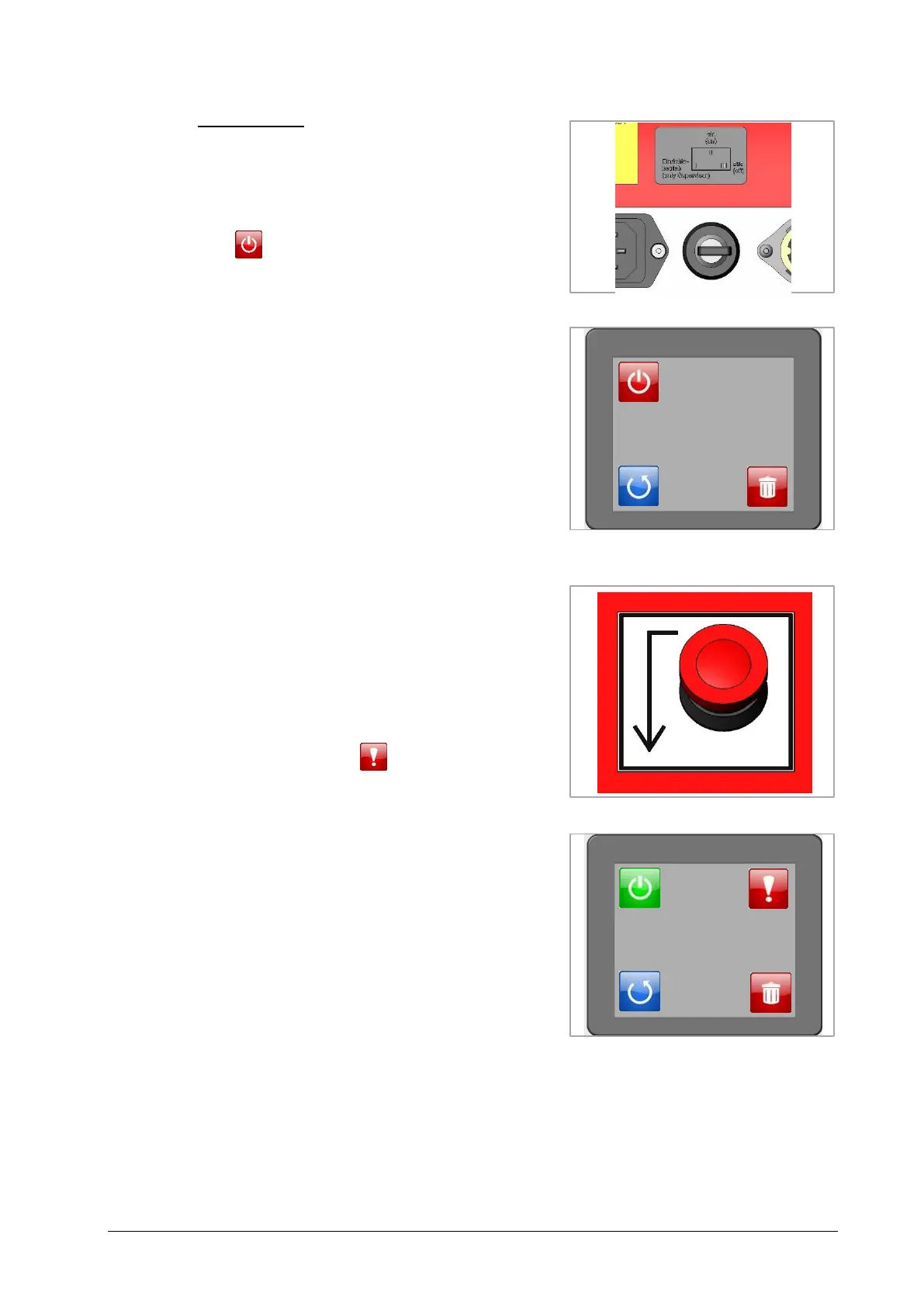

Fig. 4.9
Fig. 4.10
Fig. 4.11
Fig. 4.12
