2.4.13 Power Relay Module(LA5575)
a. Power on the adapter with a proper location.
b. Connect the wiring pin of 3rd party device by DI/DO (dry contact).

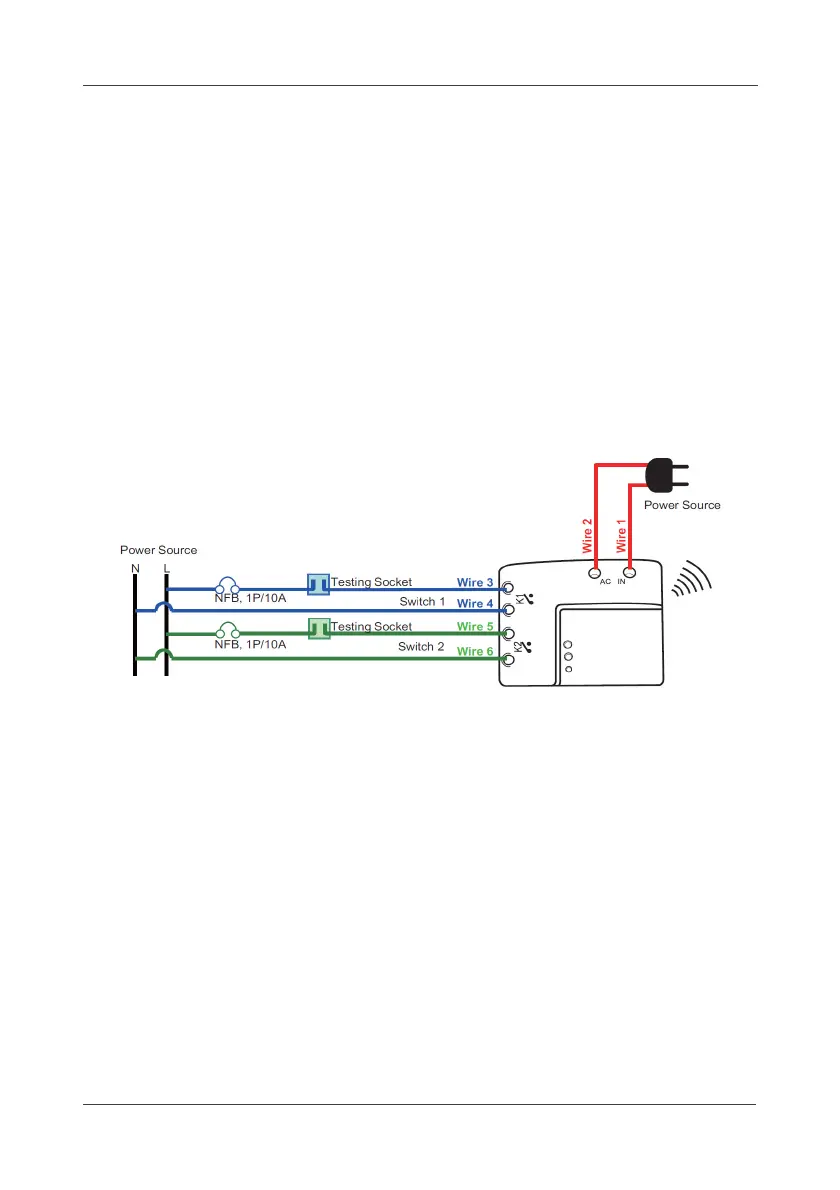

c. The description of integration and wiring as example:
Wire 1- AC IN: 100VAC~240VAC
Wire 2- AC IN: 100VAC~240VAC
Wire 3- K1: Dry Output 1 Dry contact
Wire 4- K1: Dry Output 1 Dry contact
Wire 5- K2: Dry Output 2 Dry contact
Wire 6- K2: Dry Output 2 Dry contact
*NFB: No-Fuse Breaker
