Chapter 4: Web Management
EN-79

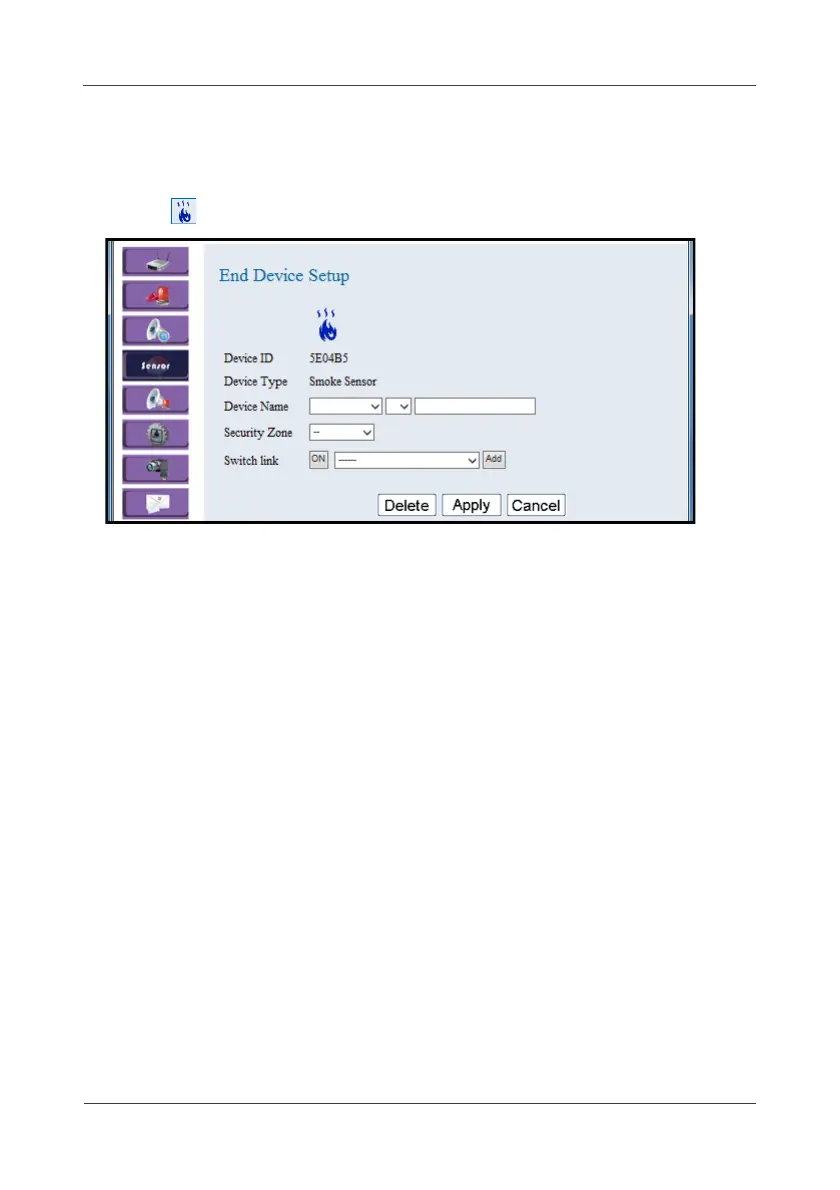

4.4.5 Smoke Sensor
This option allows you to configure the Wireless Smoke Sensor settings.
1. Click .
2. Select the location, device number, and specify the sensor name.
Click on the pull-down menu to see more options.
3. Select the security zone while enabling partial arm.
4. To bind multiple links with the automation-type controllers (such as
Wireless Power switching or Wireless Lock switch), select the controller
ID in the Switch link field and click Add.
Select ON or OFF the device when the alarm is triggered.
5. In the Switch link field, click Remove to delete the current binded
automation-type device.
6. Click Apply to save the settings.
