10. Siting the indoor module

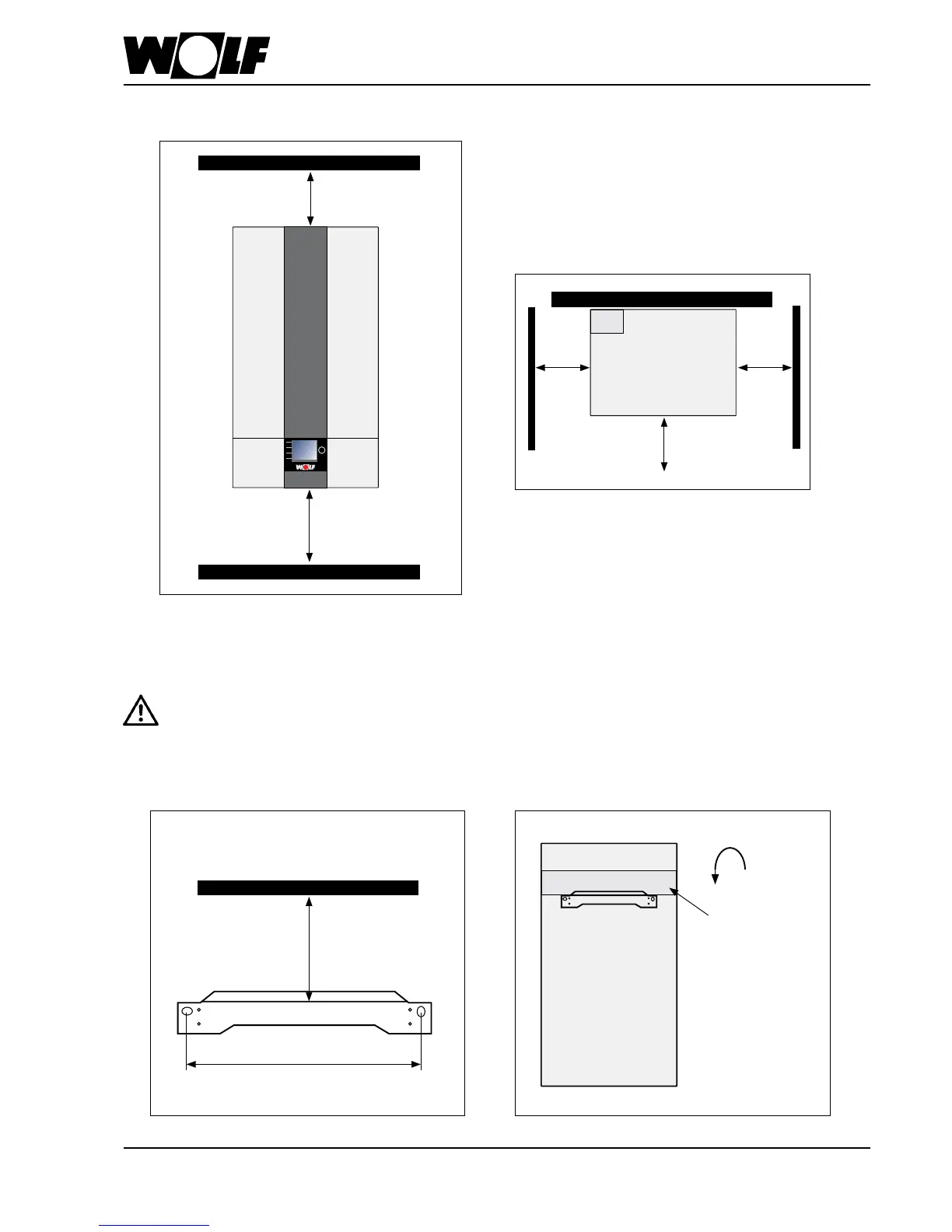

Minimum clearances for the indoor module
Securing the appliance with the suspension bracket
Wheninstallingtheappliance,ensurethatthexingshavesufcientload-bearingcapacity.Inaddition,takeinto
accounttheconditionofthewall,otherwiserefrigerantandwatercouldescape,resultinginariskofooding.
1. Mark the Ø12 holes to be drilled for the suspension bracket, taking into account the minimum clearances.
2. Inserttherawlplugsandtthesuspensionbracketusingtheboltssupplied.
3. Hang the indoor module into the suspension bracket using the mounting stay.
≥800
≥40
≥40
≥1000
≥150
Fig.: Front view of indoor module
Fig.: Plan view of indoor module
344
Fig.: Rear view of indoor moduleFig.: Suspension bracket
≥245
Ceiling
Mounting stay
