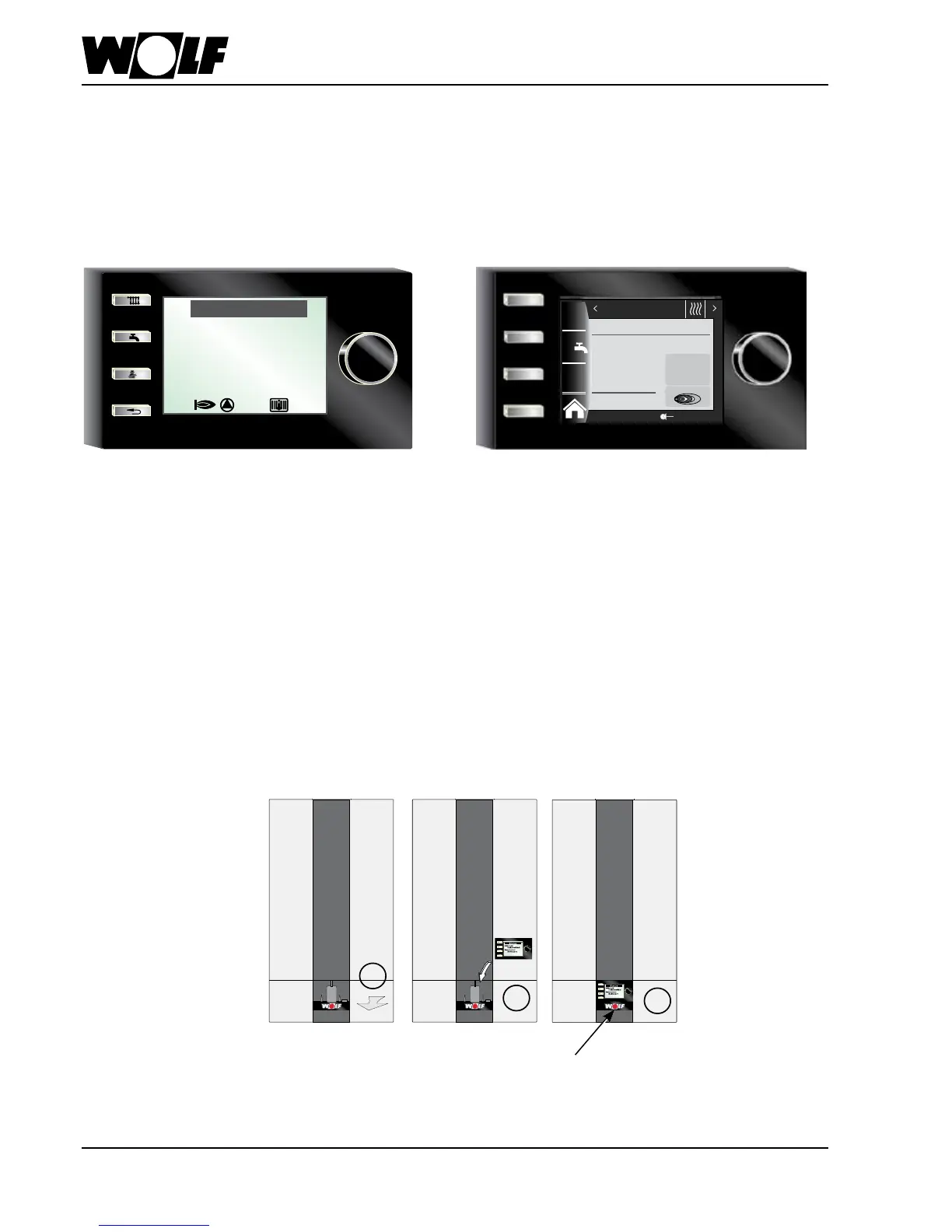

26. Display module / programming unit
installation
The BM-2 (programming unit) communicates with the split
air/water heat pump and all connected extension modules
via eBus.
Specication:
• Colourdisplay3.5",4functionbuttons,1rotaryselector
with push-button function
• MicroSDcardslotforsoftwareupdate
• Centralprogrammingunitwithweather-compensated
owtemperaturecontrol
• Timeprogramforheating,DHWandDHWcirculation
The AM serves as a display and programming unit for the
splitair/waterheatpump.Parametersandvaluesspecic
to the split air/water heat pump can be programmed and
displayed.
Specication:
• LCDscreen3"
• 4quickstartkeys
• 1rotaryselectorwithpush-buttonfunction
Please note:
• UsewhenBM2isusedasaremotecontrolor
in a cascade circuit
• AMisalwaysintheheatingappliance
AM BM-2
Operating mode
Heating mode
HP status
ON
Status
2
1
3
14:12
20.01.13
1.5 bar
25.2
°C
1x
Boiler temperature
Heating appliance
HTG
Pressure
Operation
An AM display module is required for operating the split air/water heat pump. A BM-2 programming unit
can also be connected via eBus for other operating and display functions.
Plug the AM display module into the slot above the ON/OFF switch (Wolf logo).
Switch on power supply / MCB
and switch ON/OFF switch to ON.
