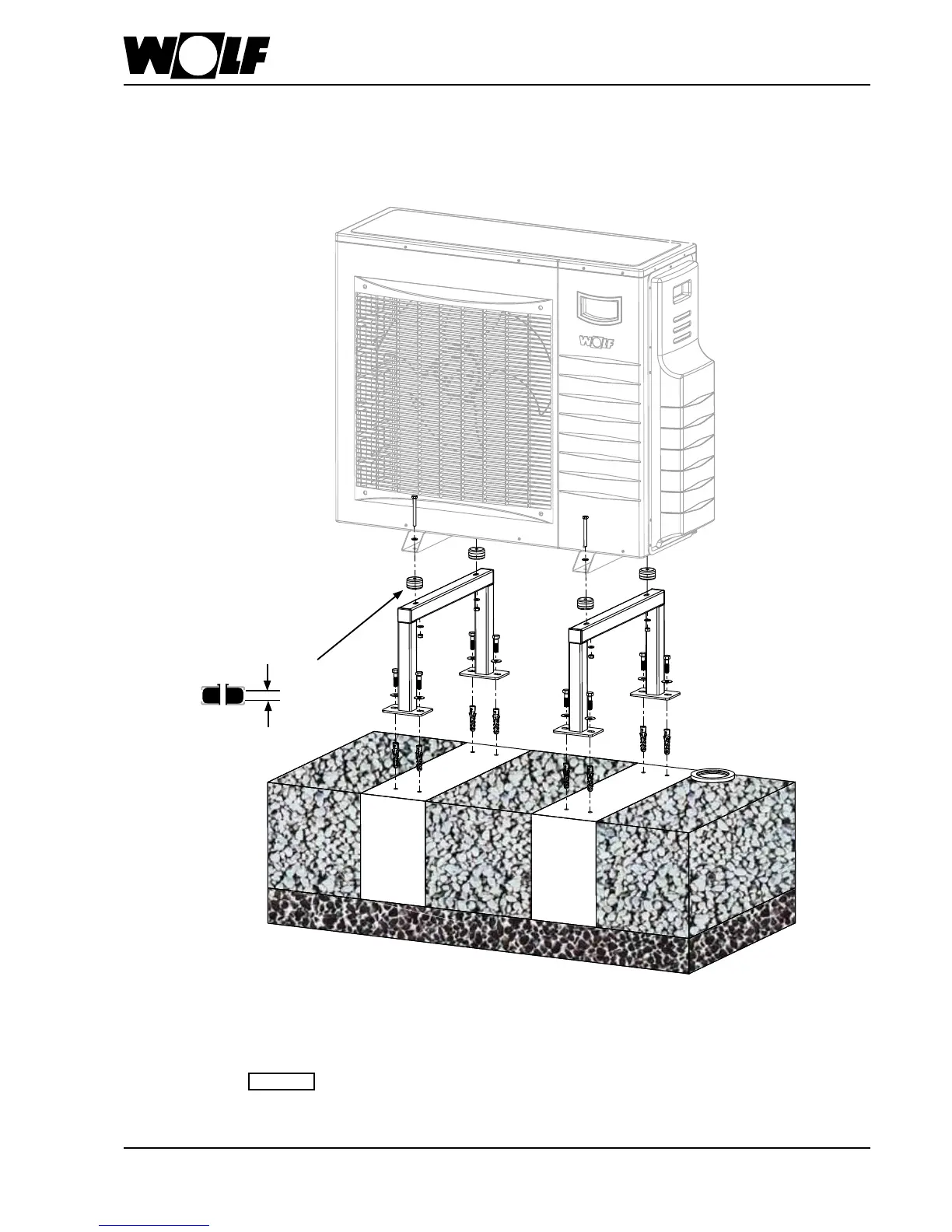

12. Anchoring the outdoor module and
providing vibration isolation
Cast,levelplinthofconcretewithgravelbaseprovidingsufcient
frost protection, cut-out for cable/line entry, see foundation diagram
Tighten the nuts of
the rubber mounts
until approx. 8 mm
of rubber becomes
visible
8 mm
Secure in accordance with structural characteristics,
taking into account the appliance weight.
Please note
