Wolf BWL-1 S - Siting the Outdoor Module

18 3064298_201507
9. Siting the outdoor module
Air discharge
a≥1000toobstaclesobstructingtheairdischarge
a≥3000tofootpathsandpatiosduetotheformationofice,evenwhenoutsidetemperaturesareabove0°C
Clearance between outdoor module and ground
In areas with heavy snowfall, the minimum installation height must be increased or a canopy must be constructed
over the outdoor module.

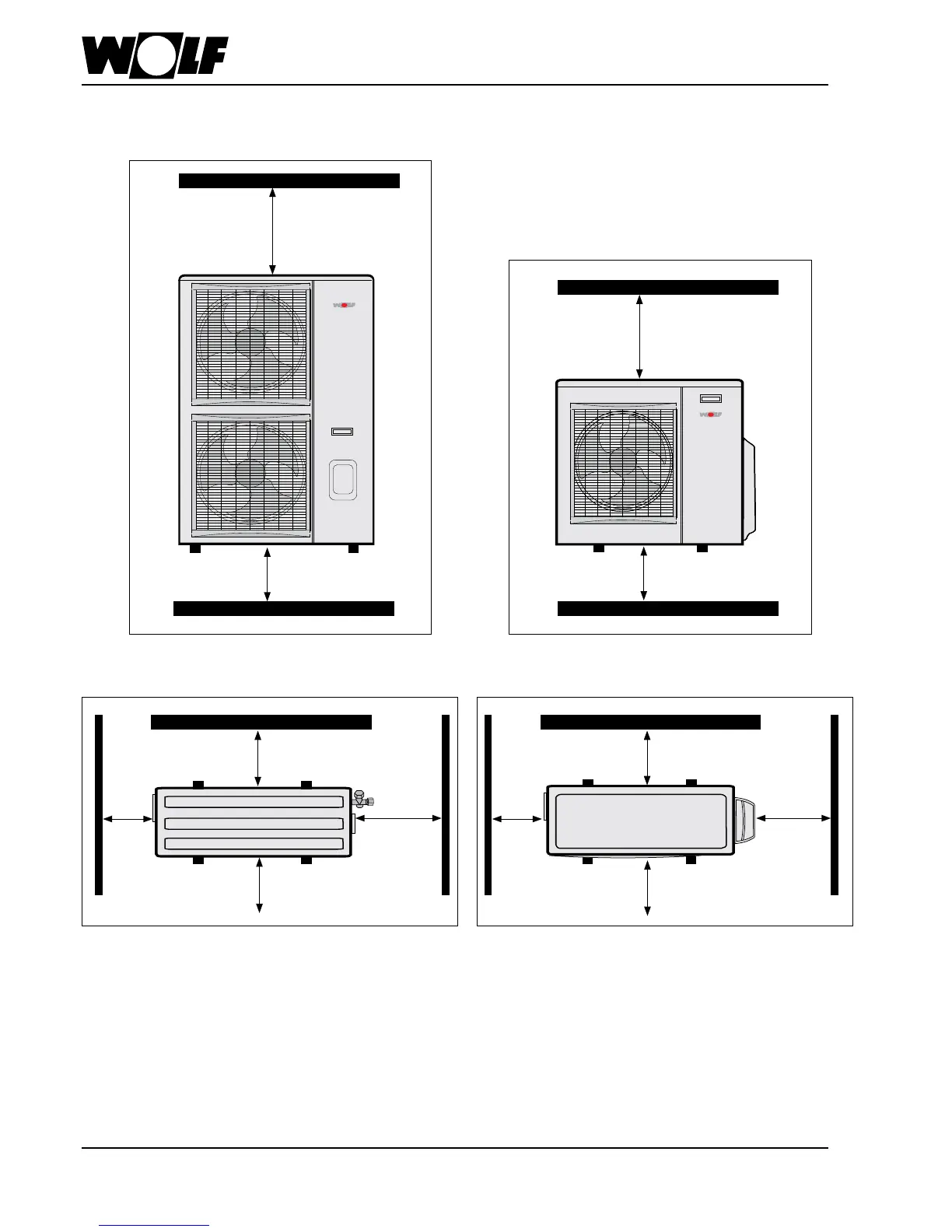

Minimum clearances for the outdoor module
≥600
≥300
≥600
≥300
Air discharge
Air intake
≥300
≥300≥100
Air discharge
Air intake
≥220
≥300≥100
Fig.: Front view of outdoor module BWL-1S(B)-10/14 Fig.: Front view of outdoor module BWL-1S(B)-07
Fig.: Plan view of outdoor module BWL-1S(B)-10/14 Fig.: Plan view of outdoor module BWL-1S(B)-07
a
a
