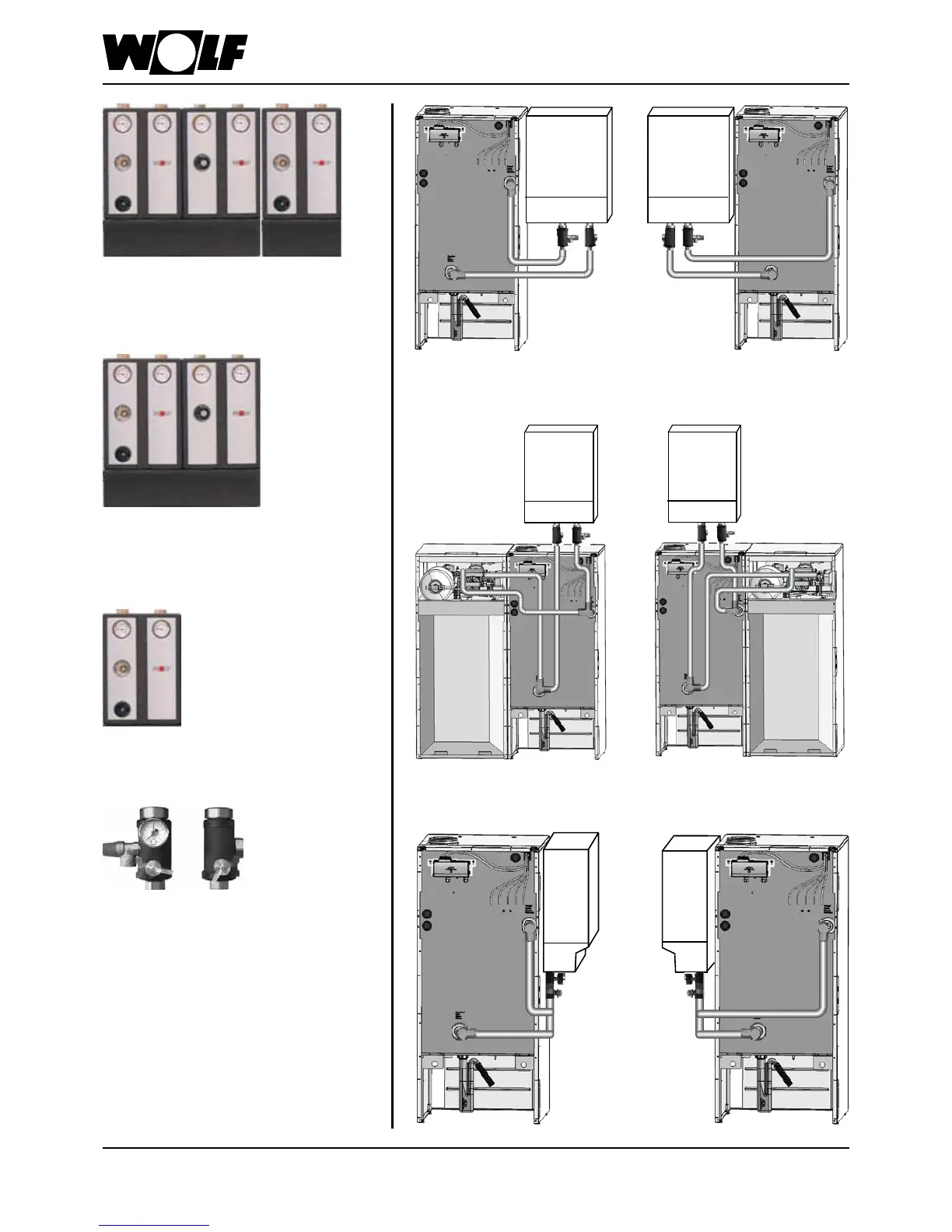

11. Installation examples
Pipeassemblyfortwoheatingcircuits
withmanifoldforsafetyassembly
installation
Pipeassemblyforoneheatingcircuit
forsafetyassemblyinstallation
Safety assembly for fixing to the
corrugated stainless steel pipes of
heatingowandreturn
The safety assembly and the required pipe
assembly can be installed on the left, on
the right or at the back of the boiler on a
wall or attached to the side of the boiler
casing.
Note: The pipe assembly for three heating
circuits should always be wall mounted.
Pipeassemblyforthreeheating
circuitswithmanifoldforsafety
assemblyinstallation
