Wolf COB - Control Unit

22
3062547_201507
0
I
0
°C
20
40
60
80
100
120
ON/OFF switch
DHW
temperature
selector
Reset button
Heating water
temperature
selector
Illuminated
signal ring
Thermometer

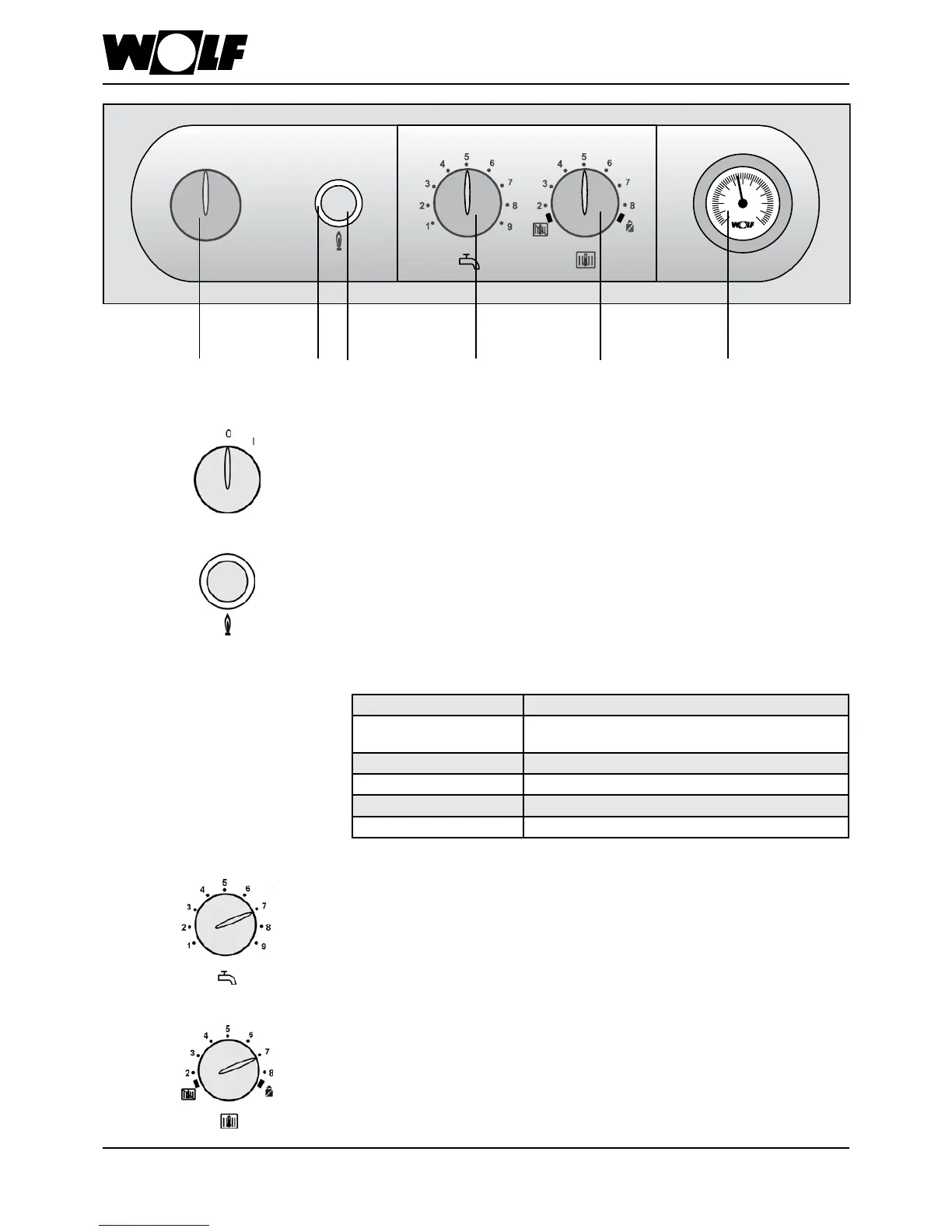

17. Control unit
ON/OFF switch
The condensing boiler is OFF in position 0.
Reset
A fault is reset by pressing the reset button which will also restart the system. If the boiler
is in a cycle block, this is reset by pressing the button (2 seconds)
Heating water temperature selector
Settings 2-8 correspond, when factory-set, to a heating water temperature of
20-80 °C. Combined with a BM programming module, the adjustment at the heating
water temperature selector is disabled.
DHW temperature selector
When oil condensing boilers are combined with a DHW cylinder, setting 1-9 corresponds
to a cylinder temperature of 15-65 °C. DHW temperatures of over 60°C are not
permissiblein conjunctionwith aTSstraticationcylinder.In combination with
a BM programming module, adjustment at the DHW temperature selector is disabled.
The temperature is set at the BM programming module.
Illuminated signal ring as status indicator
Display Explanation
Flashing green Stand by (ON/OFF switch ON, no heat demand,
pump OFF)
Constant green light Heat demand: Pump running; burner OFF
Flashing yellow Emissions test mode
Constant yellow light Burner ON; ame steady
Flashing red Fault
