16. Electrical connection
General notes
Thepowersupplyterminalsare'live'evenwhen
the ON/OFF switch has been switched OFF.
The installation must be carried out by a
licensed electrical contractor. Observe VDE
regulationsaswellasalllocalregulations by
yourpowersupplyutility.

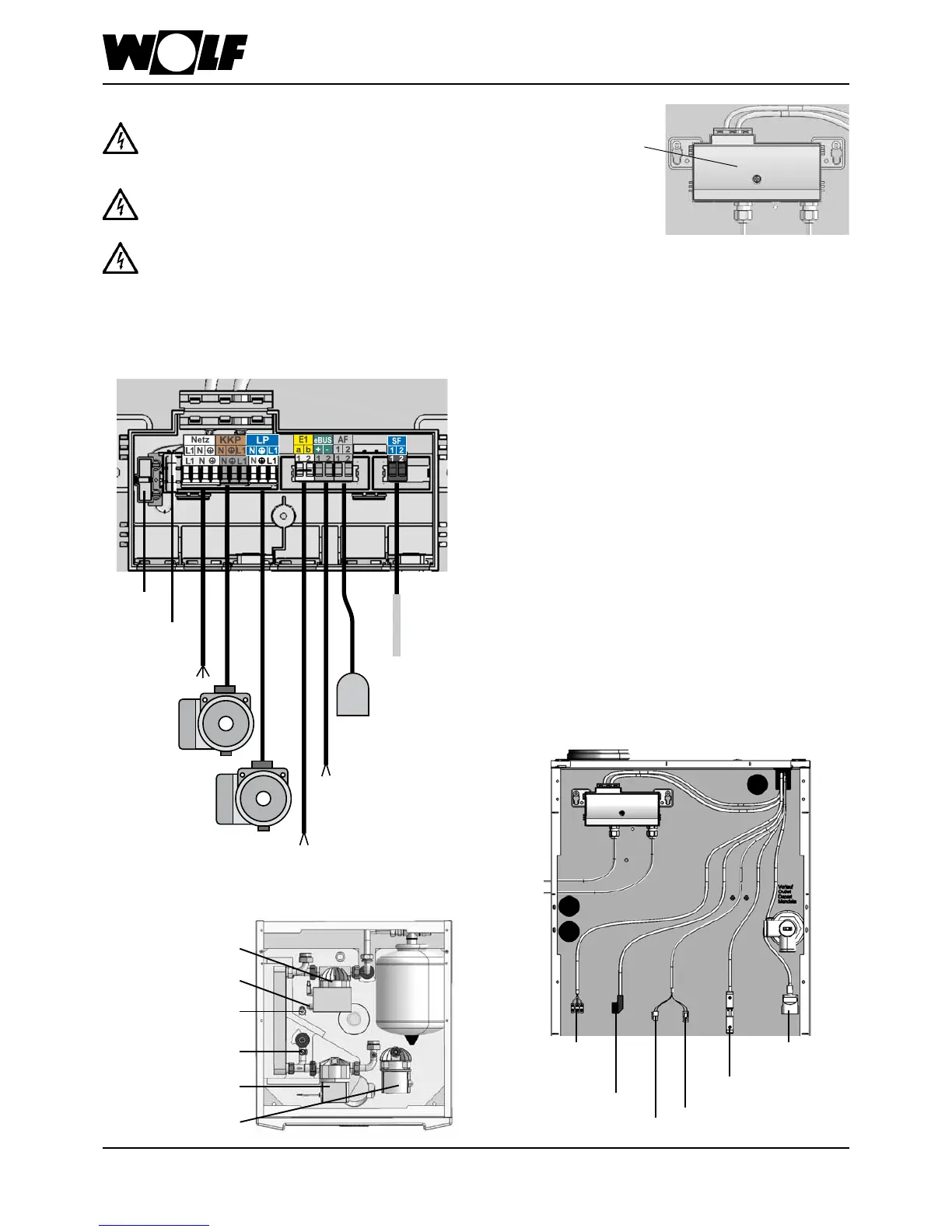

Fuse
M 5A
Power supply
230 V / 50 Hz
Two-wire eBUS
connection
Replacement
fuse
Outside
temperature
sensor
Cylinder
sensor
Programmable input E1 (24 V),
zero-volt
Remove jumper a/b when making
the connection
Heating
circuit
pump
Cylinder
primary
pump
Terminal box
Power plug,
condensate pump
TS stratication pump
Stratication
sensor
Control signal,
stratication pump
Alarm switch,
condensate pump
Programmable
output A1
(230 VAC; 200 VA)
Output A1 to DHW circulation
Stratication sensor
Control signal,
stratication pump
Cylinder sensor
Stratication pump
Cylinder primary pump
Terminal box
The terminal box is supplied tted to the back panel of the
boiler.
If necessary, the terminal box can be mounted on the wall to
the right, to the left or above the boiler.
The control, regulating and safety equipment are fully wired
and tested.
Powersupply
In the case of a permanent connection, provide the power
supply via a mains isolator (e.g. fuse, heating system
emergency stop), which ensures at least 3 mm contact
separation for all poles. Connecting cable, exible, 3 x 1.0 mm²
or rigid, max. 3 x 1.5 mm².
The maximum current carrying capacity of the outputs is 2 A,
but a total of 5 A must not be exceeded.
Installationinformation,electricalconnection
Isolate the system from the power supply before opening the
casing.
Unclip the terminal box from the holder.
Open the terminal box.
Insert the strain relief into the holes provided.
Strip approx. 70 mm off the power cable insulation.
Push the cable through the strain relief and secure the strain
relief.
Terminate the appropriate cores at the Rast-5 plug.
Push the inserts back into the terminal box casing.
Insert the Rast-5 plug.
Fit the cover.
Isolate the boiler from the power supply
before changing the fuse. The ON/OFF switch
on the boiler does not provide separation
from the power supply. Danger through 'live'
electricalcomponents.Nevertouchelectrical
components or contacts as long as the boiler
hasnotbeenisolatedfromthepowersupply.
Danger to life.
