PAGE 48
INTERPRETING HEX DECIMAL CODE
The bar lights located on the control panel are divided into four differ-
ent groups. These four groups have numeric values. (See Figure 1).
When the bar lights are illuminated, the numeric value for each group
needs to be added together.
NOTE: When reading the bar lights, they are always read from left to
right and from Most Significant to Least Significant
numeric value. Example: 8-4-2-1.
When the sum of those numbers added together are from 10 - 15,
then a letter is assigned in place
of that sum.
Example: 10 = A; 11 = B; 12 = C; 13 = D; 14 = E and 15 = F.
8
4
2
1
8
8
8
4
4
4
2
2
2
1
1
1

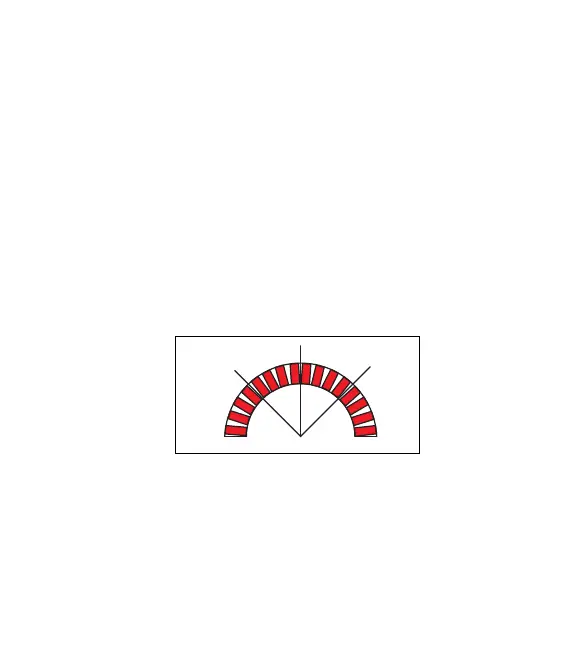

Figure 1. Bar Lights Divided
into Four Groups.
