In Figure 2, you see an example of bar lights that could be illuminat-
ed. When reading the bar lights according to Most Significant to
Least Significant numeric value, they add up to:
2 + 1 = 3
; 4 + 1 = 5 and 8 + 4 = 12 or C.
So you have 3 - 5 - C. Now, look at the chart (See Figure 5), to find
the value of 35C. The value of 35C = 43.3 °C.
NOTE: To convert °C to °F, use this formula: (°C x 1.8) + 32 = °F.
8
4
2
1
8
8
8
4
4
4
2
2
2
1
1
1

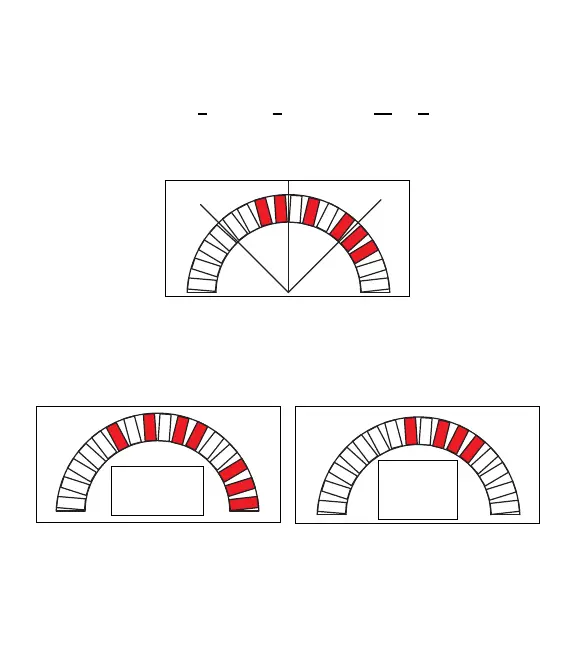

Figure 2. Interpretation of Bar
Lights.
Figure 3. Example of Possible
Bar Lights. Displayed for Lid
Switch.
Figure 4. Example of Software
Version.
Software
Version
1 - 7 - 0
