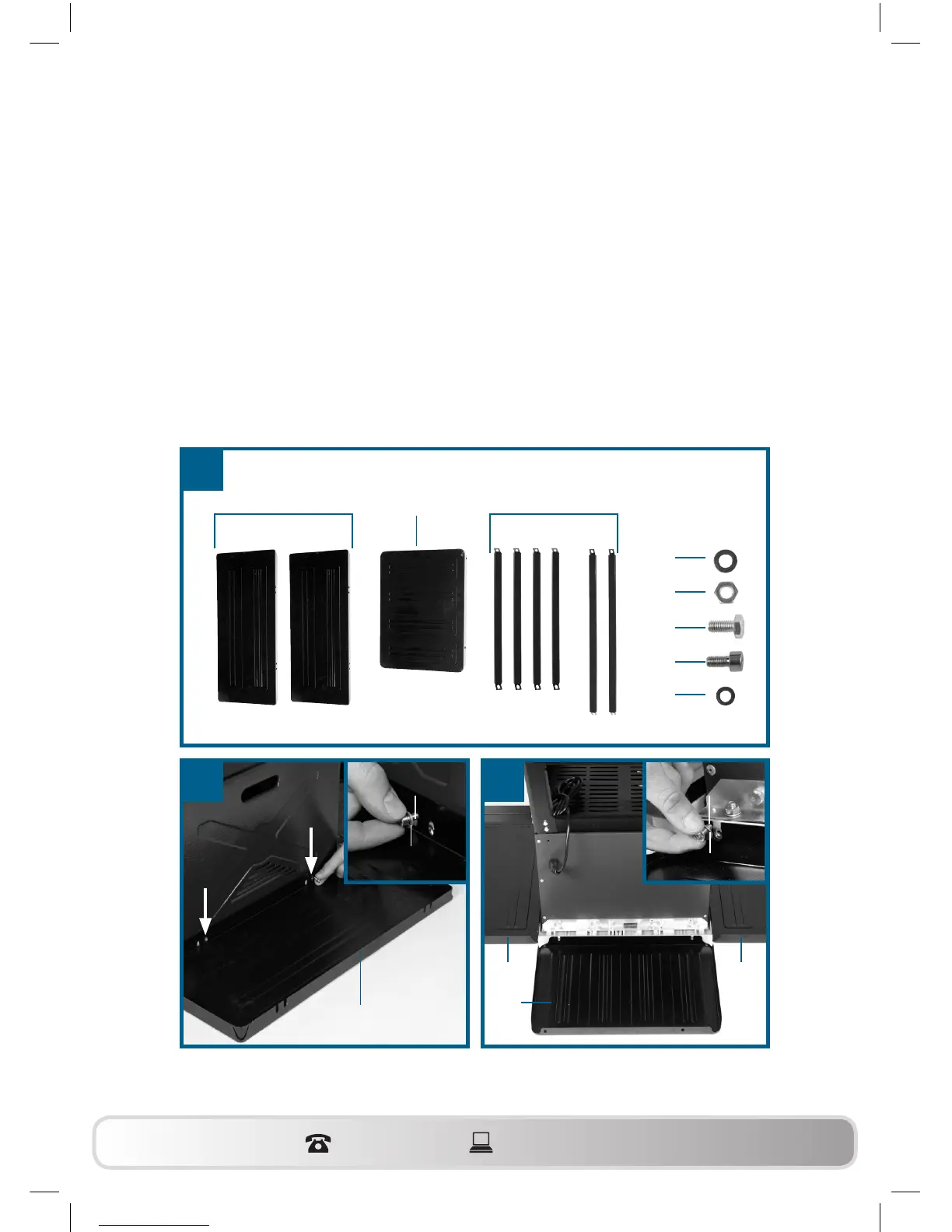

5.2 Fitting the table width extension and length extension (Fig. 10-
14)
• Loosely fasten the table width extension and length extension (14/15)
to the saw table (1) using the Allen screws (d) and the washers (e).
(Fig. 10-12)
• Screw the supports (23) loosely onto the saw housing and onto the
table width extension or length extension (short supports for the
width extension, long supports for the length extension) (Fig. 13-14)
• Align the table width extension and length extension level with the
saw table (1).
• Finally, tighten all screws.
