6.4 Parallel stop

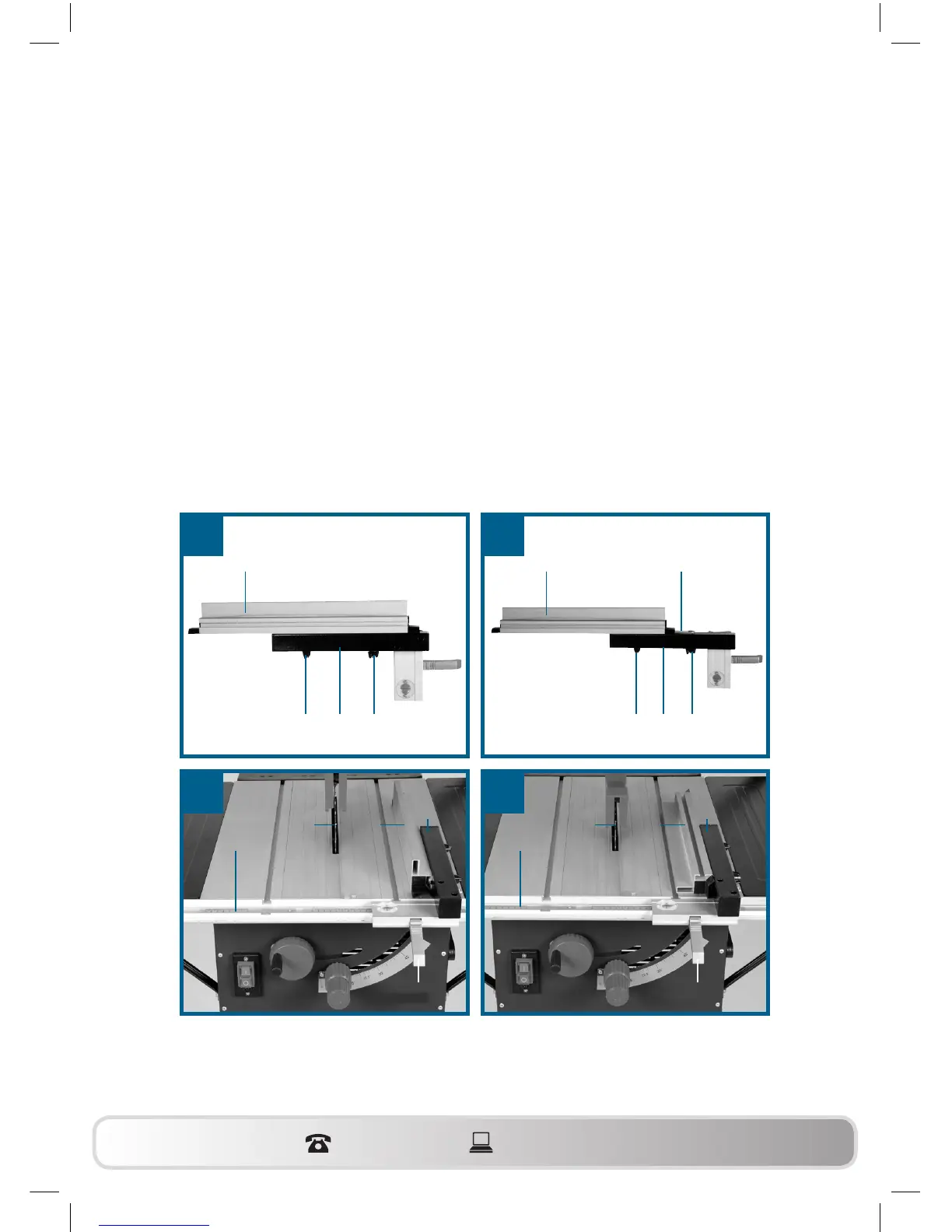

6.4.1. Stop height (Fig. 23-26)
• The stop rail (e) for the parallel stop (7) has two different guide faces
(high and low).
• For thick material you must use the stop rail (e) as shown in Fig. 25,
for thin material (with a workpiece thickness of less than 25 mm) you
must use the stop rail as shown in Fig. 26.
6.4.2. Turning the stop rail (Fig. 23-26)
• First undo the wing nuts (f) to turn the stop rail (e).
• The stop rail (e) can now by pulled off the guide rail (h) and can be
pushed back over it with the appropriate guide.
• Retighten the wing nuts (f).
23 24
25 26
e
f
e h
f 7 ff 7
5
12
e
7
28
5
12
e
7
28
