WZTS 1700
09/2012

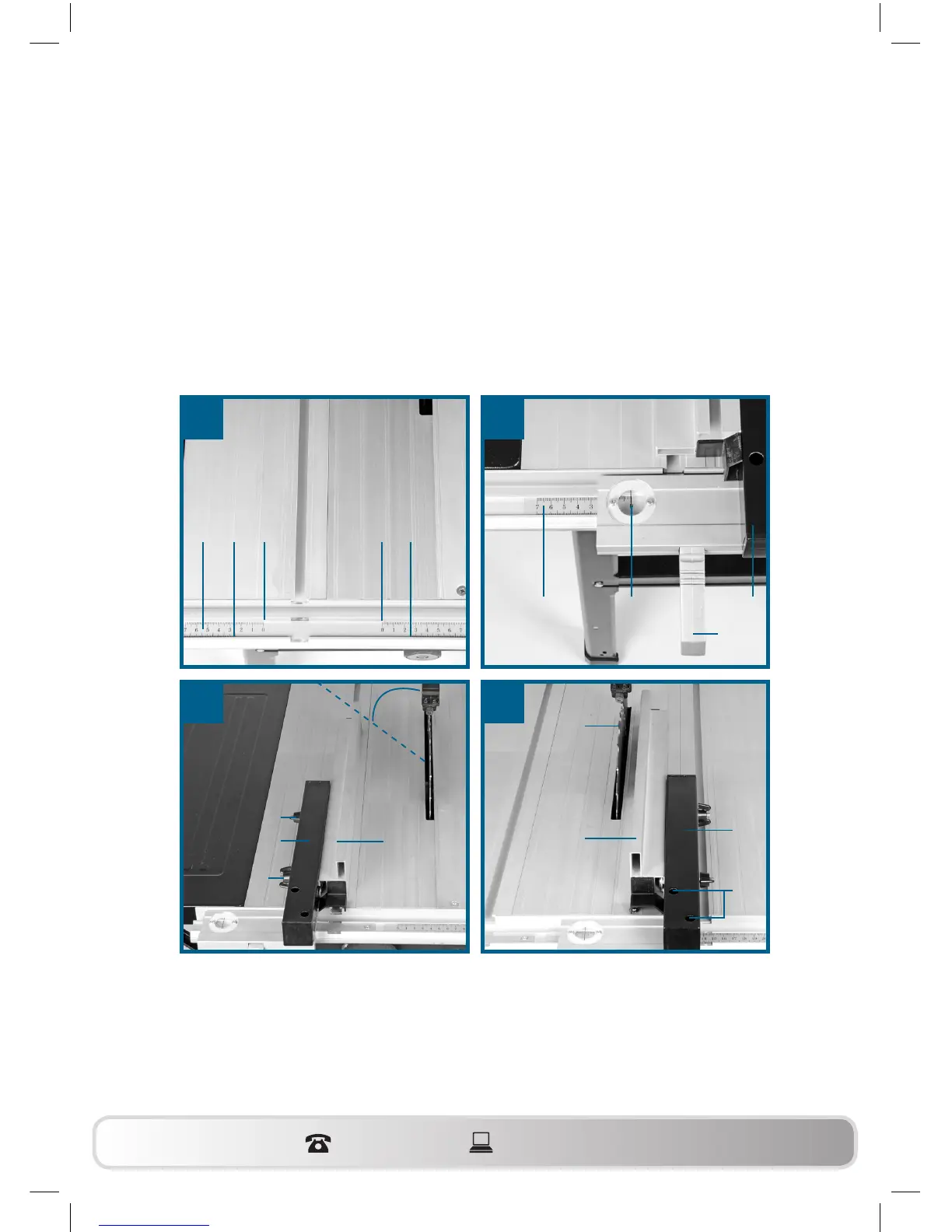

6.5 Adjusting the parallel stop (Fig. 30)
• Set the saw blade to the maximum cutting depth (refer to point 6.2).
• Set the parallel stop (7) so that the stop rail (e) touches the saw blade
(5) (setting for thick material refer to point 6.4).
• If the parallel stop (7) is not in line with the saw blade (5), undo the
screws (m) until the parallel stop (7) can be adjusted in line with the
saw blade (5) (Fig. 30).
• Re-tighten the screws (m).
27 28
29 30
12 jk kj
12
28
l 7
f
7
e
f
45°
5
m
7
e
