WPI EVOM - Plate Selection Page and Plate Preview

12 World Precision Instruments
• Short Electrodes – Shorts V
1
-V
2.
and is used to nullify the galvanic charge in the
electrodes when the electrodes are placed in a saline solution for 4–8 hours to
remove the charge. See also "Probe Null" on page 15.
• Date/Time – Select the Date and Time formats for your data les.
• Calibrate – Calibrate the electrode. (This uses a 10K Ω 0.1% resistor.) See
"Instrument Diagnostics and Calibration" on page 25.
• Probe Null – Neutralize the oset charge on V
1
-V
2..
• Store Screen– Store data les, congure how the les are named and if they are
automatically numbered.

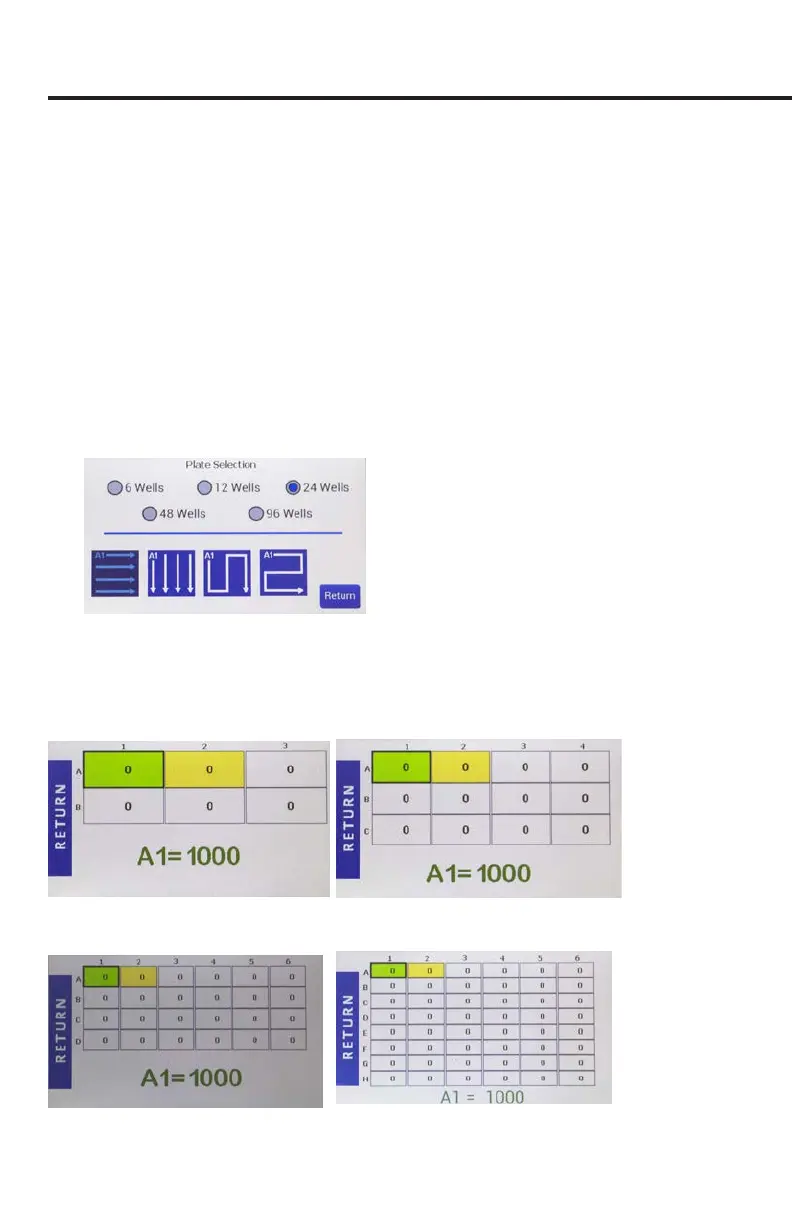

Plate Selection Page and Plate Preview
1. Press Select Plate on the Setup page to access the Plate Selection screen.
Fig. 7—Choose the number of wells and the sampling pattern.
2. Select the radio button for the number of wells in your plate.
3. Select the sampling pattern from the options in the bottom half of the window.
4. Press Return to save the setup. When you press Preview from the main screen
you will see the plate preview les like the samples below.
Fig. 8—(Left) 6-well plate preview
Fig. 9—(Right) 12-well plate preview
Fig. 10—(Left) 24-well plate preview
Fig. 11—(Right) 48-well plate preview
