OPERATING INSTRUCTIONS
3 Coin operation or free play?
Both coin operation or free play are adjustable at the “Selection & Credit Computer”-unit. It is located
at the RH side of the cabinet. Special jumpers (short wires, located in the accessory pack of the ma-
nual ) are used to set prices on the SCC-unit. As long as no jumper is set in row GP from 0 to F and
the jumper in row GP+6 is not removed (free play) the jukebox works with coins only.
3.1 Coin operation

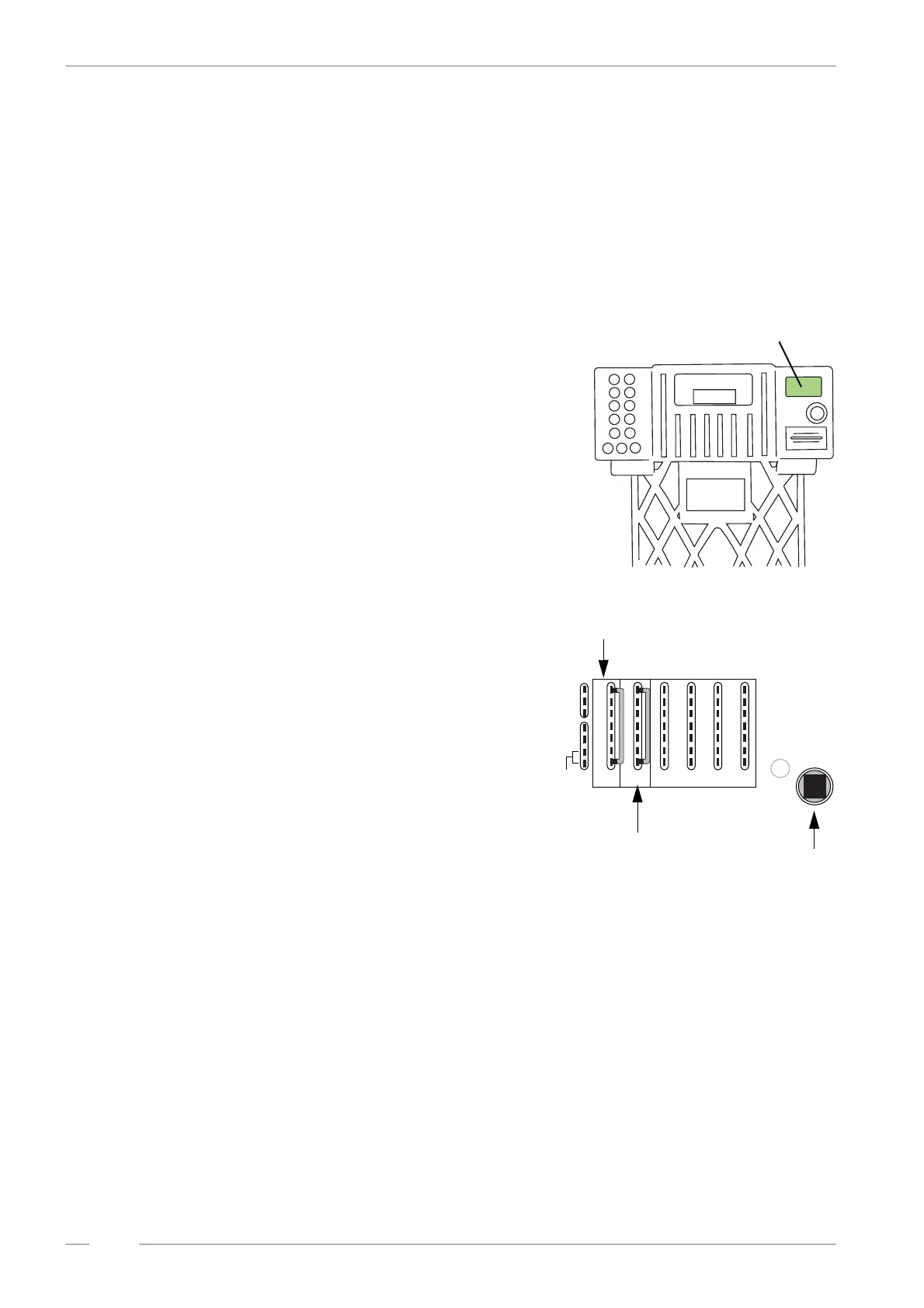

From factory the jukebox is set to coin operation. If you in-
sert a certain number of coins according the denomina-
tion label, the jukebox gives the credits or plays it is
adjusted for. If you want to change the play prices you
have to change the jumper settings on the SCC-unit.
3.2 Free play
To set the jukebox to free play:
1. Remove all the jumpers on the SCC unit taking note
of current setting for future reference.
2. Set a jumper from 0 to F (free play) in the row GP on
the S&CC unit.
3. Press ‘LT’ button.
4. Now one track is selectable without coin insertion.
5. From two to six tracks are selectable by setting an
additionally jumper in the row ‘BS’ (Bonus Step) from
0 to 2 up to 0 to 6.
6. Up to 47 tracks are pre-selectable by setting a jumper in this row ‘BS from 0 to 7.
