11.6 Connecting external speakers in operating mode 2-CHANNEL

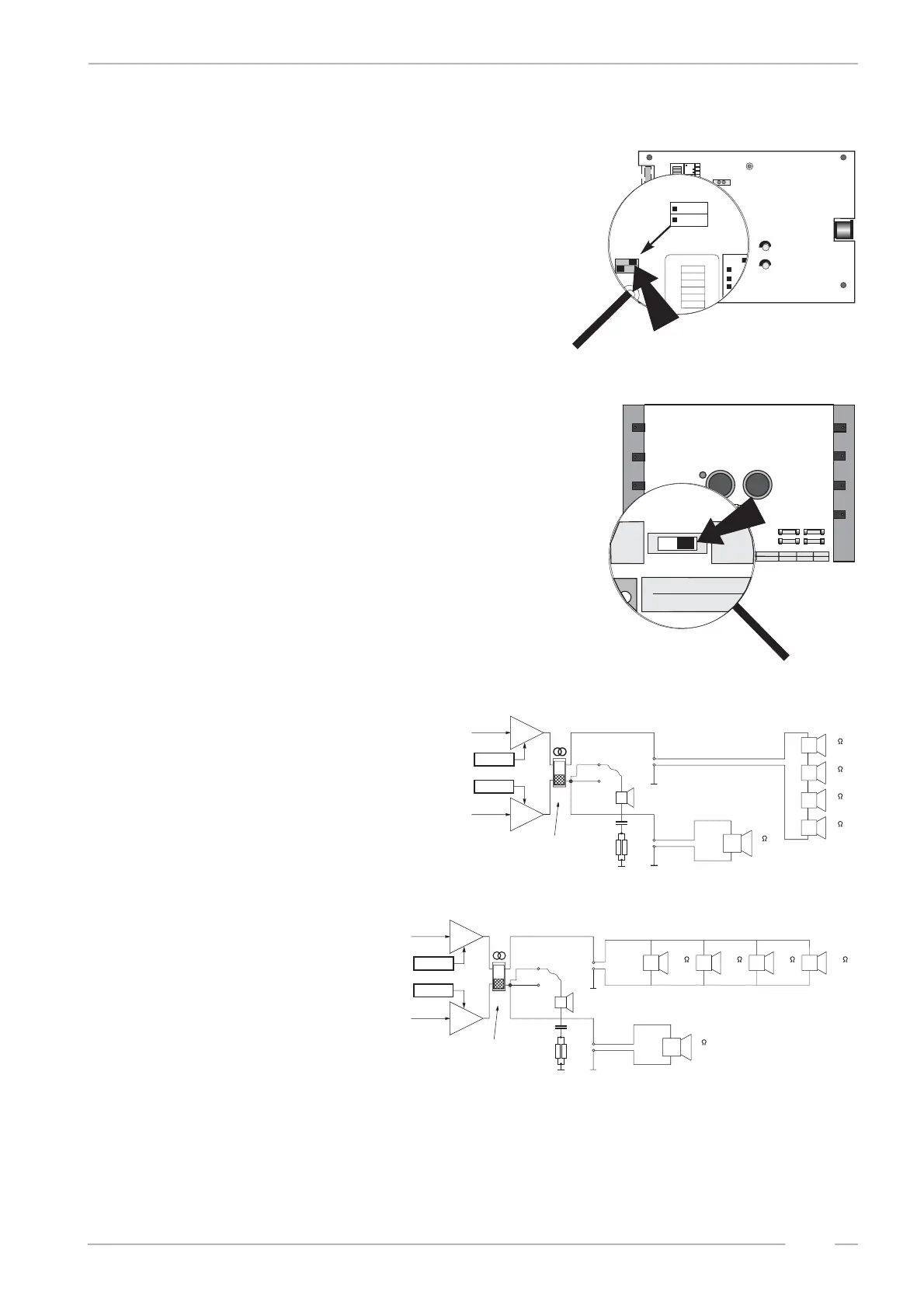

For 2-CHANNEL operation both amplifier switches, the
mode switch and the slide switch S1 on the power am-
plifier board are set to position 2-CHANNEL.
As the following examples show, in the 2-CHANNEL
mode it is possible to connect different loads to each
amplifier output. Take care that the min. impedance is
4Ω per channel.
Example 1:
1st room a speaker of 4Ω
200W, 2nd room 4speaker of
2Ω 30W connected in series
Example 2:
1st room a speaker of 4Ω
200W, 2nd room 4speaker of
16Ω 50W connected in parallel
