6.2 Volume, sound and balance control - amplifier K99
Volume control
You can control the volume of the juke-
box from different points at the same
time:

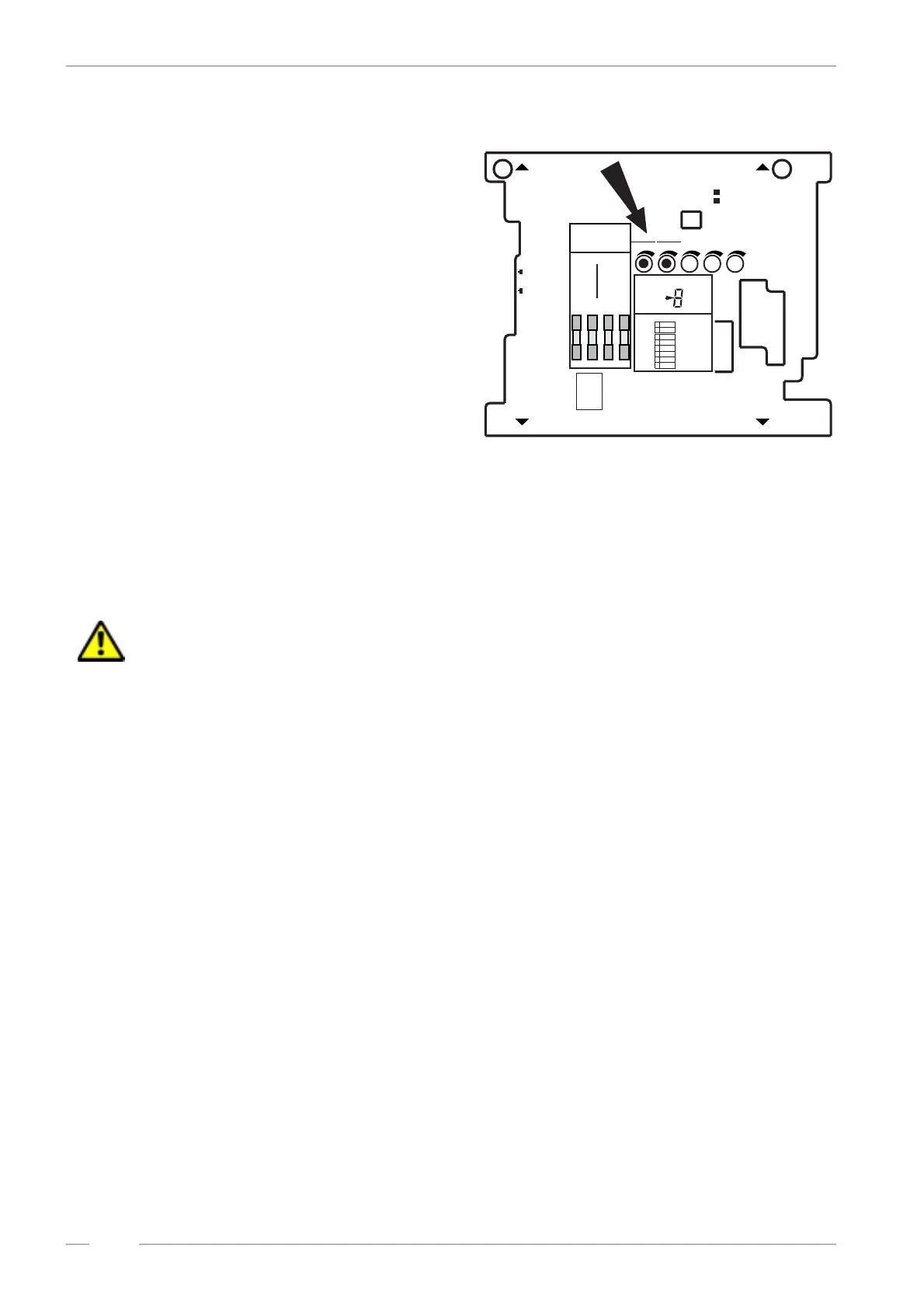

! With the pots Vol.1 and Vol.2 on the
amplifier.
! With the IR remote control.
! With the pots of the control box at the
rear side of the jukebox.
The device from which the volume is
changed determines it.
The volume control unit can be taken out
and may be mounted at another place as
a remote control. Its cable may be exten-
ded as required with any kind of wire. The voltages of the control wires are 5V DC.
The control box has two volume knobs (Intern / Channel 1 and Extern / Channel 2). In position ”Ste-
reo” the knob “Intern / Channel 1” is effective for the internal speakers. The knob Extern / Channel 2
is controlling the volume of the RCA outputs for an optional external amplifier. In DIP switch position
”2 Channel” the channels1 (RH) and 2 (LH) are controlled separately.
ATTENTION! The pots Vol. 1 and Vol. 2 on the amplifier are not effective if the wire control
box is connected.
Treble and bass control
You can control the sound with the knobs bass and treble on the amplifier.
Automatic volume control
The AVC sets CDs with different volume levels to an equal level. The level of CDs with a high level
will be reduced; the level of low-levelled CDs will be increased. This control works rather slow to
save the dynamic range of the track. You can enable the correction with the DIP switch “AVC” (the
3rd DIP swich of the 6 sw. group). Default is AVC disabled.
With the second DIP switch of the 6 sw. group you can reduce the intensity of volume correction.
