Service data, level 4 button 8
PRINCESS – Edition: 17.02.2005
63
FIELD SERVICE MANUAL
Procedure step codes for ‘CD to turntable’:
Procedure step codes for ‘CD to magazine’:
14.1.2 Counter for complete mechanism cycles
After the end of each replacing procedure the counter will be incremented. This information given in
the steps 11 and 12 of service level 4 button 8 will be displayed with 8 digits. Because of a four digit
display, this value will be displayed in two parts the 4 higher and the 4 lower digits. To display the
complete value:

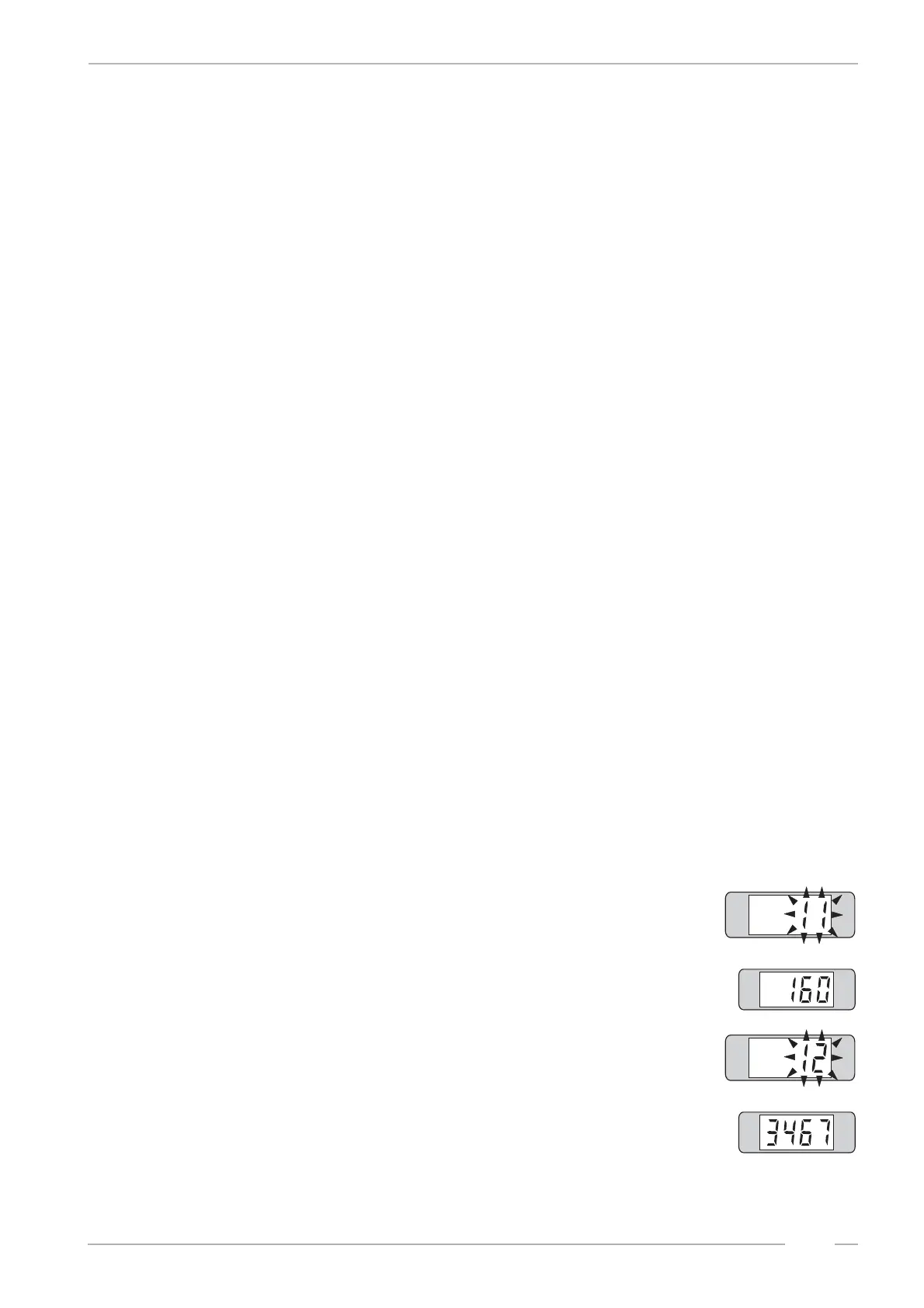

1. Press selection button 8 as often as, display shows flashing:
# 11 = next displayed value are the 4 high value digits of the mecha-
nism counter
then e.g.
# value, means 1 60 0000
2. Press selection button 8 again, display shows flashing:
# 12 = next displayed value are the 4 low value digits of the mecha-
nism counter
then e.g.
# value, means 3 467
In this example the machine has placed and replaced the CDs 1,603,467 times.
in rest in action meaning
32 160 selection sledge has reached the vertical ‘take out position’
33 161 open gripper (before taking a CD)
34 162 move gripper into magazine
35 163 close gripper (get a CD)
36 164 get a CD from magazine and move to the vertical transport level (LH or RH side)
37 165 move the CD player - move sledge to player unit
38 166 move gripper to the horizontal player position
39 167 move sledge with CD to the player
40 168 open gripper (release CD)
41 169 move gripper out of player range
42 170 fix the CD with the puck
43 CD on player, end of procedure
in rest in action meaning
16 144 get vertical sledge position over the player
17 145 move gripper horizontal to take the CD
18 146 close gripper
19 147 lift CD
20 148 move to vertical transport level
21 149 move sledge to magazine return position
22 150 move gripper with CD into magazine
23 151 open gripper
24 152 move gripper out of magazine
25 153 move sledge to 0-position
26 CD is taken back, end of procedure
