E EXAMPLE USING THE HYPER TERMINAL OF WINDOWS OR WINDOWS TERMINAL PROGRAM
(E
XAMPLE IS WIN XP)

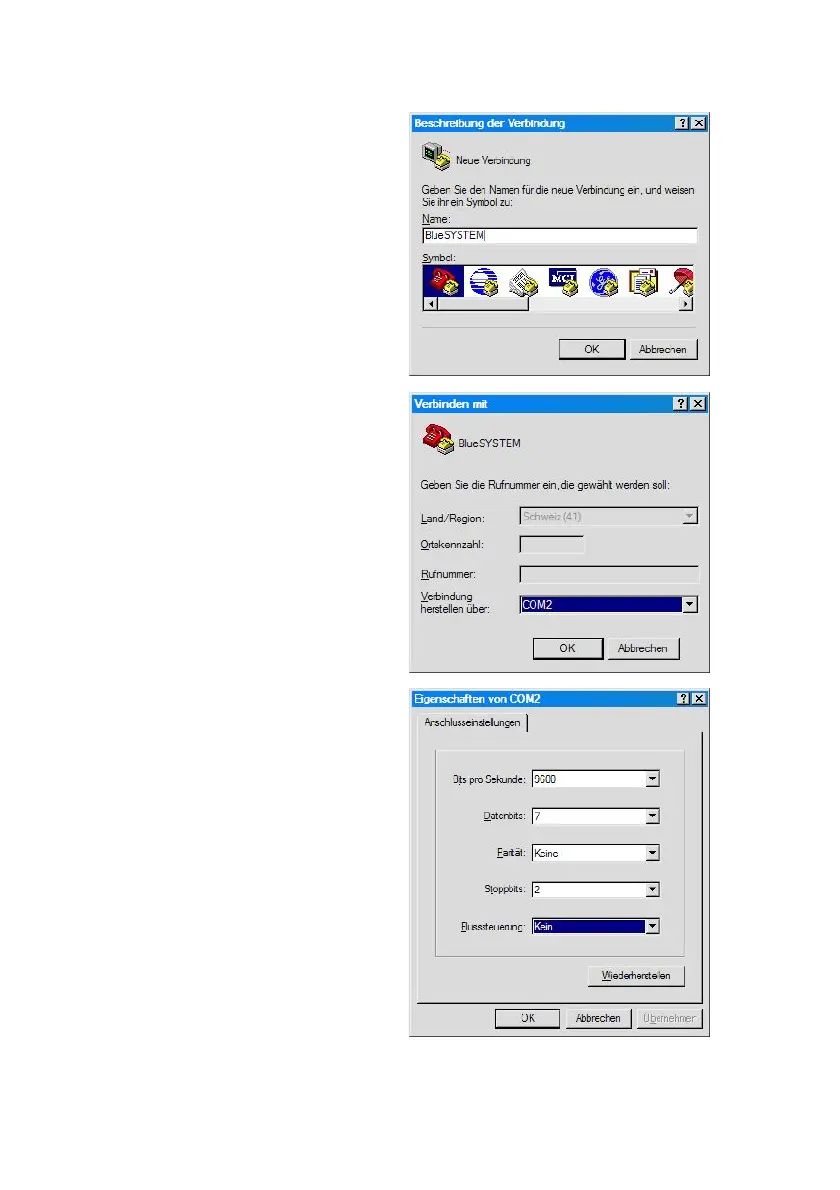

1. Open the Terminal-Program in
Windows / Accessories. and insert a
name
Confirm with <OK>
2. Enter the serial port definition
connected to the BlueMETER
BASIC.
Confirm with <OK>
3. Enter the parameters
Bits per Second: 9600
Data bits: 7
Parity: no
Stop bits: 2
Protocol: no
Confirm with <OK>
The HyperTerminal-Window appears.
Repeatedly pressing the key
<SEND/ESC> the actual value will be
transmitted in [Rad]
Alternatively the value can be called
by pressing the key "P" on the PC
keyboard.
