XCT80 Truck Crane Operation Manual
6-13
The components and functions of lower crane portion

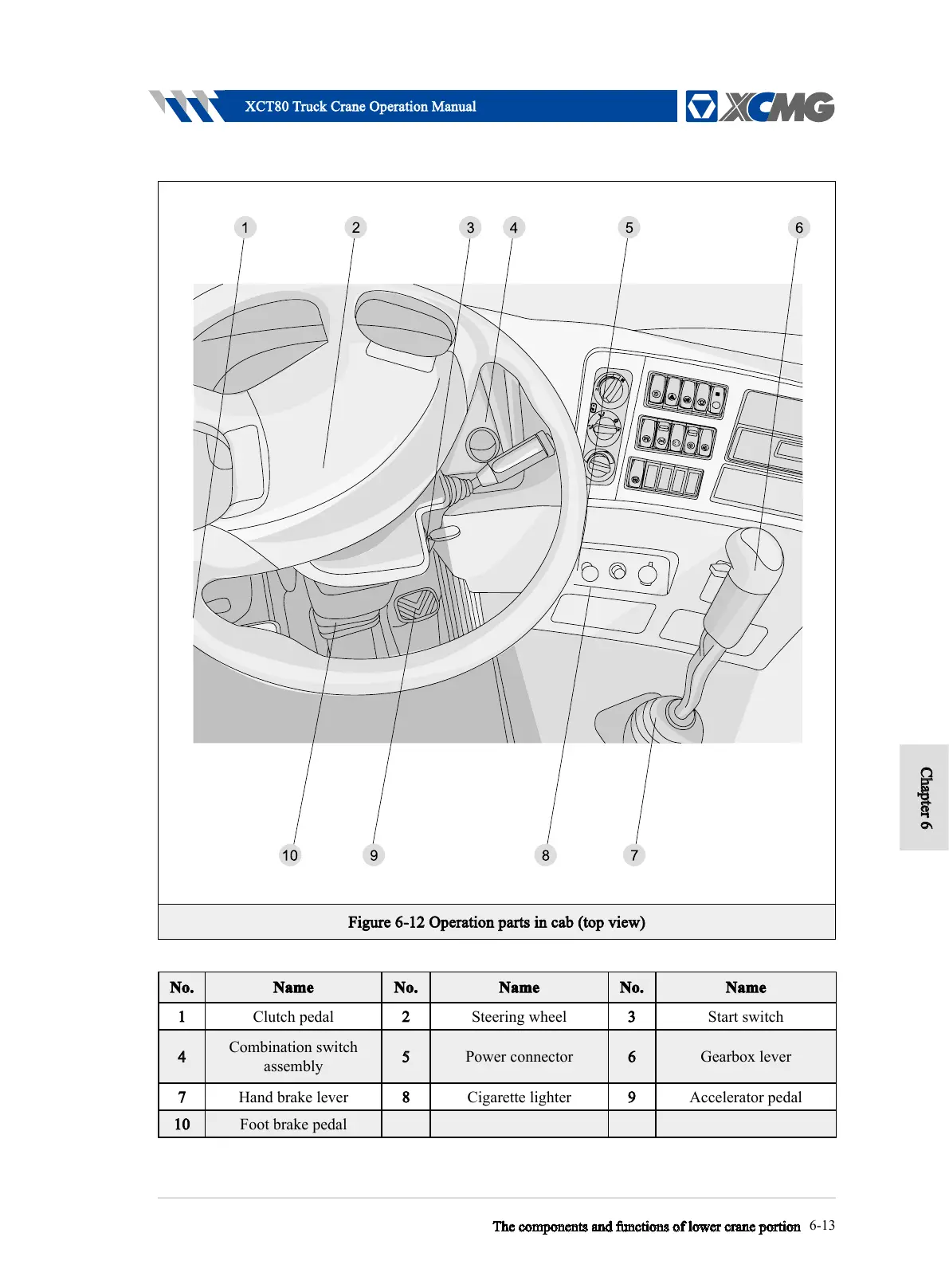

Figure 6-12 Operation parts in cab (top view)
Chapter 6
No. Name No. Name No. Name
1 Clutch pedal 2 Steering wheel 3 Start switch
4
Combination switch
assembly
5 Power connector 6 Gearbox lever
7 Hand brake lever 8 Cigarette lighter 9 Accelerator pedal
10 Foot brake pedal
