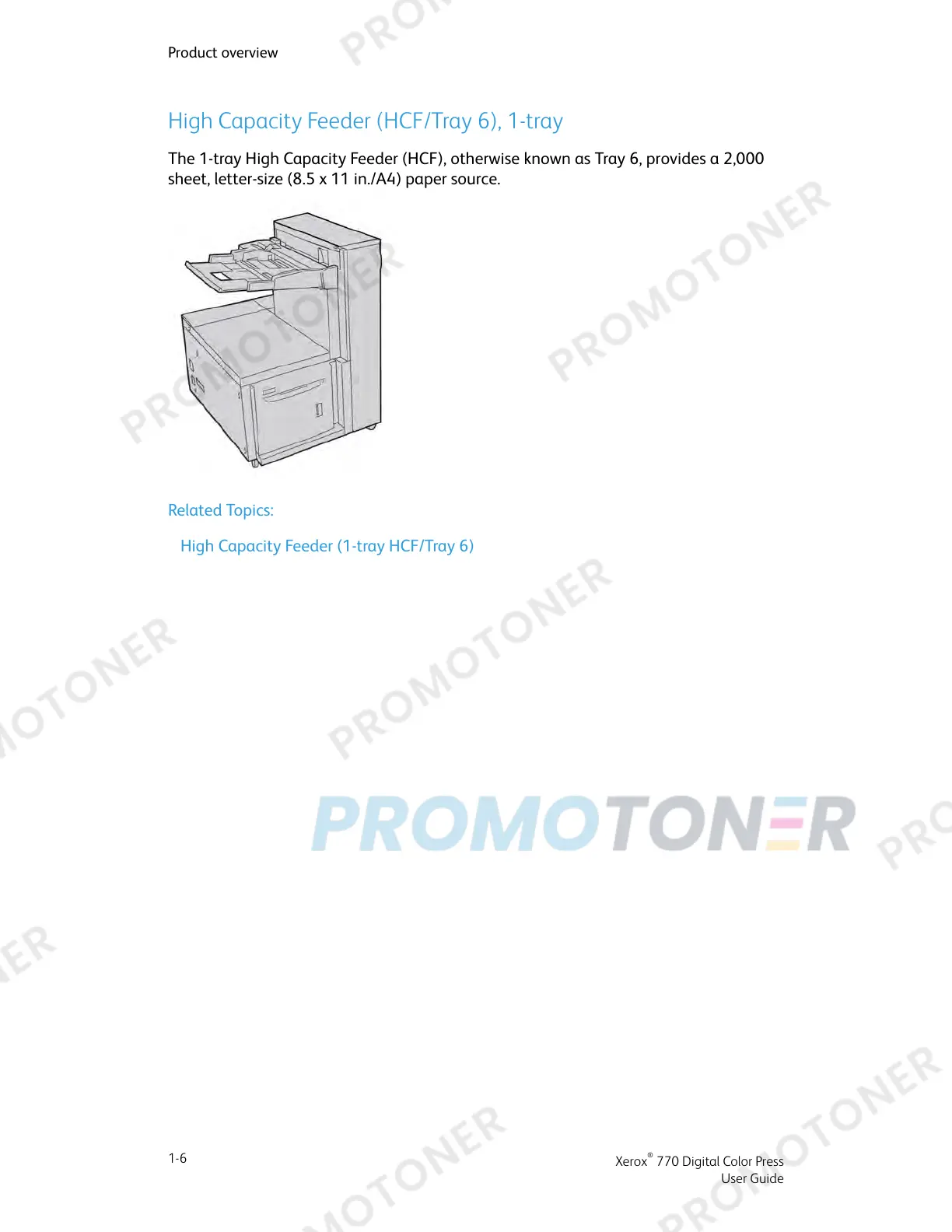

High C
apacity F
eeder (HCF/T
r
ay 6), 1-tr
ay
The 1-tr
a
y High C
apacity F
eeder (HCF), otherwise kno
wn as T
r
a
y 6, pr
o
vides a 2,000
sheet, lett
er-size (8.5 x 11 in./A4) paper sour
ce.
R
elat
ed T
opics:
High C
apacity F
eeder (1-tr
a
y HCF/T
r
a
y 6)
X
erox
®
770 Digit
al C
olor P
ress
1-
6
User Guide
P
r
oduc
t o
v
erview
15
17
Table of Contents
Table of Contents
3
Product Overview
11
Introduction
11
Machine Components
11
Bypass Tray (Tray 5)
13
Document Feeder
13
User Interface (UI)
14
Print Server Overview
15
Feeding and Finishing Devices
15
High Capacity Feeder (Hcf/Tray 6), 1-Tray
16
Oversized High Capacity Feeder (OHCF), 1 or 2-Trays
17
GBC Advancedpunch
18
Interface Module
18
High Capacity Stacker (HCS)
19
Standard/Booklet Maker Finisher
20
Squarefold Trimmer Module
21
Third-Party Finishing Devices
21
Power On/Off
21
Power on
21
Power off
22
Power Saver
22
Locating the Machine Serial Number
22
Where to Find Help
23
Customer Documentation CD/DVD
23
Print Server Customer Documentation
23
Help on the World Wide Web
23
Submitting a Print Job
25
Printing from Your Computer
25
Printing from the Xerox Freeflow Print Server
25
Printing from the Xerox EX Print Server, Powered by EFI
26
Paper and Other Media
27
Loading Media in Trays 1, 2, and 3
27
Loading Paper in Trays 1, 2, and 3
27
Loading Tab Stock in Trays 1, 2, and 3
28
Loading Transparencies in Trays 1, 2, and 3
29
Loading Pre-Drilled Stock in Trays 1, 2, and 3
30
Loading Media in the Bypass Tray
31
Loading Paper in the Bypass Tray (Tray 5)
31
Loading Tab Stock in the Bypass Tray (Tray 5)
32
Loading Transparencies in the Bypass Tray (Tray 5)
33
Loading Pre-Drilled Stock in the Bypass Tray (Tray 5)
34
Loading Media in Optional Feeding Devices
35
Loading Post-Process Media in Optional Finishing Devices
35
Loading Tab Stock with the GBC Advancedpunch
36
Copy
37
Basic Copy Using the Document Feeder
37
Basic Copy Using the Document Glass
38
Copy Tab
39
Copy > Reduce/Enlarge
39
Reduce/Enlarge more Options
40
Copy > Paper Supply
40
Copy > Output Color
41
Image Quality Tab
41
Image Quality > Original Type
42
Image Quality > Image Options
42
Image Quality > Image Enhancement
43
Image Quality > Color Effects
43
Image Quality > Color Balance
44
Image Quality > Color Shift
44
Layout Adjustment Tab
44
Layout Adjustment > Book Copying
45
Layout Adjustment > 2 Sided Book Copying
46
Layout Adjustment > Original Size
46
Layout Adjustment > Edge Erase
47
Layout Adjustment > Image Shift
47
Layout Adjustment > Image Rotation
48
Layout Adjustment > Invert Image
49
Layout Adjustment > Original Orientation
49
Output Format Tab
50
Output Format > 2 Sided Copying
51
Output Format > Copy Output
52
Output Format > Booklet Creation
53
Output Format > Covers
55
Output Format > Transparency Options
59
Output Format > Page Layout
60
Output Format > Poster
61
Output Format > Annotations
61
Output Format > Watermark
62
Output Format > Secure/Hybrid Watermark (Optional)
62
Output Format > Tab Margin Shift
63
Output Format > Face Up/Down Output
64
Output Format > Folding (Optional)
64
Output Format > ID Card Copy
66
Job Assembly Tab
67
Job Assembly > Build Job
67
Job Assembly > Sample Job
68
Job Assembly > Combine Original Sets
69
Job Assembly > Delete Outside/Delete Inside
70
Network Scanning
71
Overview of Network Scanning
71
Templates (Network Scanning)
72
Scan Procedure
72
Job Status
75
Job Status Overview
75
Active Jobs Tab
75
Completed Jobs Tab
75
Secure Print Jobs & more Tab
76
Secure Print
76
Sample Set
77
Delayed Print
77
Machine Status
79
Machine Status Overview
79
Machine Information Tab
79
Faults Tab
80
Supplies Tab
81
Billing Information Tab
81
Accessing Billing Information
81
Billing Meters/Usage Counters
81
Usage Counters
82
User Account Billing Information
82
Tools Tab
83
Changing the Paper Tray Attributes
83
Maintenance
85
Cleaning the Machine
85
Cleaning the Exterior
86
Cleaning the Document Cover and Glass
86
Cleaning the Document Feeder Rollers
89
Replacing Consumable Supplies
90
Ordering Supplies
90
Checking the Status of Crus
91
Replacing a Toner Cartridge
92
Replacing the Toner Waste Bottle
94
Replacing a Drum Cartridge
95
Replacing the Charge Corotron
100
Replacing the Fuser
104
Problem Solving
109
Paper Jams
109
Document Feeder Jams
109
Document Jams under the Document Feeder Belt
112
Lower Left Cover Jams
113
Main Unit Jams
114
Paper Jams in Trays 1-3
116
Paper Jams in the Bypass (Tray 5)
117
Envelope Jams in the Bypass Tray
118
Inverter Jams (Bottom Right Cover)
118
Fault Codes
120
General Problems
135
Other Faults
136
Image Quality
137
Hints and Tips
142
Fuser Hints and Tips
142
Miscellaneous Hints and Tips
143
Specifications
145
Print Engine Specifications
145
Additional Optional Accessories
146
High Capacity Feeder (1-Tray Hcf/Tray 6)
147
HCF (Tray 6) Overview
147
Loading Paper in the HCF (Tray 6)
147
Problem Solving
149
Clearing Paper Jams in Tray 6 (1-Tray HCF)
149
HCF (Tray 6) and Lower Left Cover Jams
150
HCF (1 Tray) Fault Codes
152
Oversized High Capacity Feeder (OHCF), 1 or 2 Trays (Trays 6/7)
157
Postcard Bracket
157
Using the Postcard Bracket
158
Loading Media in the 1 or 2-Tray OHCF
160
Loading Paper in the OHCF (1 or 2 Trays)
160
Loading Tabs in the OHCF (1 or 2 Trays)
160
Loading Transparencies in the OHCF (1 or 2 Trays)
161
Print Jobs
162
Print Jobs
163
Skew Adjustment Levers
164
OHCF Problem Solving
165
Clearing OHCF Jams
165
Paper Jams Inside the OHCF Trays
166
OHCF Paper Jams at Lever 1A and Knob 1C
167
OHCF Paper Jams at Lever 1B and Knob 1C
168
OHCF Paper Jams at Lever 1D and Knob 1C
169
OHCF Fault Codes
170
OHCF Specifications
172
Interface Module
173
Overview
173
Control Panel
174
Paper Path
175
Paper Curl Settings on the Interface Module
175
Preset Decurler Settings
175
Manual Decurler Buttons
175
Internal Spectrophotometer (ILS)
176
Problem Solving
176
Clearing Jams
176
Paper Jams at Lever 1A
177
Paper Jams at Lever 2A
178
Paper Jams at Lever 2B
179
Fault Codes
181
High Capacity Stacker (HCS)
183
Overview
183
Identifying the Components
184
Control Panel
185
HCS Top Tray
185
Unloading the Stacker Tray
186
Problem Solving
187
General Problems
187
Jam Clearance
187
HCS Entrance Jams (E1, E2, and E3)
187
HCS Transport Jams (E4, E5, and E6)
188
HCS Top Tray Jam (E7)
190
HCS Exit Jam (E8)
191
Hints and Tips for Using the HCS
192
Loss of Power
192
Fault Codes
193
Specifications
197
Standard/Booklet Maker Finisher
199
Manual Decurling Feature on the Finisher
201
Folding Feature
202
Fold Types
202
Maintenance
204
Standard/Booklet Maker Consumable Supplies
204
Replace the Standard Staple Cartridge
205
Replace the Booklet Staple Cartridge
206
Replacing the Staple Waste Container on the Finisher
208
Empty the Punch Waste Container
210
Finisher Problem Solving
212
Paper Jams in Tray 8 (Post-Process Inserter)
212
Paper Jams at Lever 1A and Knob 1C
213
Paper Jams at Lever 1D
214
Paper Jams at Lever 1B
215
Paper Jams at Lever 3B and 3D
216
Paper Jams at Lever 3E and Knob 3C
217
Paper Jams at Lever 3G and Knob 3F
219
Paper Jams at Lever 4B and Knob 3A
220
Paper Jams at Lever 2A and Knob 3A
221
Paper Jams at Lever 2B and Knob 2C
222
Paper Jams at 2C, 2E, 2F, and 2D
223
Paper Jams at 2D and Lever 2G
224
Paper Jams at Unit 4 and Knob 4A
225
Paper Jams at Finisher Top Tray
226
Paper Jams at Finisher Stacker Tray
227
Paper Jams at the Optional Booklet Maker Tray
228
Stapler Faults
229
Staple Jams in the Standard Staple Cartridge
230
Staple Jams in the Booklet Maker Cartridge
231
Reinserting the Standard Staple Cartridge
233
Fault Codes
235
Specifications
237
Standard/Booklet Maker Finisher
237
Optional C/Z Folder
240
Squarefold Trimmer Module
241
Overview
241
Identifying the Components
242
Main Components
242
Paper Path
243
Control Panel
244
Square Fold Feature
244
Square Fold Options
245
Accessing the Square Fold Options
246
Accessing the Square Fold Options for Network Print Jobs
246
Accessing the Square Fold Options for Copy Jobs
247
Trimmer Feature
247
Trimmer Options
247
Trim Guidelines
249
Accessing the Trimmer Options
250
Accessing the Trimmer Options for Network Print Jobs
250
Accessing the Trimmer Options for Copy Jobs
250
Hints and Tips
251
Printing Full-Page Images on Booklets
251
Follow These Tips
252
Problem Solving
252
Jam Clearance
252
Clearing Jams
253
Clearing E1/E2 Jams
253
Clearing E3 Jams
255
Fault Codes
256
Technical Data
259
