1. Setting up the DocuColor 2006 Installing the Scanner
1-46 Xerox DocuColor 2006

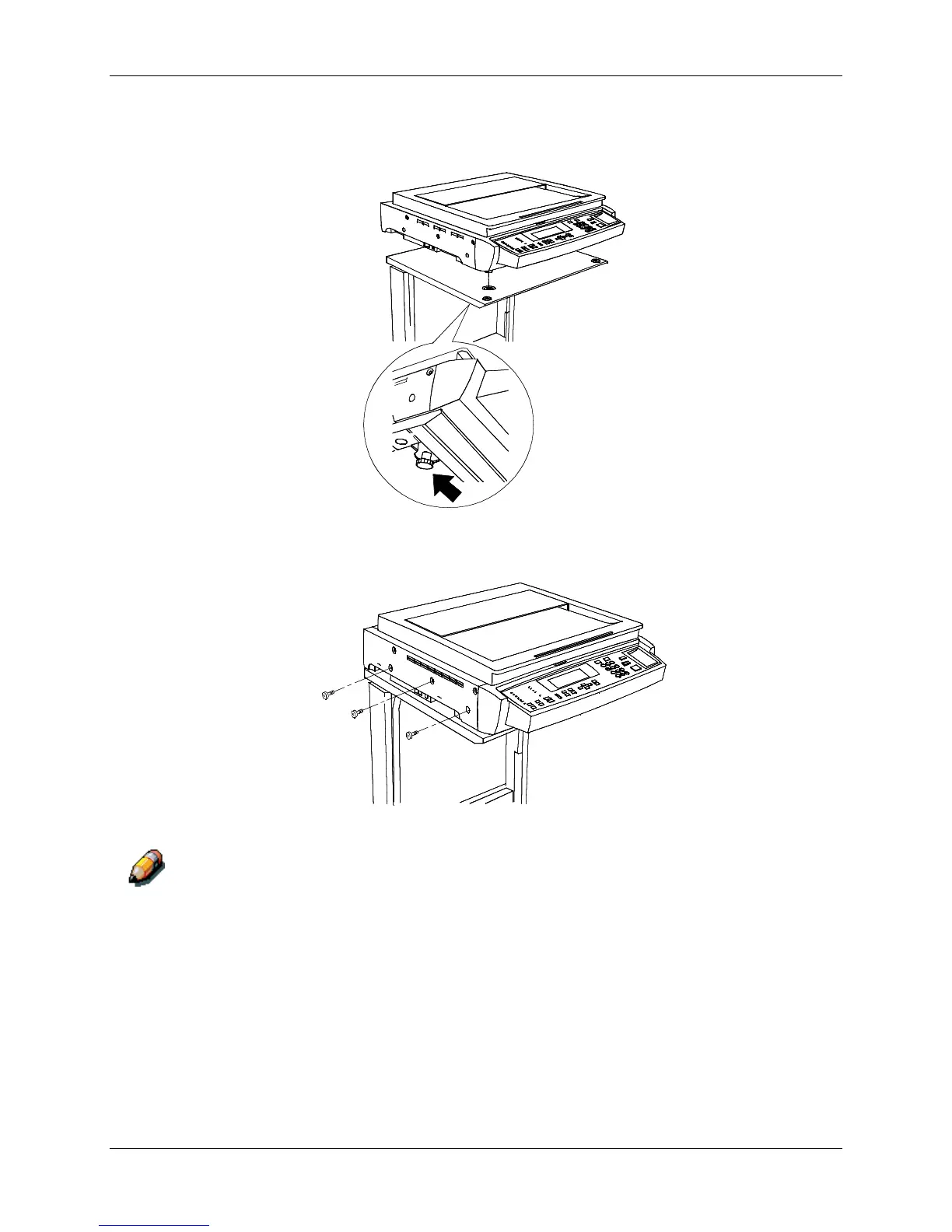

7. Tighten the thumbscrew, shown below, in order to secure the Scanner to
the stand.
301046a
8. Remove the three screws from the right-hand side of the Scanner.
301132a
Please store these screws in a safe place, or tape them to the rear of the
Scanner Stand. The screws lock the Scanner Drive into a secure position.
You will need them if the Scanner has to be moved.
