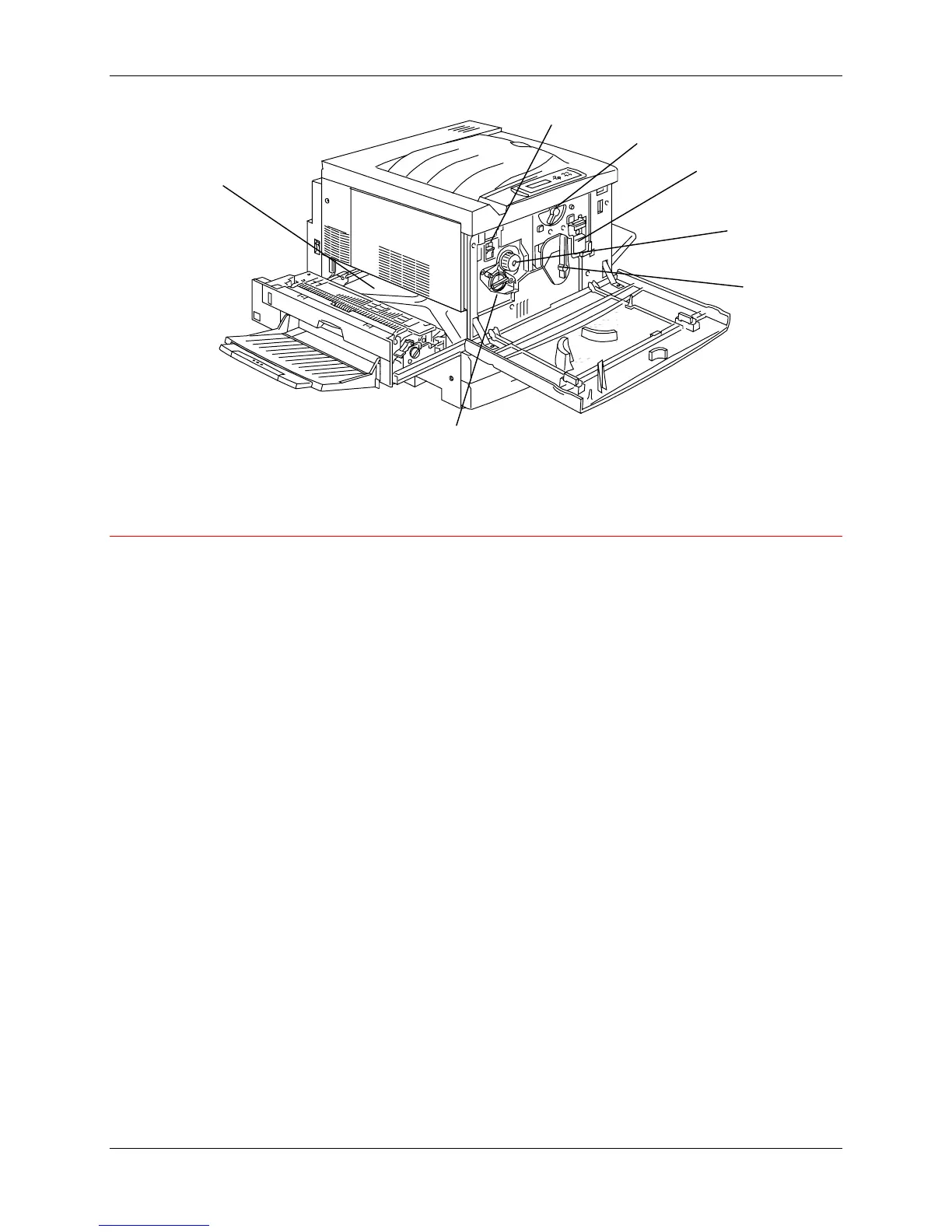

Printer, Internal View
17. Dry Ink Carrousel access – the four Dry Ink Cartridges are installed
one at a time, through this opening
18. Fuser jam clearance area – the Fuser applies heat to the Dry Ink in
order to adhere it to the paper
19. Anti-rotation button – use to release the Dry Ink Carrousel in order to
remove and replace the Dry Ink Cartridges
20. Lever B – use to lock the Print/Copy cartridge in position
21. Print/Copy Cartridge – use to transfer copy/print image to media
22. Knob – use to manually turn the carrousel in order to access the Dry Ink
Cartridges
23. Lever A – the Copy/Print Cartridge is accessed through here
18
17
19
20
21
22
23
