Xerox I Class User Manual

I-Class 25

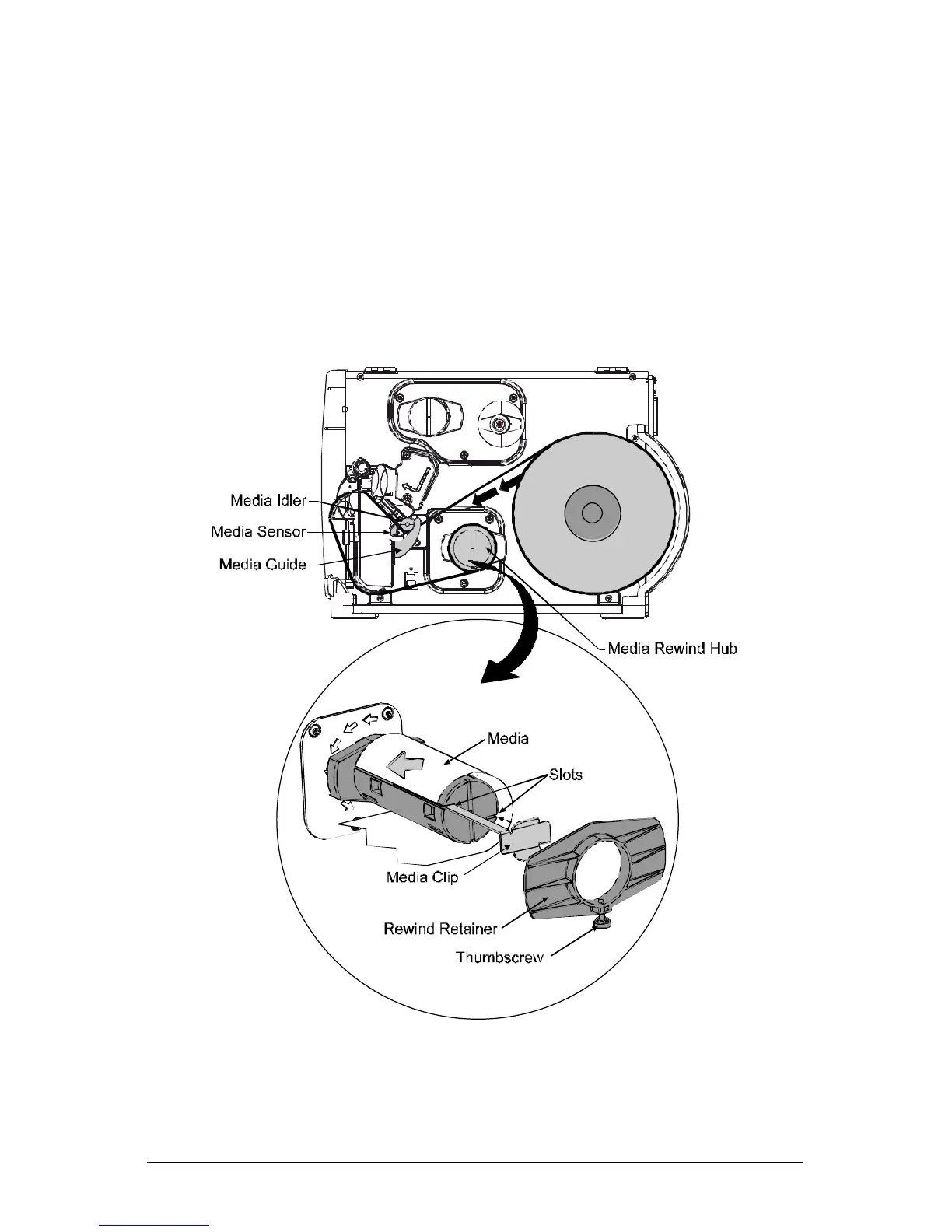

‘ Route the media back to the Media Rewind Hub, as shown below.
’ Insert the leading edge into a Slot on the Media Rewind Hub then insert the
Media Clip into a Slot to secure it in place.
“ Position the Rewind Retainer lightly against the edge of the media on the
Media Rewind Hub. Tighten the Thumbscrew to secure the retainer in
place.
” Manually rotate the Media Rewind Hub to remove any slack in the media.
Close the Access Cover.
Removal:
Remove the Rewind Retainer and Media Clip. Grasp the end of the hub. While
pulling outwardly, squeeze the hub together to collapse it and then slide off the
labels.
