26 I-Class
3.5.2 On-Demand Dispensing
When equipped with the Peel and Present option, labels are dispensed then
separated automatically from the liner for immediate application.

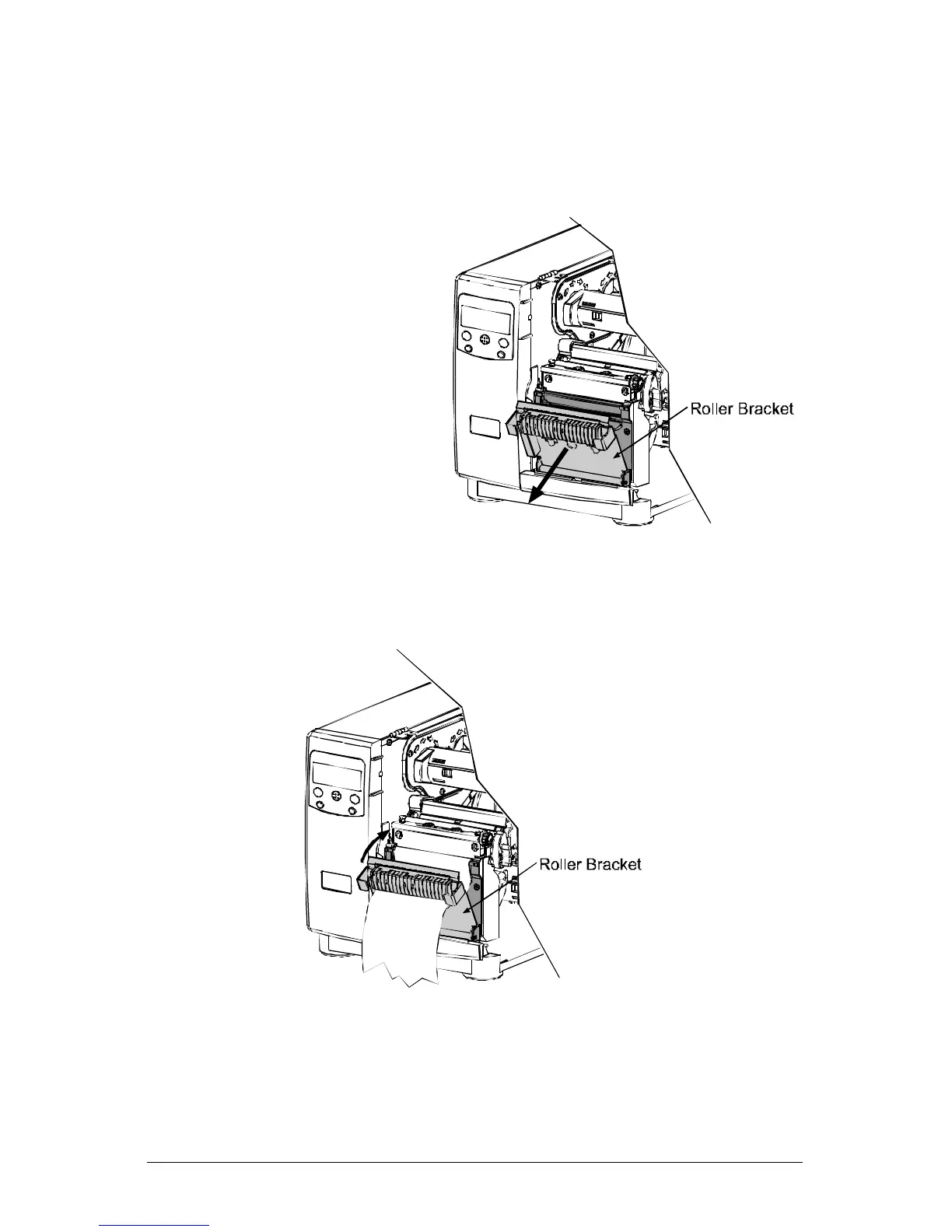

ΠWith the Peel and Present
Mechanism installed on the
printer, pull outward on the
Latch and allow the Roller
Bracket to swing forward.
• With media loaded as
described in Section 3.1, press
the FEED Key to advance
approximately 20 inches (51
cm) of media. Remove all of
the labels from the backing
material.
Ž Route the backing material through the Roller Bracket as shown (the
backing should go under the top black roller, then out).
• Raise the Roller Bracket up to its latched position.
