Machine Overview
Before you use your machine, take some time to familiarize yourself with the various features and
options.

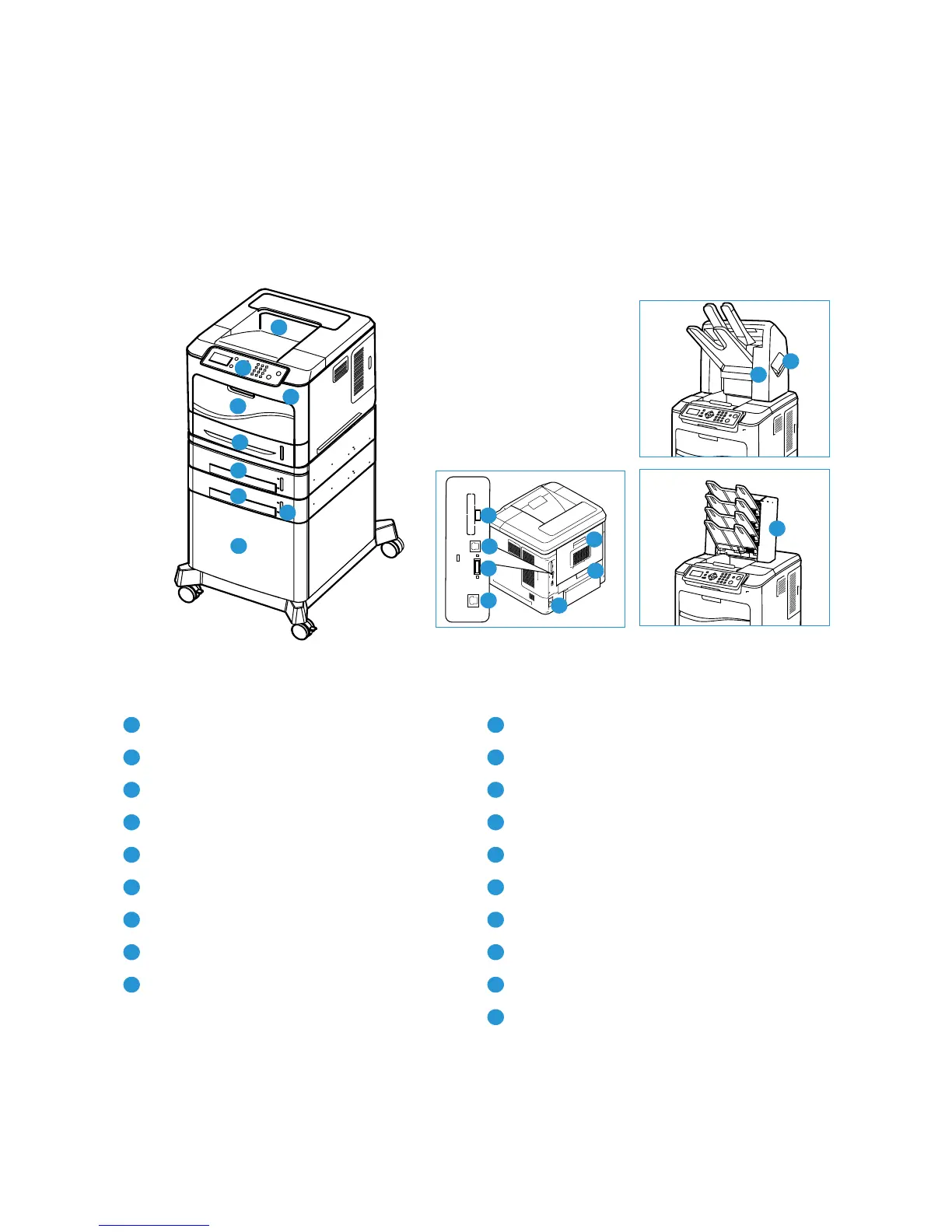

Front and Rear View
Output Tray Type A USB Port
Control Panel Type B USB Port
USB Memory Port Configuration Card Slot
Paper Tray 1 (Bypass) Ethernet Port
Paper Tray 2 Power Switch
Paper Tray 3 (Optional) Rear Door
Paper Tray 4 (Optional) Duplex Unit (Optional 4600 / Standard 4620)
Paper Level Indicator Finisher (Optional)
High Capacity Feeder (Optional) Staple Cartridge Cover
4-Bin Mailbox (Optional)
1
2
3
4
5
6
8
9
7
17
18
19
10
11
12
13
14
15
16
1 10
2 11
3 12
4 13
5 14
6 15
7 16
8 17
9 18
19
