Xerox Phaser 5335 User Manual

7.9 Cleaning the Printer 177

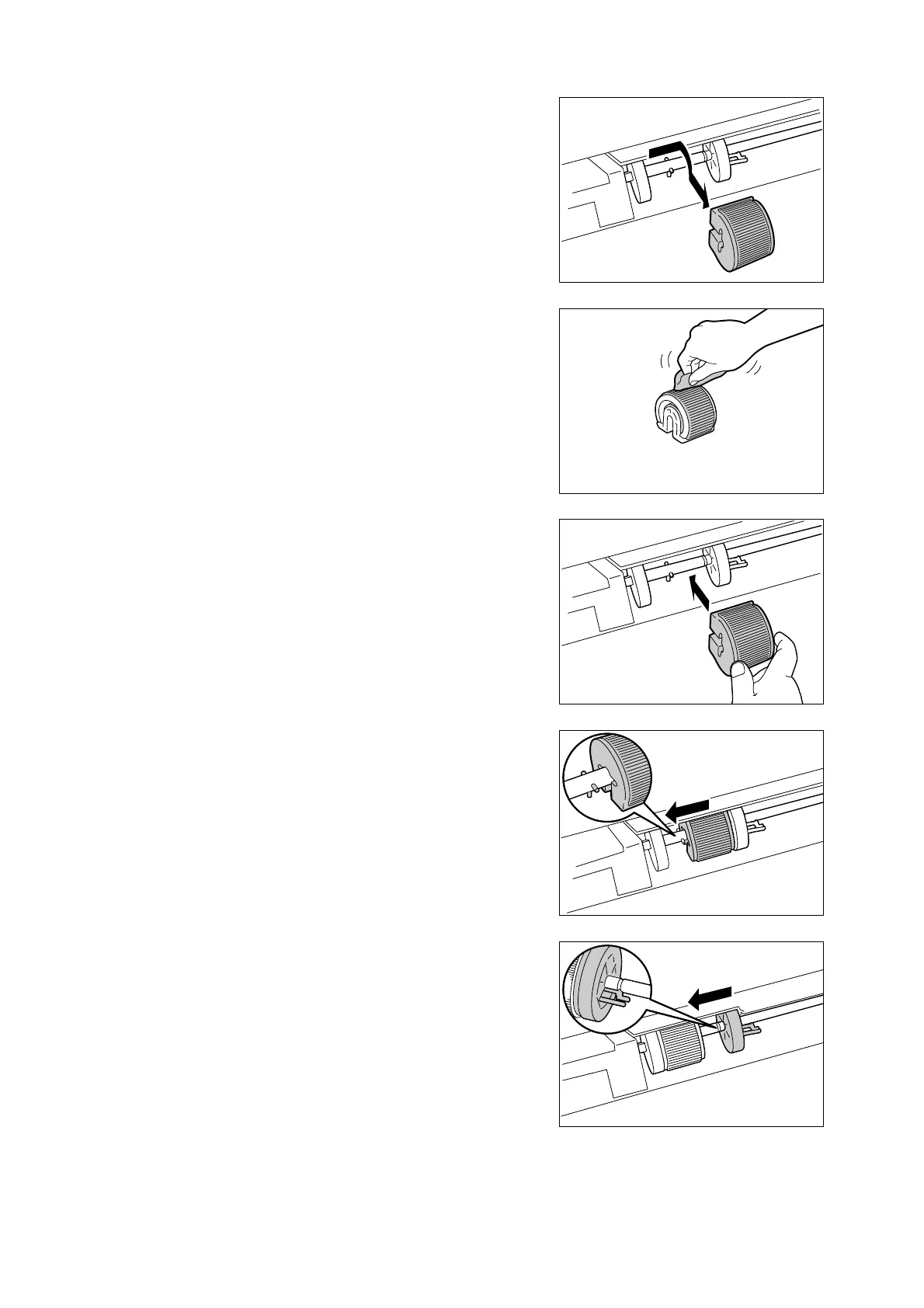

6. Slide the feed roll to the right toward the
white part, rotate it 90 degrees to the front,
and pull it out of the printer.
7. Wipe the feed roll with a soft, damp cloth
moistened with water.
8. After cleaning the feed roll, reinstall it in the
printer.
Hold the feed roll with the flat side to the
right and push it horizontally onto the shaft.
Note
• The surface of the feed roll is flat on one side and
jagged on the other side. Make sure to correctly orient
the feed roll when placing it in the printer.
9. Rotate the feed roll 90 degrees to the back
and slide it to the left so that the pins on the
shaft fit into the indentations on the feed
roll.
10. Slide the white part to the feed roll.
Slide it to the left until the tab on its right
side is inserted into the indentation on the
shaft.
