A.5 Installing Additional Memory 191

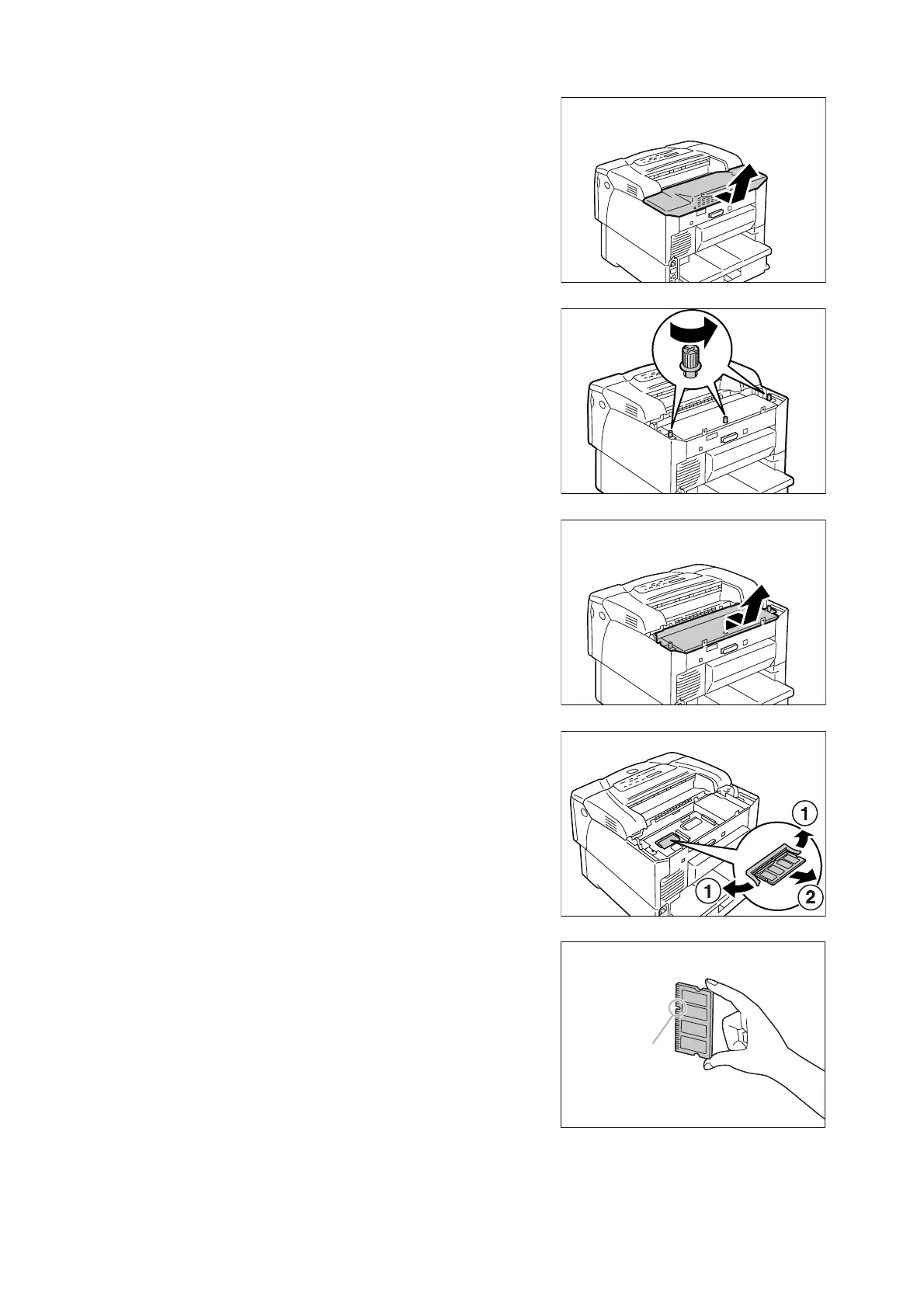

3. Pull the rear cover forward and remove it
from the printer.
4. Loosen the three screws that secure the
metal plate cover inside the printer.
5. Pull the metal plate cover forward and
remove it from the printer.
6. If a network expansion card is installed,
remove it temporarily.
7. If another memory card is already installed,
push the retaining clips on both sides in the
outward direction. After the memory card
pops up, pull it out at an angle.
8. Hold the new memory card so that the
notch on the card comes above the center
of the card.
notch
