6. To adjust the registration, touch Lead/Side Registration.
a. To adjust the side-to-side registration, for Side Registration, touch Plus (+) or Minus (-).
b. To adjust the top-to-bottom registration, for Lead Registration, touch Plus (+) or Minus (-).

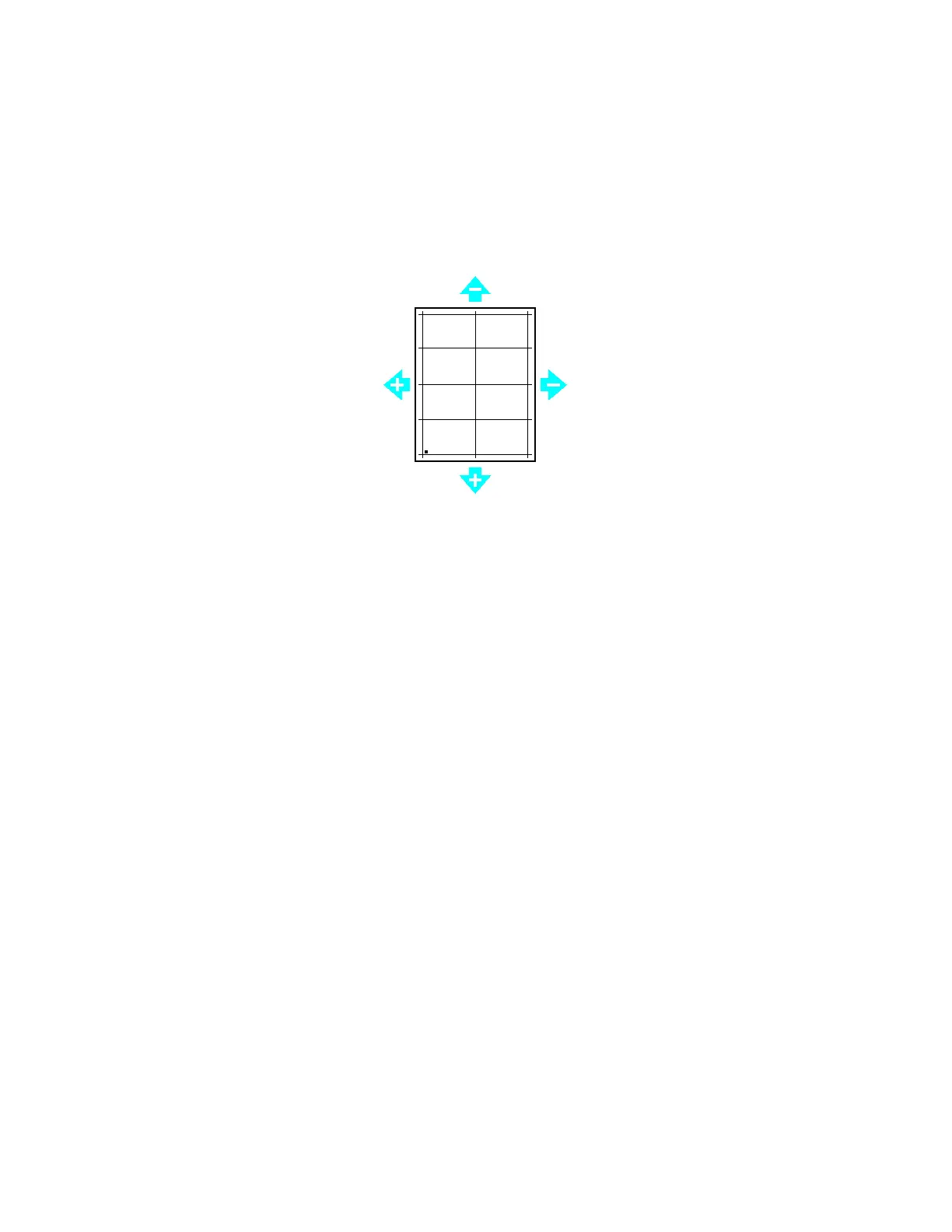

For reference, position the chart so that Side-1 or Side-2 dots are at the bottom of the page.
• For Lead Registration, a positive value shifts the image down the page.
• For Side Registration, a positive value shifts the image to the left.
7. T
o save your settings, touch OK.
8. As needed, repeat steps 4 through 6 to enter additional values.
9. Print another sample page, then repeat the process until you complete the registration corrections.
10. To return to the Home screen, press the Home button.
Adjusting the Altitude
You can use Adjust Altitude to set the altitude to match the printer location. If the altitude setting is
incorrect, it can cause print-quality problems.
To adjust the altitude:
1. At the printer control panel, press the Home button.
2. Touch Device > Support > Altitude Adjustment.
3. Touch the altitude of the location of the printer, then touch OK.
4. To return to the Home screen, press the Home button.

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
