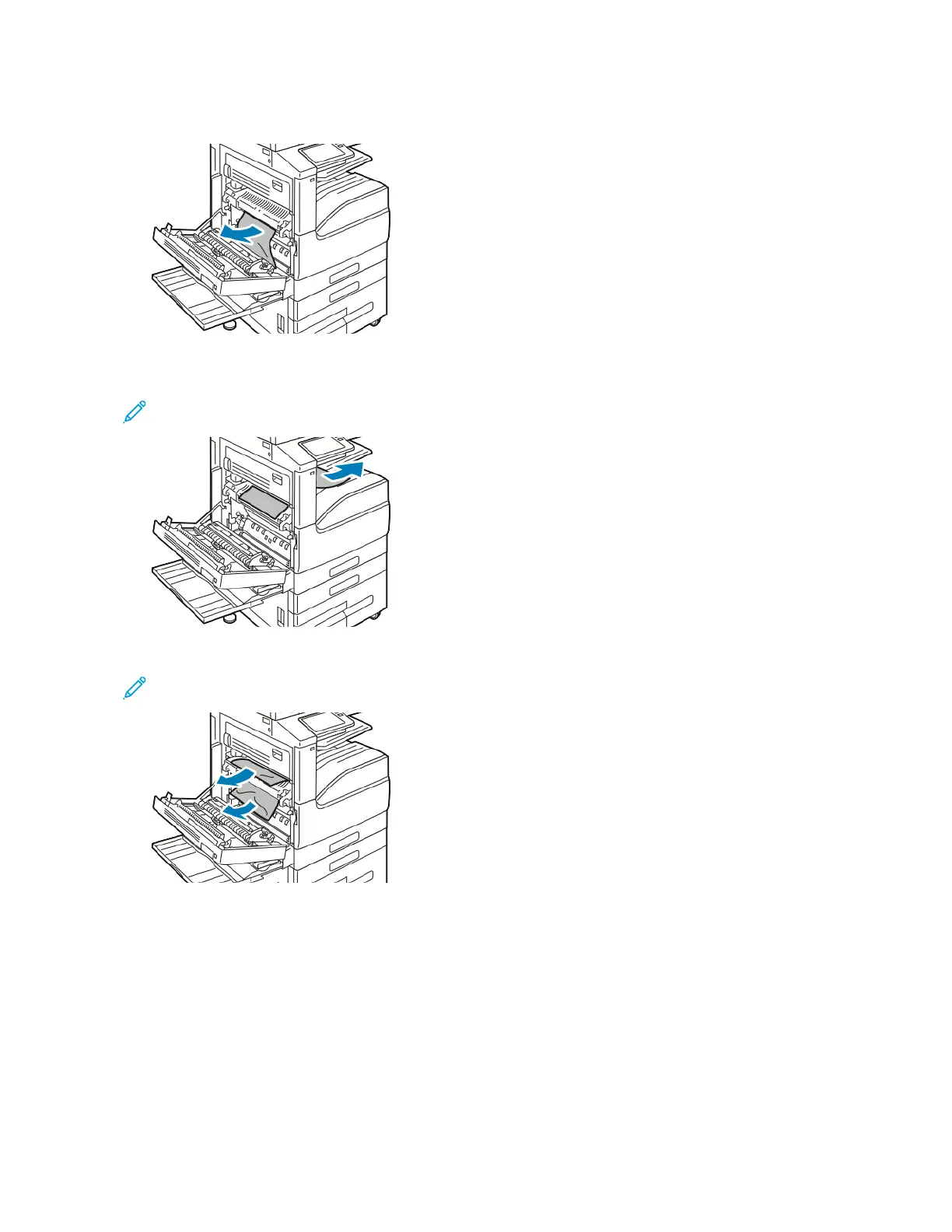

2. Remove the jammed paper.
3. If paper is jammed at the exit to the output tray, to remove it, carefully pull it straight out in the direction
shown.
Note: Toner can adhere to the transfer roller. This does not affect print quality.
4. If paper is jammed in the Fuser, remove the paper from areas A1 and A2 as shown.
Note: If the paper is torn, remove all torn pieces from the printer.
5. Close Door A and the Bypass Tray.
a. To close Door A, push the door up firmly until it clicks into place.
b. Close the Bypass Tray.
Xerox
®
VersaLink
®
B71XX Series Multifunction Printer User Guide 227
Troubleshooting
