Xerox WorkCentre 3655 - Operational Safety

5/2014
5-13
WorkCentre 3655 Multifunction Printer
PL 11.1
Parts Lists
Initial Issue - Xerox Internal Use Only
P

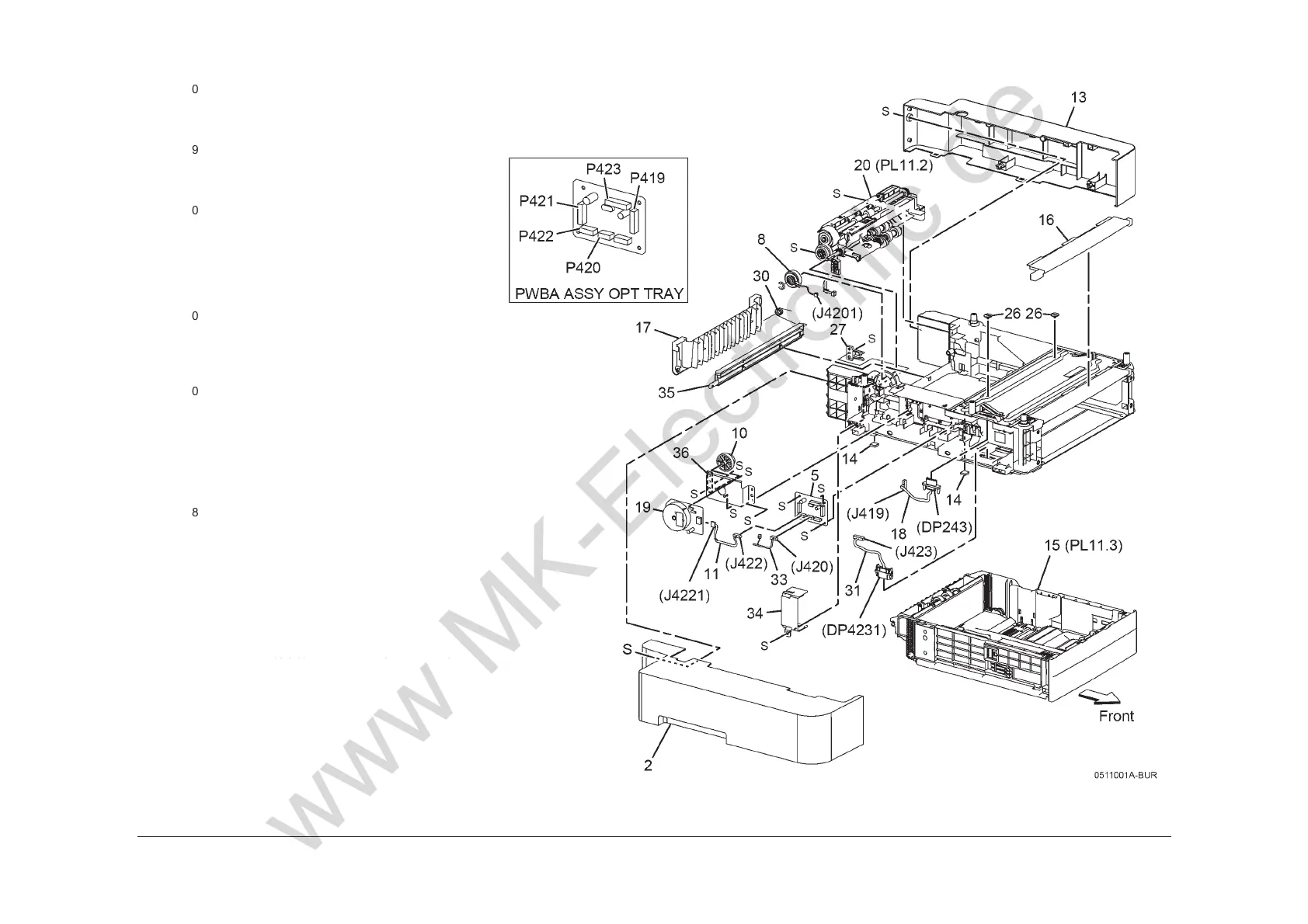

L 11.1 Option Feeder 550 (1/4)
Item Part Description
1
059K87520 (SCC) Feeder Assy OPT 550 (w/o tray)
2 – Cover Side L OPT 550
3 – --
4 – --
5 960K76390 (SCC) PWBA Assy OPT Tray
6 – --
7 – (SCC) Drive Assy OPT 550 (with
10, 19)
8 005K83210 Clutch Assy OPT Feed
9 – --
10 – Gear OPT
11 – SCC) Harness Assy Tray MOT
12 – --
13 – Cover Side R OPT 550
14 – Foot
15 050K72340 Tray Assy 550 (REF: PL 11.3)
16 – Cover-lip Top OPT
17 – Cover Rear OPT 550
18 – (SCC) Harness Assy FDR Drawer 1
19 – (SCC) Motor-assy Option
20 059K86170 Feeder Assy OPT 550 (REF: PL
11.2)
21 – --
22 – --
23 – --
24 – --
25 – --
26 – Screw Lock
27 803E10840 STOPPER CST
28 – --
29 – --
30 – Spring Cover Rear
31 – (SCC) Harness Assy FDR Drawer 2
32 – --
33 – (SCC) Harness Assy C2 Turn
34 – Bracket Rocate Pin 550
35 – Cover Rear Under OPT 550
36 – Optional Feeder Drive Motor
99 059K87520 (SCC) Feeder Assy OPT 550 AIO
without Tray
1 { 1-14, 16-36
