Xerox WorkCentre 3655 - PL 18.1 Electrical (1;4)

5/2014
5-24
WorkCentre 3655 Multifunction Printer
PL 18.1
Initial Issue - Xerox Internal Use Only
Parts Lists

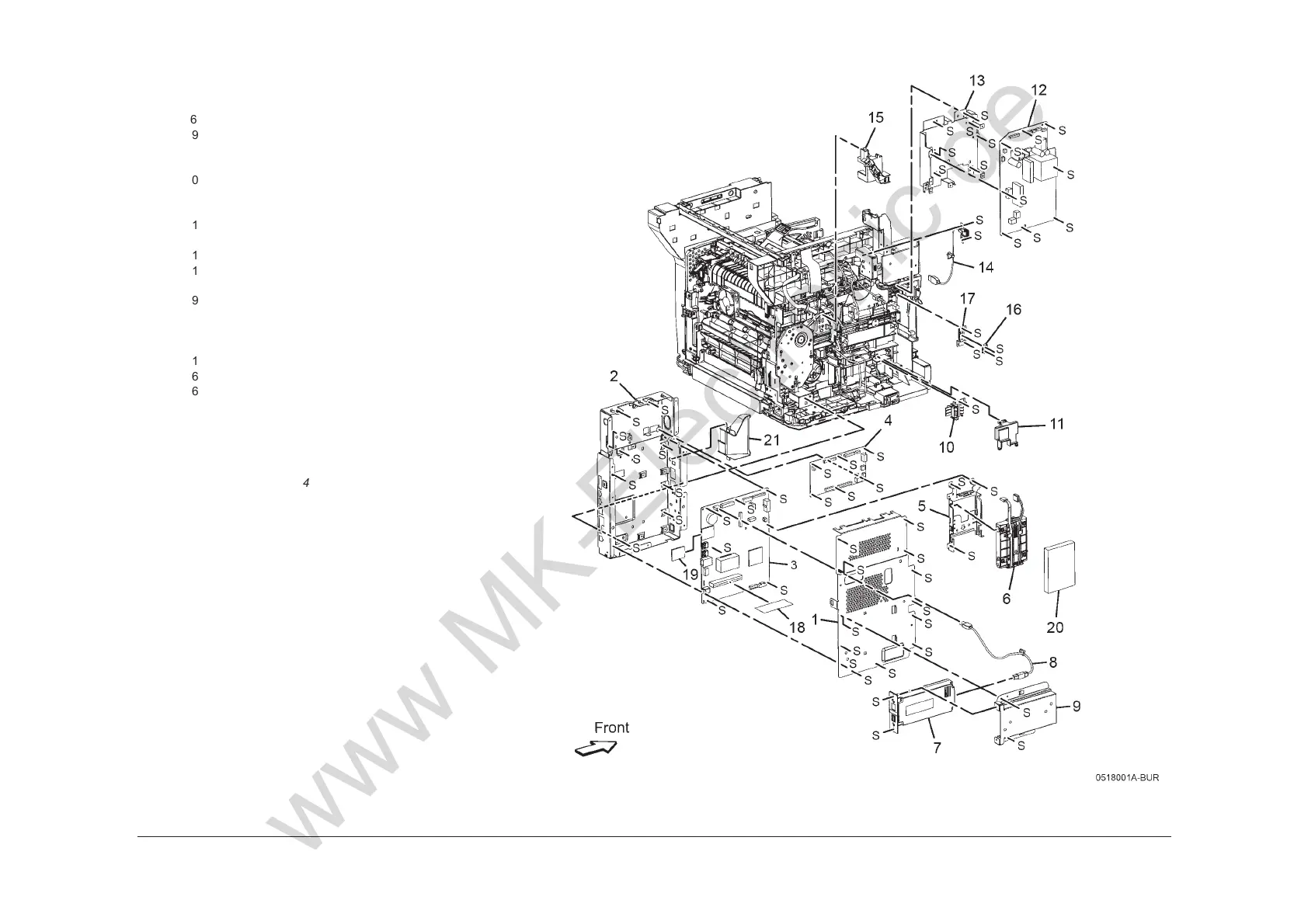

PL 18.1 Electrical (1/4)
Item Part Description
1
– Plate Window ESS IIT MCU
2 – Box ESS IIT MCU
3 604K90920 IP Board Kit (REP18.1.98)
4 960K74900 (SCC) IIT MCU Board
5 – Bracket HDD
6 – Chassis HDD
7 084K42800 Fax Board
8 – Cable Fax
9 – Bracket Fax
10 110K16610 SW Assy Size 550
11 – CVR Sensor Size
12 105K31920 (SCC) LVPS 220v
– 105K31910 (SCC) LVPS 110v
13 – Plate LVPS
14 952K17171 Side USB Assy
15 – Guide Harness Fusing
16 – SW Assy I/L
17 – Bracket I/L
18 133K27490 RAM Memory
19 604K90940 SD Card (REP 18.1.96)
20 604K90931 HDD (REP 18.1.97)
21 – Plate Assy ESS IIT-MCU
Note: If the Wireless Print Kit is defective, Sales will
need to order a replacement. 497K11500
