Xerox WorkCentre 3655 - PL 1.2 Console UI

5/2014
5-4
WorkCentre 3655 Multifunction Printer
PL 1.2
Initial Issue - Xerox Internal Use Only
Parts Lists

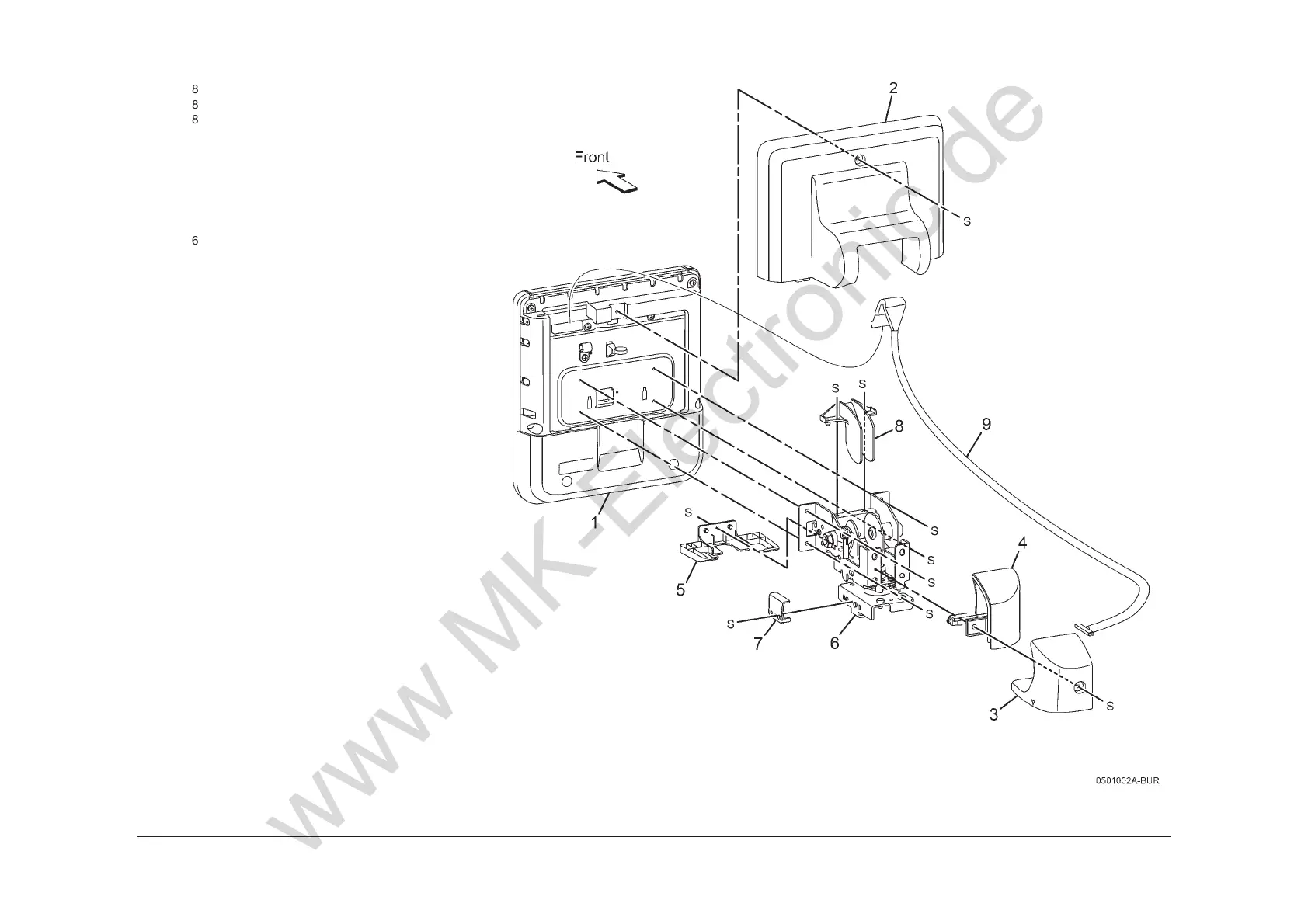

PL 1.2 Console UI
Item Part Description
1
848K91372 Console Assy UI 220v
– 848K89312 Console Assy UI 110v
2 822E09640 CVR UI Rear Upper
3 – CVR UI Hinge Left
4 – CVR UI Hinge Right
5 – CVR UI Rear Lower (p/o item 98)
6 – UI Assy Hinge Neck (p/o item 98)
7 – UI Stopper Swivel (p/o item 98)
8 – Guide UI Cable (p/o item 98)
9 – UI Cable
98 604K90601 Kit UI Assy Hinge
98 { 5-8
