Xerox WorkCentre 3655 - PL 11.2 Option Feeder 550 (2;4)

5/2014
5-14
WorkCentre 3655 Multifunction Printer
PL 11.2
Initial Issue - Xerox Internal Use Only
Parts Lists

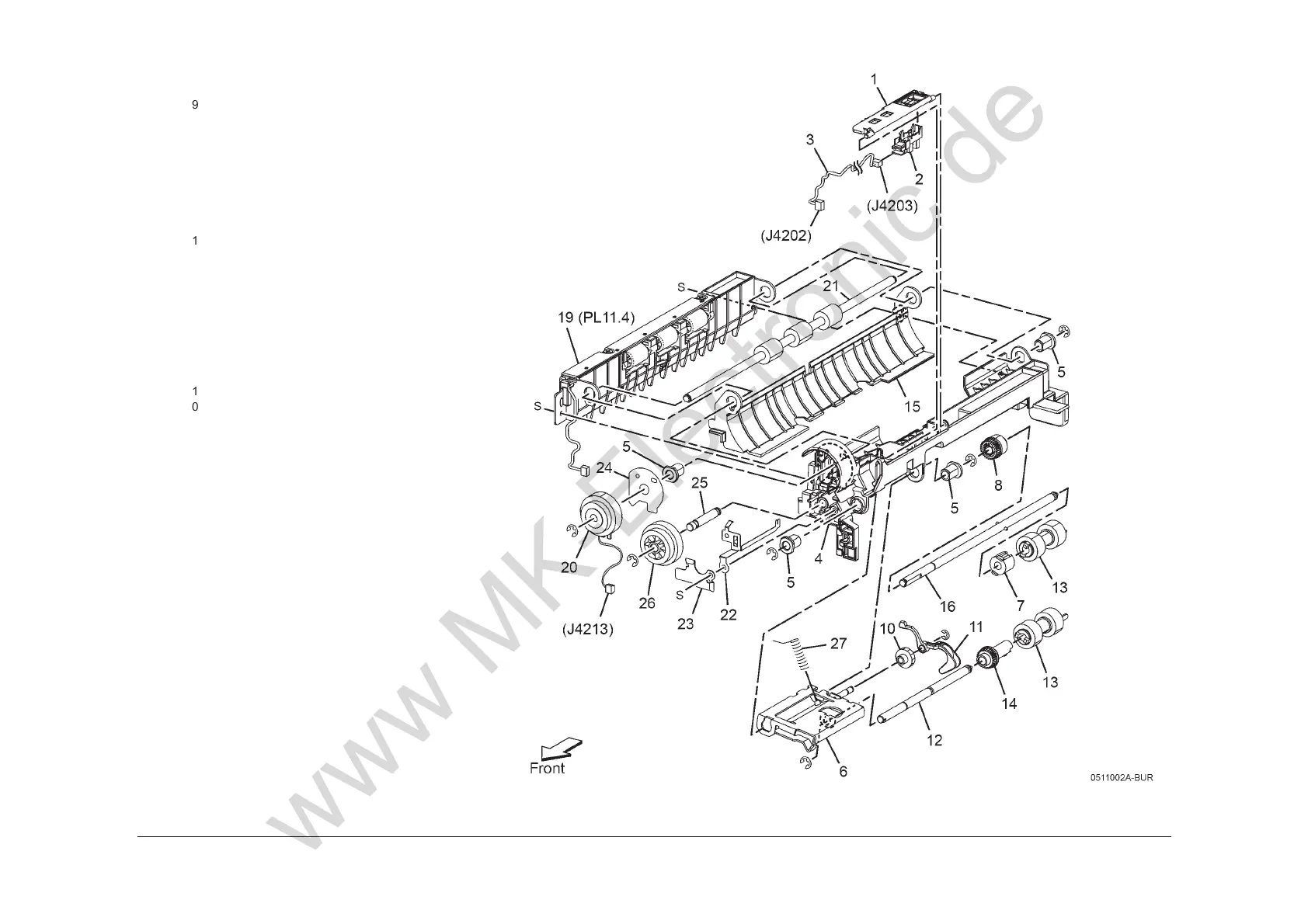

PL 11.2 Option Feeder 550 (2/4)
Item Part Description
1
– Cover Sensor No Paper
2 930W00123 No Paper Sensor
3 – Harness Assy OPT No paper
4 – Chute-upper OPT 550
5 – Bearing Nudger
6 – Support Assy Nudger
7 – (SCC) Clutch One way Feed
8 – Gear Feed
9 – --
10 – Gear Idler Nudger
11 120E33253 Actuator No Paper
12 – Shaft Nudger
13 – Roll Assy Feed (see PL 11.3.98)
14 – Gear Nudger
15 – Chute-lower OPT 550
16 – Shaft Assy-feed 550
17 – --
18 – --
19 – Chute Assy Pinch 550 (see PL 11.4)
20 121K48670 Clutch Assy Registration
21 059K71770 Roll Assy Take Away
22 – Plate Earth T A
23 – Bracket Spring Nudger
24 – Cover Harness SNS
25 – Shaft Gear
26 – Gear OPT Feeder 550
27 – Spring Nudger OPT
