Xerox WorkCentre 3655 - PL 11.4 Option Feeder 550 (4;4)

5/2014
5-16
WorkCentre 3655 Multifunction Printer
PL 11.4
Initial Issue - Xerox Internal Use Only
Parts Lists

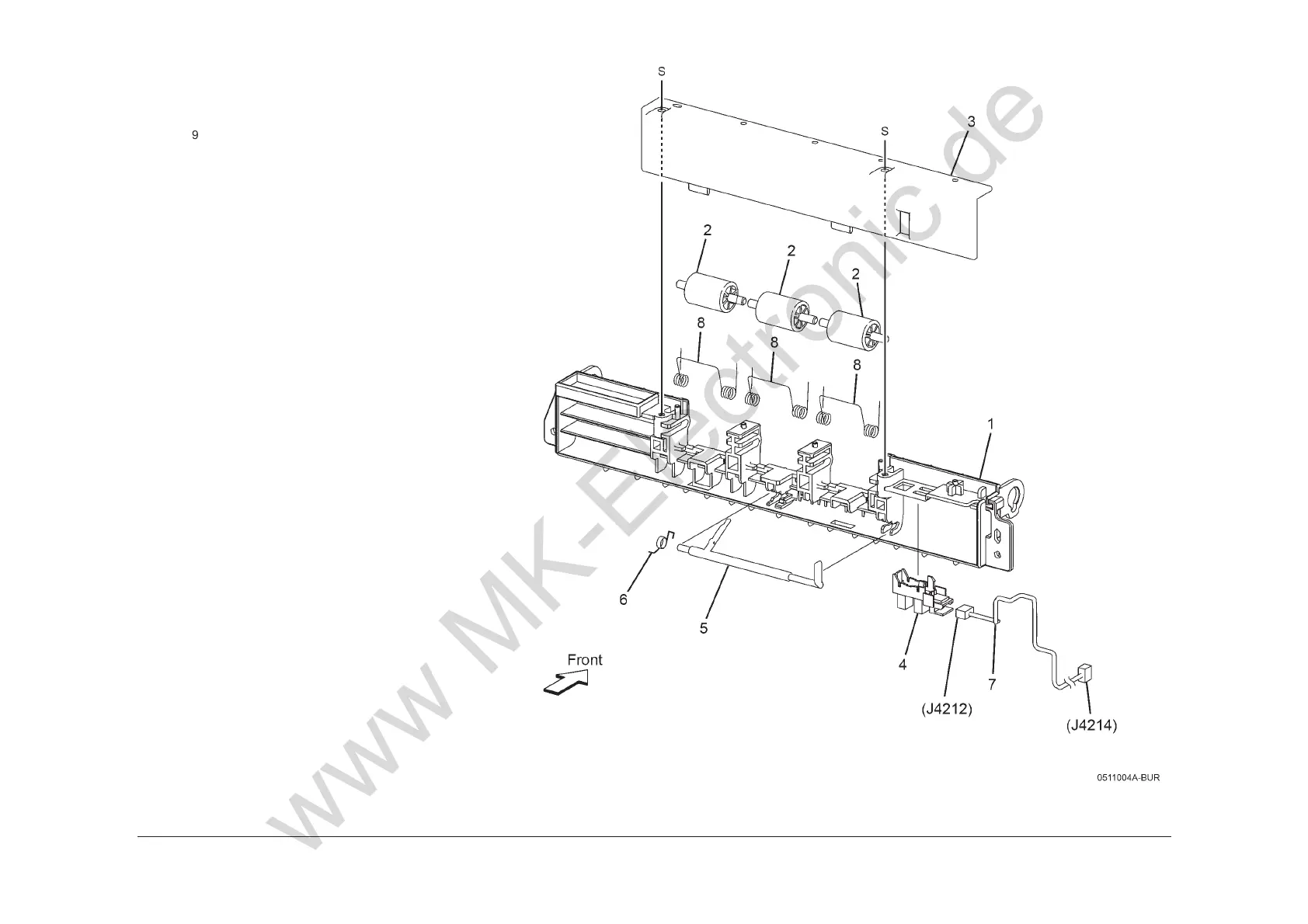

PL 11.4 Option Feeder 550 (4/4)
Item Part Description
1
– Chute Pinch 550
2 – Roll Pinch TA OP
3 – Cover Chute
4 930W00123 Sensor Photo (Path Sensor)
5 – Actuator PRE REGI
6 – Spring Sensor PRE REGI
7 – Harness Assy OPT REG
8 – Spring Pinch TA OP
