Xerox WorkCentre 3655 - PL 4.1 NOHAD & Links

5/2014
5-7
WorkCentre 3655 Multifunction Printer
PL 4.1
Parts Lists
Initial Issue - Xerox Internal Use Only

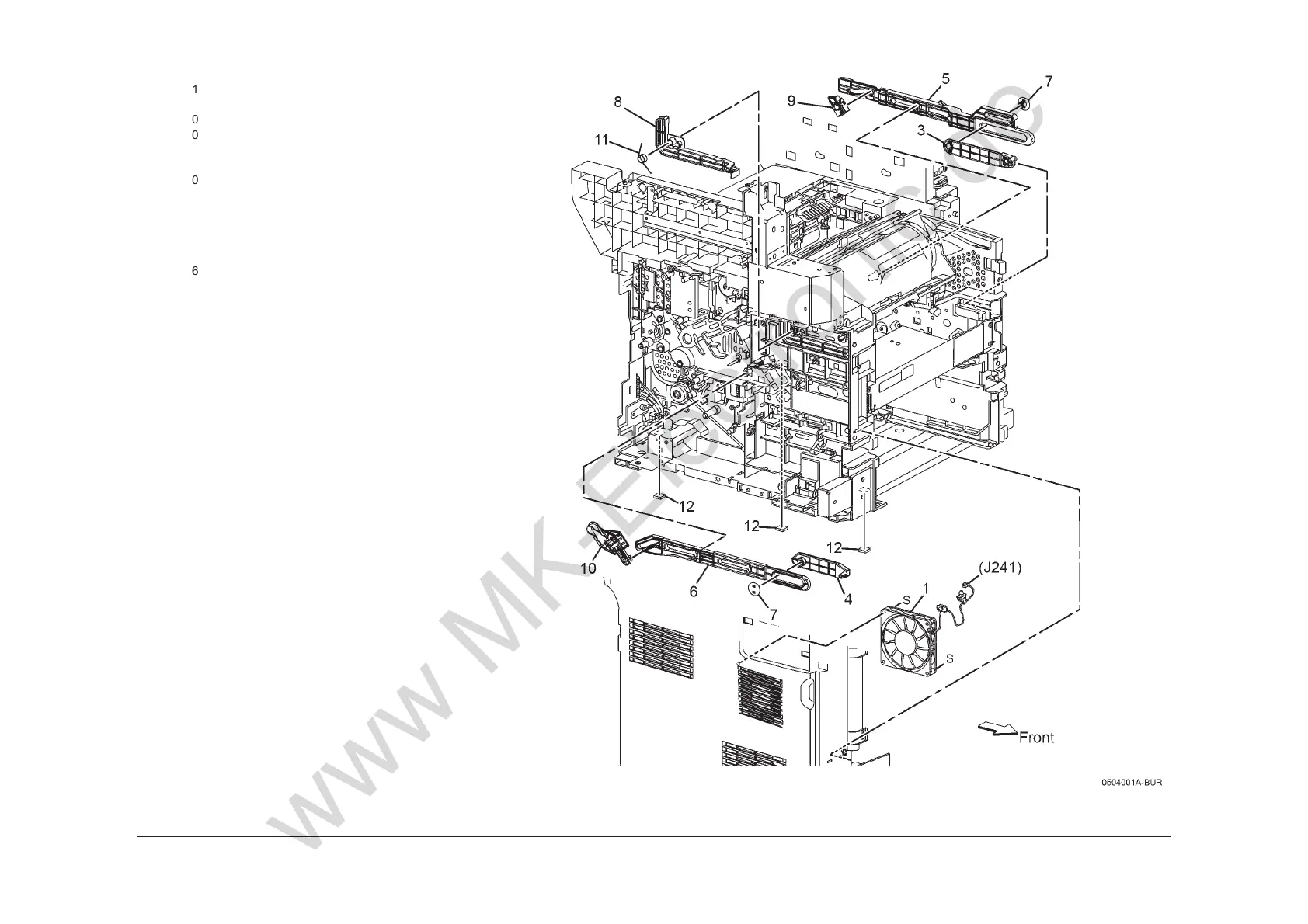

PL 4.1 NOHAD & Links
Item Part Description
1
127K72250 Fan Assembly Main (SCC)
2 – Duct ESS
3 012E18133 Link Front Right
4 012E18143 Link Front Left
5 – Link Shaft Right
6 – Link Shaft Left
7 012E18172 Link Connector
8 – Link Interlock CRU
9 – Stopper Assembly Xero Right
10 – Stopper Assembly Xero Left
11 – Spring Interlock CRU
12 – Foot (p/o item 99)
99 604K77650 Kit Foot Assy (3 pieces)
99 { 12 (3 pieces)
