WorkCentre 3655 Multifunction Printer
PL 13.2
Initial Issue - Xerox Internal Use Only
Parts Lists

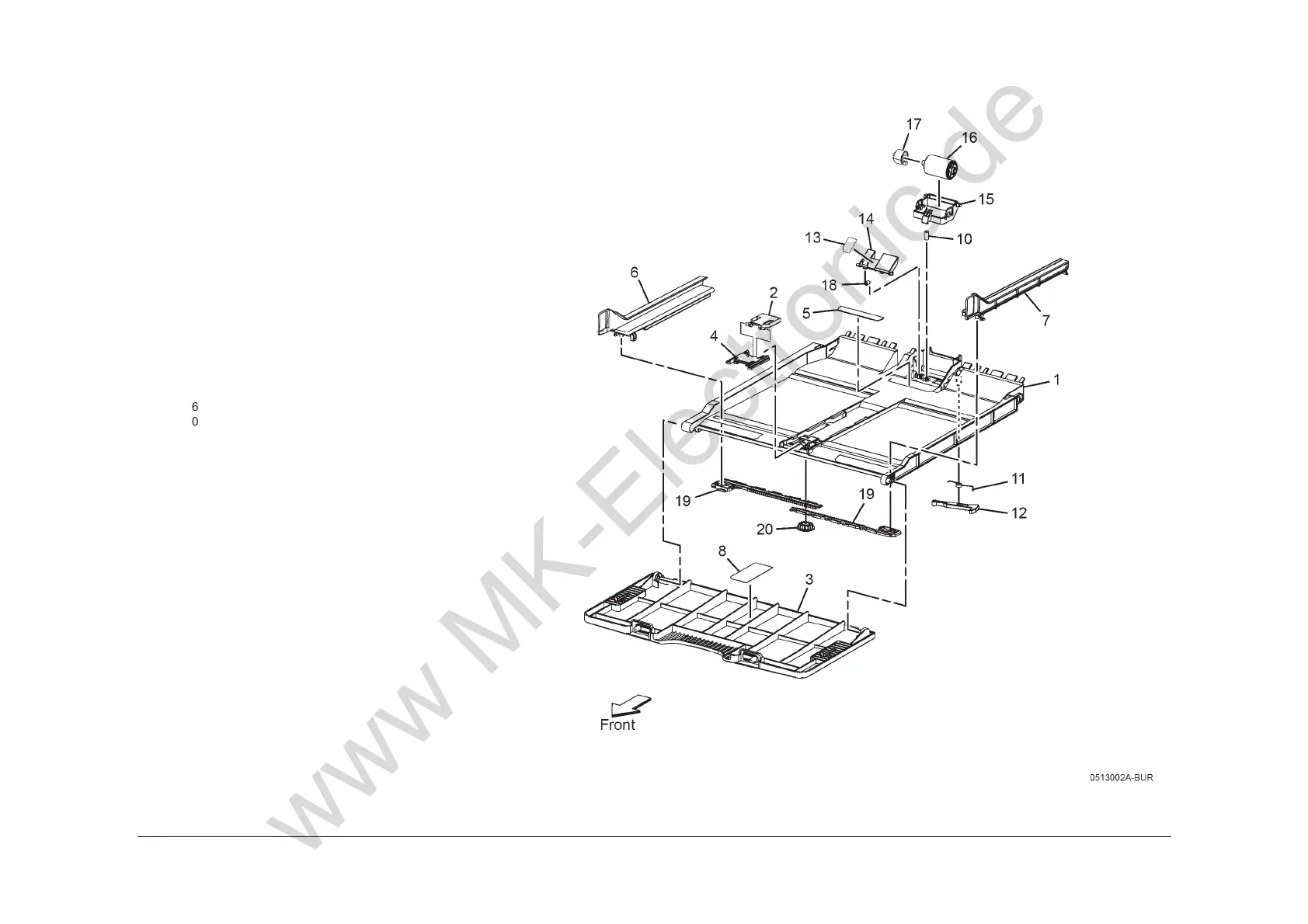

PL 13.2 MSI (2/2)
Item Part Description
1
Tray Base MSI
2 Guide End MSI
3 Cover MSI
4 Holder-End MSII
5 Pad MSI
6 Guide-Side MSI L
7 Guide-Side MSI R
8 --
9 – --
10 Spring-Retard Roll (part of 98)
11 Spring-Stopper Sheet 150
12 Lock-Sheet 150
13 Guide-Retard MSI Mylar
14 Stopper-Sheet 150
15 Holder-Retard Roll (part of 98)
16 Roll Assy-Retard Roll (part of 98)
17 Clutch Assy Friction (part of 98)
18 Spring-MSI Paper Stopper Mid
19 Rack Guide Side
20 Gear Pinion
96 --
98 604K78370 Kit Retard Roll MSI Assy
99 050K72540 Tray Assy MSI (ACO)
98 { 10, 15-17
99 { 1-20
