Xerox WorkCentre 3655 - PL 5.1 Dispenser

5/2014
5-8
WorkCentre 3655 Multifunction Printer
PL 5.1
Initial Issue - Xerox Internal Use Only
Parts Lists

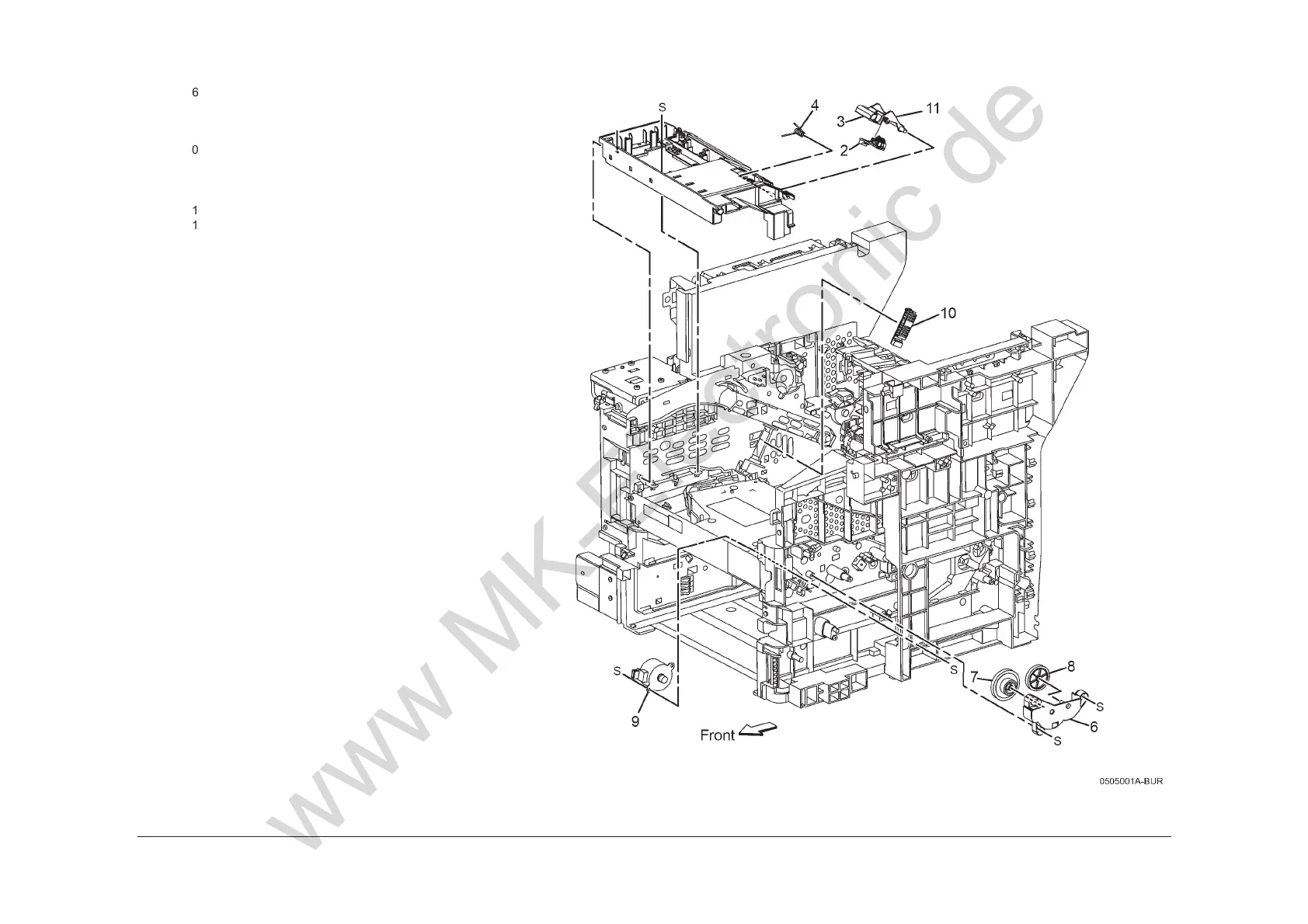

PL 5.1 Dispenser
Item Part Description
– Connector Assy CRUM (p/o item 1)
3 – Housing CRUM (p/o item 1)
4 – Spring CRUM (p/o item 1)
5 007K18413 Drive Assy Disp
6 – (SCC) Housing Disp Drive (p/o item 5)
7 – Gear Idler Motor (p/o item 5)
8 – Gear Output (p/o item 5)
9 127K52160 (SCC) Motor Disp N
10 116K91040 Connector Assy, Xerographic
11 – CRUM Assy
1 { 2, 3, 4, 11
2
1 604K77290 Kit CRUM Assy
5 { 6-8
